4110319C91
HUB, REAR WHEEL, R ALUMINUM 10-285 PS PLUS P, ALUMINUM RIM ANTILOCK BRAKE SYSTEM (ABS) (ANTILOCK BRAKE SYSTEM (ABS)) BEN ADB
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$989.95
$1,187.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HUB, REAR WHEEL, R ALUMINUM 10-285 PS PLUS P, ALUMINUM RIM ANTILOCK BRAKE SYSTEM (ABS) (ANTILOCK BRAKE SYSTEM (ABS)) BEN ADB
Weight
95 lbs

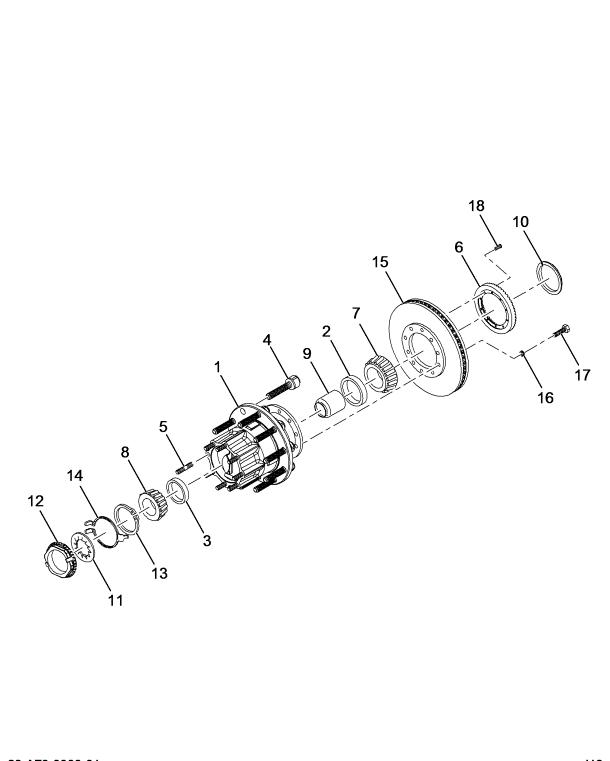

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HUB, MACHINED | 1 | 2520221C1 |
| SEAL, SCOT XL | 1 | CR47691 |
| WASHER, LOCK- SPINDLE NUT | 1 | 2510676C1 |
| NUT, SPINDLE | 1 | 2510675C1 |
| RING, SNAP- DOUBLE WIND | 1 | 2510674C1 |
| SNAP RING RETAINER | 1 | 2517395C1 |
| SHIM, HUB ROTOR | 20 | 2605112C1 |
| SCREW C0LLAR AND RETAINER ASSEMBLY | 10 | 2605113C91 |
| SCREW, SS 8-32 UNF | 10 | 2520222C1 |
| CUP, BEARING INBOARD | 1 | 2518408C1 |
| CUP, BEARING OUTBOARD | 1 | 2518410C1 |
| STUD WHEEL HUB M22X1.5MMX4.78L | 10 | 2604893C1 |
| STUD, FLANGE AXLE 5/8-11 X 5/8-18 Y | 8 | 2597820C1 |
| RING BK EXCITER | 1 | 2603514C1 |
| CONE BEARING INBOARD | 1 | 2518409C1 |
| CONE BEARING OUTBOARD | 1 | 2518411C1 |
| SPACER, BEARING | 1 | 2510677C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
