3758116C91

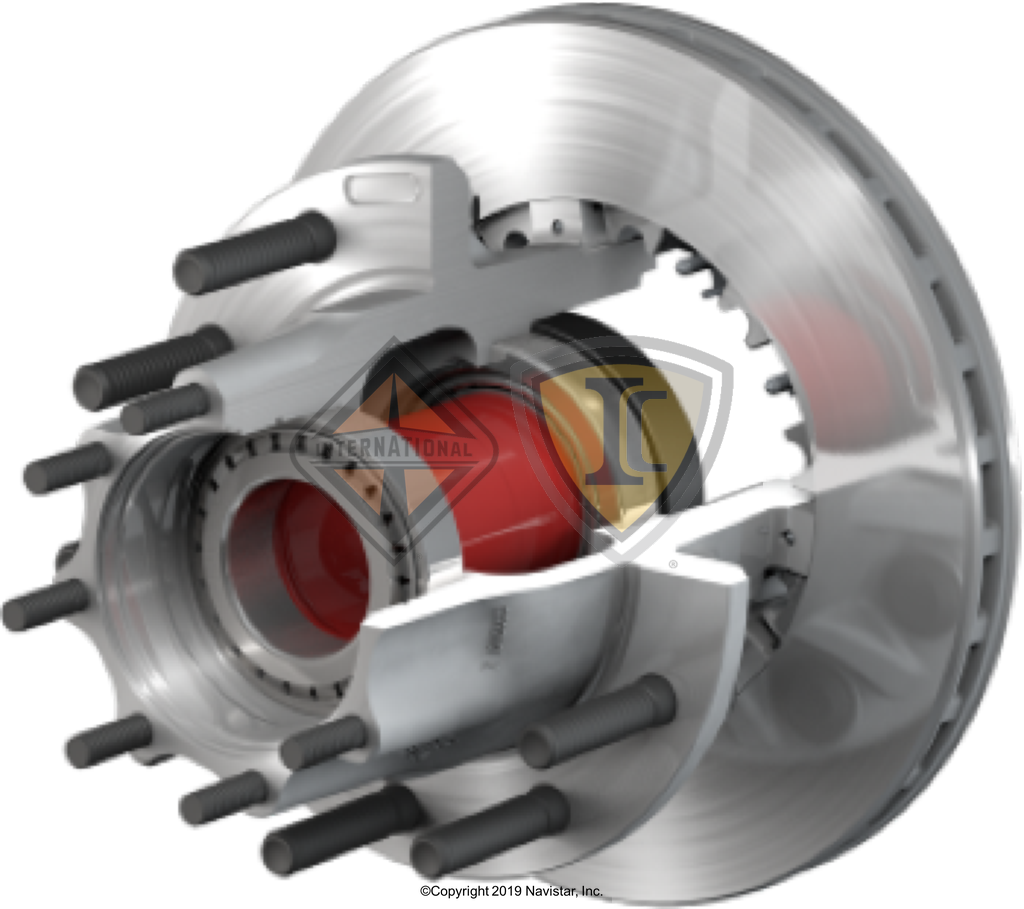

HUB, REAR WHEEL WITH ROTOR, R ALUMINUM 10- 285 P /A, STEEL RIM ANTILOCK BRAKE SYSTEM (ABS) DISC
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,949.95
$2,339.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HUB, REAR WHEEL WITH ROTOR, R ALUMINUM 10- 285 P /A, STEEL RIM ANTILOCK BRAKE SYSTEM (ABS) DISC
Weight
132 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SCREW ,#8-32 UNF,TRUSS HEAD SS | 10 | 2604894C1 |
| RING BK EXCITER | 1 | 2603514C1 |
| CUP, INNER BEARING | 1 | TMNP363298 |
| CUP, OUTER BEARING | 1 | TMNP053874 |
| SHIM, HUB ROTOR | 20 | 2605112C1 |
| SCREW C0LLAR AND RETAINER ASSEMBLY | 10 | 2605113C91 |
| BEARING, CONE OUTER WHEEL | 1 | TMNP840302 |
| SPACER, WHEEL BEARING | 1 | 2588661C1 |
| SEAL, SCOT XL | 1 | CR47691 |
| BEARING, ROLLER INNER WHEEL | 1 | TMNP034946 |
| STUD WHEEL MOUNTING M22X1.5MMX3.82LG | 10 | 2603508C1 |
| KIT, ROTOR W/HRDWARE | 1 | 2642543C91 |
| STUD, AXLE SHAFT FLANGE 5/8" X 3.93" | 8 | 1699927C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
