3748352C91

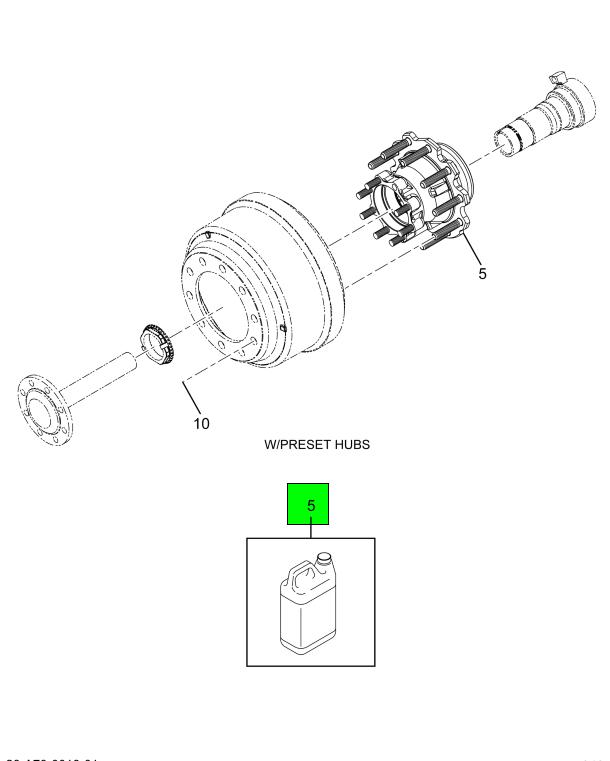

HUB, REAR WHEEL, R IRON 10- 285 ANTILOCK BRAKE SYSTEM (ABS) TIK, STEEL RIM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$234.95
$281.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
018-003-000
OEM Description
HUB, REAR WHEEL, R IRON 10 - 285 ANTILOCK BRAKE SYSTEM TIK, STEEL RIM

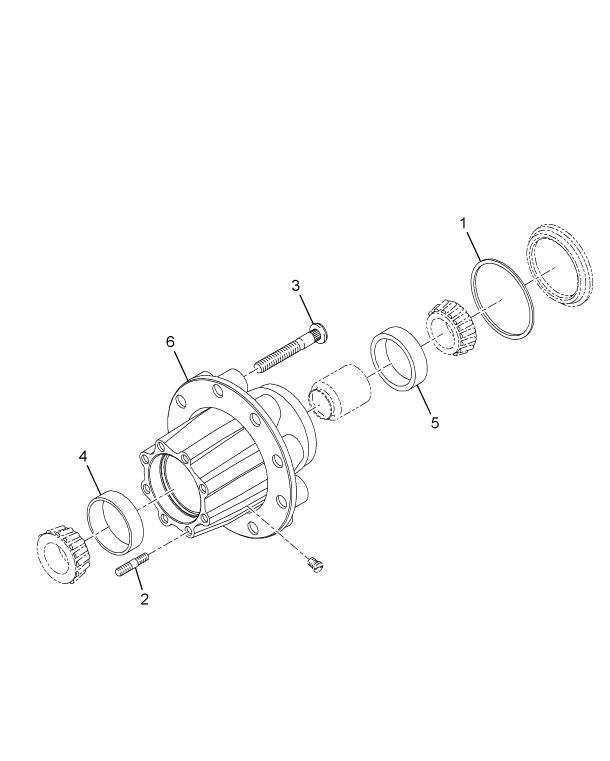

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| RING, EXCITER REAR | 1 | 2503654C1 |
| STUD, FLANGE AXLE 5/8-11 X 5/8-18 Y | 8 | 2597820C1 |
| STUD, WHEEL M22 X 1.5MM X 3.92 LONG Y | 10 | 2597039C1 |
| CUP, OUTER BEARING | 1 | TMNP053874 |
| CUP, INNER BEARING | 1 | TMNP363298 |
| HUB, MACHINED-10001387 CASTING | 1 | 2614606C1 |
CROSS REFERENCES
- CONS ME 10041152
- CONS ME 10041152
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
