2601403C91
HUB, DISC WHEEL STEEL FRONT
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$369.95
$443.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HUB FRT DISC WHL F12 STL 285
Weight
53 lbs

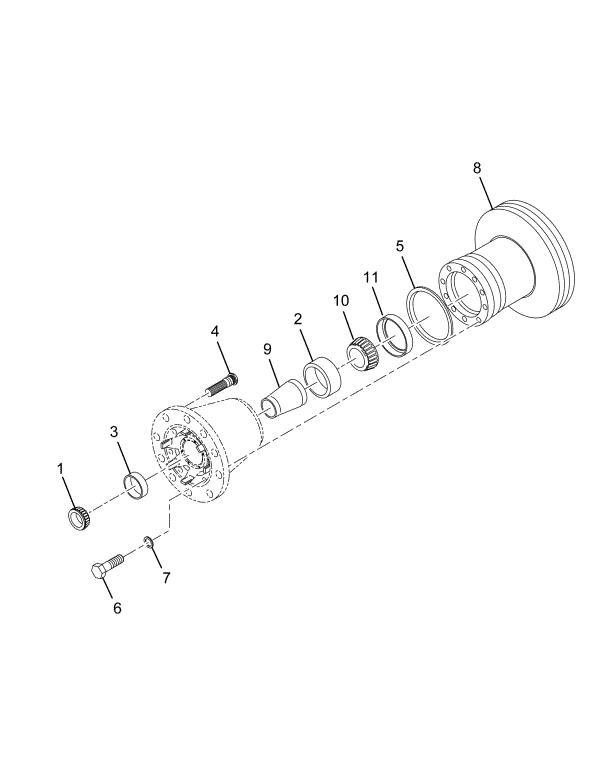

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BEARING CONE /ROLLERS OUTER | 1 | HYT3782 |
| BEARING CONE /ROLLERS | 1 | HYTHM212049 |
| SEAL, AXLE SCOTSEAL PLUS XL FRONT | 1 | CR35058 |
| BEARING CUP | 1 | HYTHM212011 |
| BEARING CUP | 1 | HYT3720 |
| STUD, WHEEL M22 X 1.5MM X 3.46 LONG Y | 10 | 2596993C1 |
| RING, EXCITER BRAKE Y | 1 | 2596995C1 |
| BOLT, HEXAGON HEAD | 10 | 2596467C1 |
| WASHER, FLAT PLATED | 10 | 2596468C1 |
| ROTOR, BRAKE HUB | 1 | 2516321C91 |
| ROTOR, BRAKE HUB | 1 | 2601404C1 |
| SPACER, WHEEL BEARING | 1 | 2588659C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
