2593499C91
HUB, WHEEL WITH CUPS AND STUD REAR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$319.95
$383.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HUB, WHEEL WITH CUPS AND STUD REAR

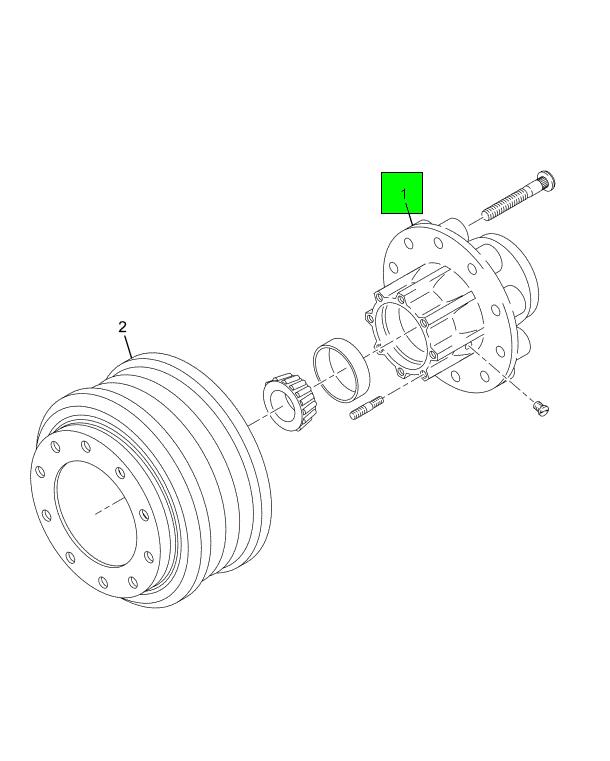

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SPACER, WHEEL BEARING | 1 | 2588661C1 |
| RING, EXCITER REAR | 1 | 2503654C1 |
| BEARING CUP INNER PRE- ADJUSTER 1/2T | 1 | HYT592APS |
| BEARING CONE /ROLLERS INCH 1/2T | 1 | HYT594APS |
| BEARING CUP OUT PRE- ADJUSTER 1/2T | 1 | HYTSET430 |
| BEARING CUP OUT PRE- ADJUSTER 1/2T | 1 | HYT572PS |
| BEARING CONE /ROLLERS OUT 1/2T | 1 | HYT580PS |
| STUD, WHEEL M22 X 1.5 X 4.28 | 10 | 2589462C1 |
| STUD, DRIVE | 8 | 2500634C1 |
| SEAL, DRIVE AXLE SCOTSEAL PLUS XL | 1 | CR47692 |
| PLUG, HUB LUBRICATION W/O-RING | 1 | 3604465C91 |
CROSS REFERENCES
- CONS ME 10004001
