RDL20145488
DIFFERENTIAL, FORWARD REAR 4.88:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
DIFFERENTIAL, FORWARD REAR 4.88:1

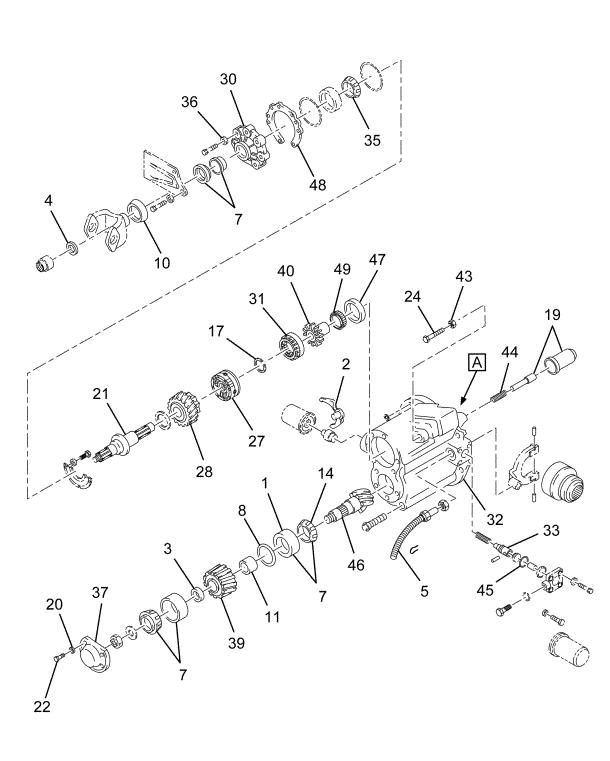

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BEARING CUP | 1 | 389598C1 |
| SEAL, OIL INPUT SHAFT | 1 | 2590276C1 |
| SPACER, HELICAL GEAR BEARING | 1 | 1670502C1 |
| BEARING CONE DIFFERENTIAL CASE | 1 | 2504872C91 |
| BEARING, CONE DIFFERENTIAL SIDE | 1 | 2504870C91 |
| CASE DIFF ASM & NEST ASSY | 1 | 2611284C1 |
| BEARING, CONE PINION | 1 | 2500177C91 |
| BEARING, CONE PINION | 1 | FP72212C |
| BEARING, CONE PINION | 1 | 310968C91 |
| BOLT DIFFERENTIAL BEARING LOCK ADJUSTING | 2 | 2586505C1 |
| BEARING CUP DIFFERENTIAL SIDE | 1 | 2504873C1 |
| RING, SNAP | 1 | 1670527C1 |
| BEARING, CUP DIFFERENTIAL SIDE | 1 | 2504871C1 |
| YOKE, SHIFT INNER AXLE DIFFERENT | 1 | 1670490C91 |
| WASHER, FLAT M10 | 5 | 1658423C1 |
| SHAFT, INPUT WITH NUT | 1 | 2601386C91 |
| BOLT, PINION BEARING CAGE M10 X 45MM | 5 | 1696229C1 |
| BOLT | 1 | 1670304C1 |
| BOLT 12 MM X 45 MM | 7 | 1697666C1 |
| CASE, DIFFERENTIAL W/PINION GEARS BOLTED | 1 | 2503466C91 |
| GEAR, HELICAL DRIVE AND FORWARD SIDE | 1 | 1670532C1 |
| BEARING CONE&ROLLERS | 1 | FPH715334 |
| BEARING CONE&ROLLERS | 1 | 879767R91 |
| SET, BEARING SPACER DIFFERENTIAL PINION GEAR | 1 | 1694539C91 |
| CARRIER, DIFFERENTIAL INPUT W/CUP | 1 | 1696386C91 |
| COLLAR, CLUTCH INTERMEDIATE AXLE DIFFERENTIAL | 1 | 2503468C1 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 2503473C91 |
| ADJUSTER DIFFERENTIAL BEARING LEFT AND RIGHT | 1 | 1670522C1 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | 1685251C1 |
| BEARING, CONE INPUT SHAFT | 1 | TMJM511945 |
| BEARING, CONE INPUT SHAFT | 1 | FPJM511945 |
| WASHER, FLAT | 7 | 2500348C1 |
| COVER, BEARING CAGE DRIVE PIN GEAR | 1 | 1670299C1 |
| GEAR HELICAL DRIVEN | 1 | 2608187C1 |
| NUT AND WASHER | 1 | KIT2826 |
| GEAR, SIDE INTERMEDIATE AXLE DIFFERENTIAL FRONT | 1 | 1670523C1 |
| SEALANT, SILCONE RTV 3 OUNCES | 1 | 2297A7021 |
| NUT, SHIFTER SHAFT POWER DIVIDER LOCK | 1 | 1696227C1 |
| SPRING, AXLE SHIFT PUSH ROD | 1 | 867718R1 |
| RING, O | 1 | 2599737C1 |
| GEAR SET, RING AND PINION DIFFERENTIAL 4.88:1 | 1 | 1670369C91 |
| CUP, BEARING | 1 | FPJLM710910 |
| CUP, BEARING | 1 | 630695C1 |
| PART | 1 | KIT2886 |
| BEARING, CONE | 1 | TMJLM710949C |
| BEARING, CONE | 1 | 630694C91 |
| GEAR SET, SIDE AND PINION DIFFERENTIAL | 1 | 1670538C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
