ETN0514374
DIFFERENTIAL KIT, WHEEL WITH SIDE GEAR S130
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$439.95
$527.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
027-015-000
OEM Description
DIFFERENTIAL KIT, WHEEL WITH SIDE GEAR S130
Weight
17.15 lbs

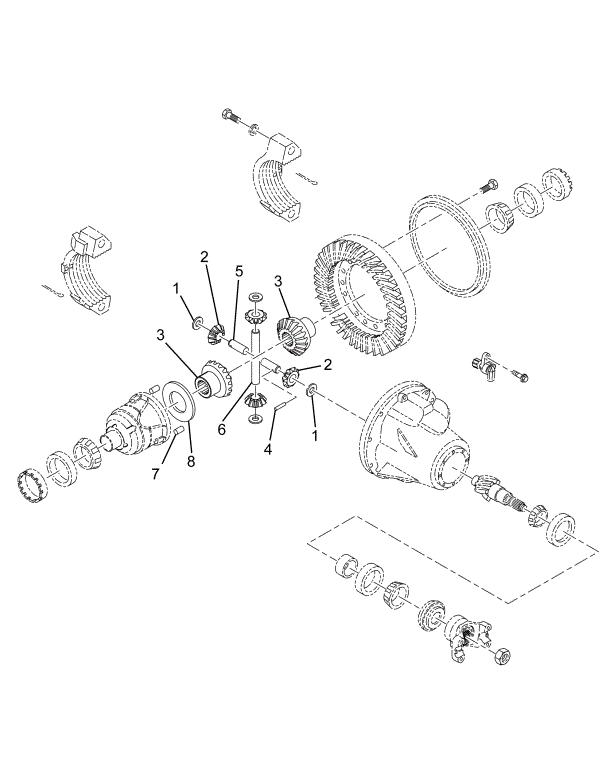

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | ETN0129305 |
| GEAR, PINION DIFFERENTIAL | 4 | DS133761 |
| GEAR, PINION DIFFERENTIAL | 4 | ETN0127364 |
| GEAR, DIFFERENTIAL SIDE S130 | 2 | ETN0132807 |
| PIN, DOWEL | 2 | ETN0130605 |
| PIN, SHAFT DIFFERENTIAL S130 | 2 | ETN0130768 |
| PIN, SHAFT DIFFERENTIAL S130 | 1 | ETN0130767 |
| PIN, DOWEL | 1 | ETN0132821 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 1 | ETN0127386 |
CROSS REFERENCES
- DANA 0514374
- DANA 0514374
- DANA 514374
- DANA 514374
- FORDPRD 8C4O 4599BA
- FORDSVC 8C4Z 4215B
- GMVISTA 19406103
- GMVISTA 19406103
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
