ETN0513862

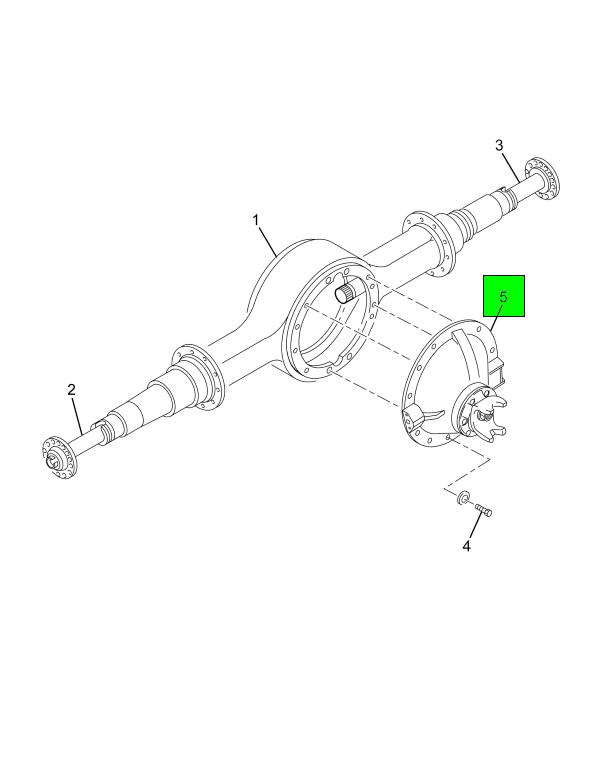

DIFFERENTIAL ASSEMBLY REAR 19060D 6.17
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$3,299.95
$3,959.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DIFFERENTIAL ASSEMBLY REAR 19060D 6.17
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | ETN0510017 |
| GEAR SET REAR REAR DIFFERENTIAL RING AND PINION 6.17:1 | 1 | ETN0513361 |
| BOLT, DIFFERENTIAL CASE | 16 | ETN0129686 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 2 | ETN0127386 |
| GEAR, SIDE DIFFERENTIAL 39 SPLINE | 2 | ETN0127367 |
| SPIDER, DIFFERENTIAL | 1 | ETN0127359 |
| GEAR, PINION DIFFERENTIAL | 4 | DS133761 |
| GEAR, PINION DIFFERENTIAL | 4 | ETN0127364 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | ETN0129305 |
| BOLT, DIFFERENTIAL CASE | 12 | ETN0128619 |
| BEARING, CONE DIFFERENTIAL | 1 | FP497 |
| BEARING, CONE DIFFERENTIAL | 1 | ETN0027813 |
| WASHER, BOLT CARRIER BEARING CAP | 4 | ETN0210288 |
| CUP, BEARING DIFFERENTIAL | 1 | FP493 |
| CUP, BEARING DIFFERENTIAL | 1 | ETN0009803 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | ETN0128616 |
| BEARING, ROLLER PILOT PINION | 1 | ETN0127485 |
| BEARING, CONE PINION | 1 | FP72212C |
| BEARING, CONE PINION | 1 | ETN0014218 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | ETN0129768 |
| BOLT, PINION BEARING CAGE | 6 | DS210115 |
| BOLT, PINION BEARING CAGE | 6 | ETN0210115 |
| CUP, BEARING PINION | 1 | FP55437 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 4 | ETN0210095 |
| BEARING, CONE PINION | 1 | FP55200C |
| SEAL, OIL PINION AND INNER SHAFT | 1 | DS127591 |
| SEAL, OIL PINION AND INNER SHAFT | 1 | ETN0127591 |
| NUT, MOUNTING COMPANION FLANGE M36 X 1.5-4H | 1 | ETN0127589 |
| CLUTCH, CURVIC GEAR FIXED | 1 | ETN0128627 |
| RING, SNAP CURVIC CLUTCH | 1 | ETN0129433 |
| GEAR, SLIDING CURVIC CLUTCH DIFFERENTIAL | 1 | ETN0127210 |
| SPRING, COMPRESSION SHIFT FORK | 1 | ETN0128614 |
| YOKE, SHIFT DIFFERENTIAL LOCK | 1 | ETN0217465 |
| PIN, ROLLER DIFFERENTIAL SHIFT FORK | 1 | ETN0210020 |
| ROD, SHIFT FORK PUSH DIFFERENTIAL LOCK | 1 | ETN0128617 |
| PIN, COTTER | 2 | ETN0090873 |
| DRIVER, PISTON | 1 | DS132489 |
| DRIVER, PISTON | 1 | ETN0128640 |
| SCREW, SET SHIFT FORK | 1 | ETN0128618 |
| PISTON, AIR SHIFT CYLINDER | 1 | ETN0128624 |
| O-RING PISTON | 1 | ETN0210180 |
| GASKET PISTON COVER | 1 | DS128643 |
| GASKET PISTON COVER | 1 | ETN0128643 |
| COVER, PISTON | 1 | ETN0129425 |
| BOLT, SHIFT CYLINDER MOUNTING | 2 | ETN0128744 |
| BOLT ,HH CTL ADJUSTER | 1 | DS129946 |
| BOLT ,HH CTL ADJUSTER | 1 | ETN0128642 |
| WASHER NYLON SWITCH | 1 | ETN0129034 |
| SWITCH, DIFFERENTIAL LOCK INDICATOR | 1 | ETN0129035 |
| ADJUSTER DIFFERENTIAL BEARING LEFT OR RIGHT | 1 | ETN0129128 |
| CUP, BEARING DIFFERENTIAL | 1 | FP563 |
| CUP, BEARING DIFFERENTIAL | 1 | ETN0090943 |
| BEARING, CONE DIFFERENTIAL | 1 | FP567 |
| BEARING, CONE DIFFERENTIAL | 1 | ETN0006082 |
| NUT, BOLT DIFFERENTIAL CASE | 16 | ETN0126216 |
