ETN0513655

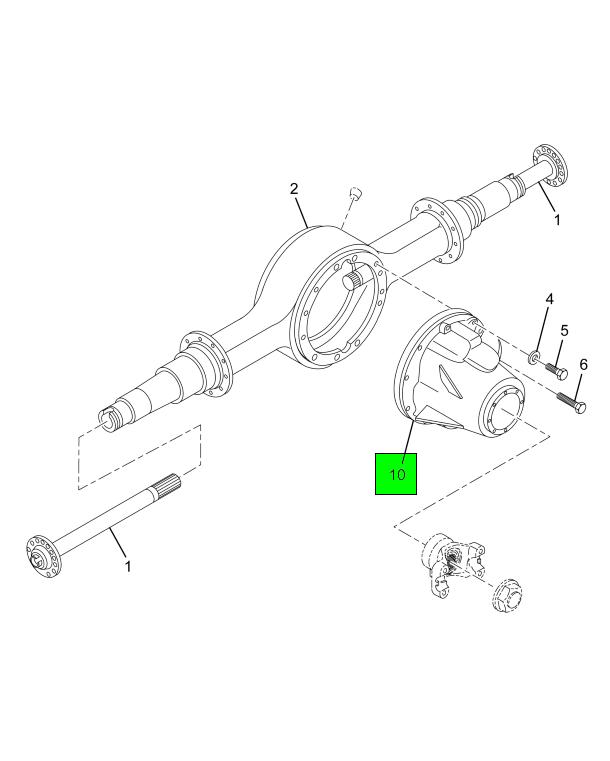

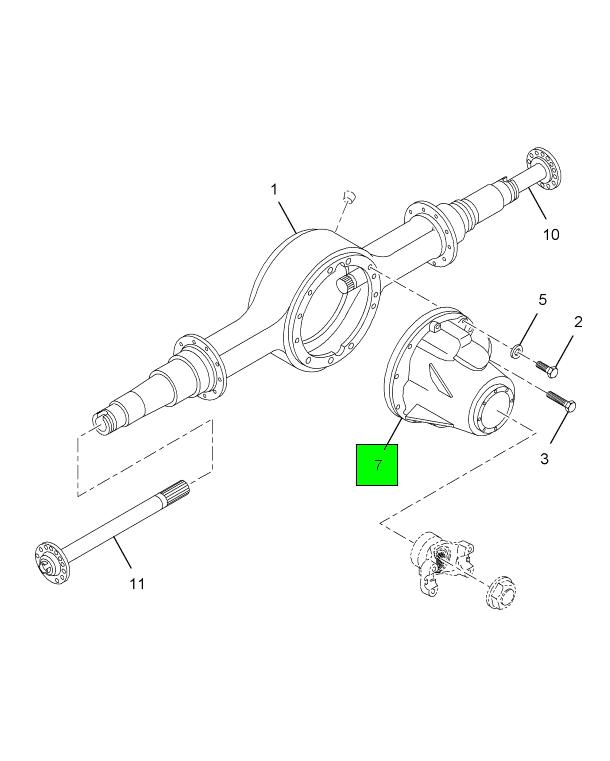

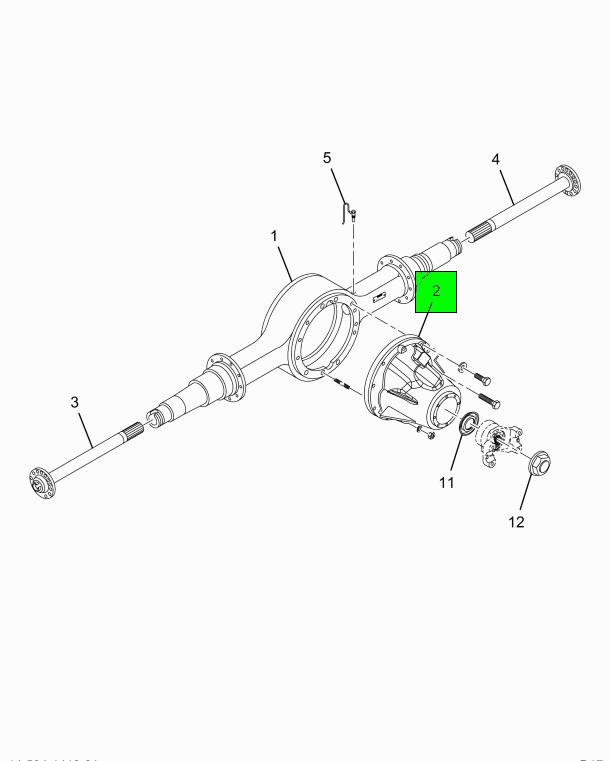

S130FR Assembly 4.56 Differential
Dana Spicer
DISCONTINUED
This truck part is made by Dana Spicer. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DIFFERENTIAL, ASSEMBLY S130FR 4.56
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| NUT PIN BEARING CAGE CHECK | 1 | ETN0130542 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | DS511860 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | ETN0511860 |
| PIN, COTTER | 2 | ETN0090873 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 6 | DS130596 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 6 | ETN0130596 |
| WASHER BOLT COVER | 6 | DS128415HX |
| WASHER BOLT COVER | 6 | ETN0128415 |
| SWITCH, SENSOR ANTILOCK BRAKE SYSTEM (ABS) (ANTILOCK BRAKE SYSTEM (ABS)) S110/130 | 1 | ETN2006251 |
| BOLT, SWITCH | 1 | DS486721 |
| BOLT, SWITCH | 1 | ETN0486721 |
| RING ANTILOCK BRAKE SYSTEM (ABS) (ANTILOCK BRAKE SYSTEM (ABS)) EXCITER | 1 | ETN0130602 |
| BOLT, GEAR | 10 | ETN0132820 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | ETN0129305 |
| GEAR, PINION DIFFERENTIAL | 4 | DS133761 |
| GEAR, PINION DIFFERENTIAL | 4 | ETN0127364 |
| GEAR, DIFFERENTIAL SIDE S130 | 2 | ETN0132807 |
| PIN, DOWEL | 2 | ETN0130605 |
| PIN, SHAFT DIFFERENTIAL S130 | 2 | ETN0130768 |
| PIN, SHAFT DIFFERENTIAL S130 | 1 | ETN0130767 |
| PIN, DOWEL | 2 | ETN0132821 |
| SEAL, OIL PINION AND INNER SHAFT | 1 | DS127591 |
| SEAL, OIL PINION AND INNER SHAFT | 1 | ETN0127591 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 1 | ETN0127386 |
| BEARING | 1 | FP55200C |
| BEARING | 1 | ETN0012496 |
| BEARING | 1 | DS012495 |
| BEARING | 1 | ETN0012495 |
| BEARING, CUP PINION | 1 | FP72487 |
| BEARING, CONE PINION CAGE | 1 | DS129562 |
| BEARING, CONE PINION CAGE | 1 | ETN0129562 |
| KIT, GEAR SET 4.56 | 1 | ETN0514114 |
