ETN0513413
DIFFERENTIAL 3.55
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$7,799.95
$9,359.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
027-015-000
OEM Description
DIFFERENTIAL-ASM SS461 3.55
Weight
515.07 lbs

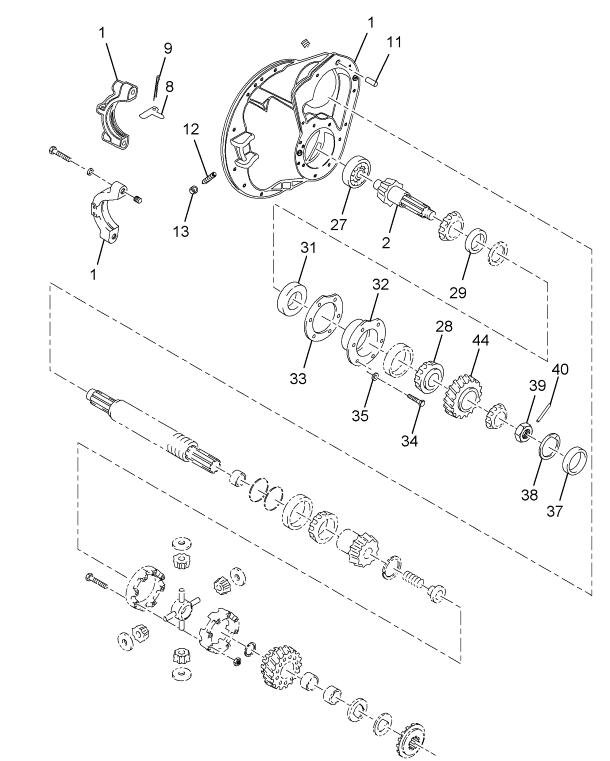

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | ETN0106710 |
| CARRIER, INPUT BEARING W/CUP | 1 | 486772C91 |
| PIN, DOWEL CARRIER BEARING CAP | 2 | ETN0007641 |
| BOLT, ADJUSTING DRIVE GEAR THRUST | 1 | ETN0126193 |
| NUT DRIVE GEAR ADJUSTABLE SCREW | 1 | ETN0210184 |
| ADJUSTER | 1 | ETN0039448 |
| CUP, BEARING | 1 | DS019529 |
| CUP, BEARING | 1 | ETN0019529 |
| BEARING, CONE | 1 | DS027666 |
| BEARING, CONE | 1 | ETN0027666 |
| BOLT | 16 | DS067586 |
| BOLT | 16 | ETN0067586 |
| NUT | 16 | DS060600 |
| NUT | 16 | ETN0060600 |
| GEAR SET, RING AND PINION DIFFERENTIAL 3.55:1 | 1 | ETN0122667 |
| CONE | 1 | FPJM511946 |
| CONE | 1 | ETN0098387 |
| BOLT | 12 | ETN0088503 |
| GEAR, SIDE DIFFERENTIAL | 2 | ETN0093401 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 2 | ETN0027274 |
| GEAR, SPIDER DIFFERENTIAL | 4 | ETN0086780 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | ETN0086781 |
| SPIDER, DIFFERENTIAL | 1 | ETN0086778 |
| BEARING, ROLLER PINION REAR /REAR | 1 | ETN0126187 |
| BEARING, CONE PINION CAGE | 2 | DS129562 |
| BEARING, CONE PINION CAGE | 2 | ETN0129562 |
| SPACER | 1 | ETN0078904 |
| LOCK WASHER | 10 | ETN0090417 |
| BOLT | 5 | ETN0113324 |
| CUP, BEARING PINION CAGE | 2 | ETN0129561 |
| CAGE, PINION DRIVE GEAR BEARING | 1 | ETN0078914 |
| BOLT | 6 | ETN0062158 |
| WASHER, STUD BEARING CAGE PINION GEAR | 6 | ETN0037207 |
| COVER | 1 | ETN0107275 |
| COVER, DIFFERENTIAL CARRIER | 1 | 574272C1 |
| BEARING, BALL | 1 | ETN0078916 |
| RING, SNAP | 1 | ETN0078937 |
| NUT PINION SHAFT | 1 | ETN0126182 |
| BOLT | 9 | 25312R1 |
| BOLT | 1 | ETN0009309 |
| BOLT | 9 | ETN0090069 |
| PIN, SPRING WINDING LEVER | 1 | ETN0118807 |
| GEAR | 1 | ETN0098389 |
| INPUT DR SHAFT | 1 | ZBP0119992 |
| BEARING | 1 | ETN0098384 |
| HELICAL GEAR- PINION | 1 | ZBP0119997 |
| NUT INPUT SHAFT | 1 | ETN0126155 |
| WASHER, FLAT INPUT SHAFT | 1 | ETN0126242 |
| SEAL, OIL INPUT SHAFT | 1 | ETN0210736 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER RIGHT | 2 | ZBP0014275 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER RIGHT | 2 | ETN0014275 |
| PIN, COTTER 1/4" X 1-1/4" | 2 | 103419 |
CROSS REFERENCES
- DANA 0513413
- DANA 0513413
- DANA 513413
- DANA 513413
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
