ETN0513326
DIFFERENTIAL, REAR S170N 7.17 NS
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$4,999.95
$5,999.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DIFFERENTIAL, REAR S170N 7.17 NS

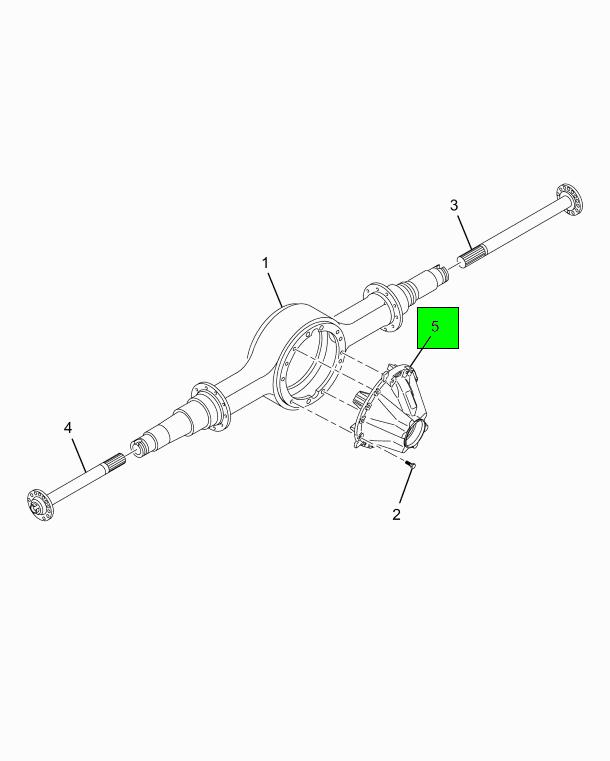

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| KIT, R/S170 CARRIER WITH CAP | 1 | ETN0513999 |
| CASE, DIFFERENTIAL PLAIN HALF | 1 | ETN0131478 |
| BOLT HEXAGON HEAD CAP SCREW | 16 | ETN0131473 |
| DIFFERENTIAL ASSEMBLY, S170/190 | 1 | ETN0131882 |
| BEARING PINION REAR /REAR | 1 | ETN0129947 |
| KIT, PINION GEAR 7.17 | 1 | ETN0513933 |
| BEARING, CONE INNER PINION | 1 | DS139968 |
| BEARING, CONE INNER PINION | 1 | ETN0131050 |
| CUP, BEARING INNER PINION | 2 | ETN0131051 |
| BOLT BEARING CAP | 6 | ETN0131016 |
| BEARING, CONE | 1 | DS139970 |
| BEARING, CONE | 1 | ETN0131052 |
| KIT, PINION SEAL AND NUT | 1 | DS131008K |
| KIT, PINION SEAL AND NUT | 1 | ETN131008K |
| KIT, PINION NUT | 1 | DS131095K |
| KIT, PINION NUT | 1 | ETN131095K |
| CUP, BEARING | 2 | ETN0131044 |
| BEARING, CONE | 2 | ETN0131041 |
| DIFFERENTIAL | 1 | DS10094015 |
| DIFFERENTIAL | 1 | ETN0131339 |
| BREATHER ASSEMBLY, AXLE HOUSING WITH HOSE | 1 | ETN0507162 |
| CASE, DIFFERENTIAL FLANGE HALF | 1 | ETN0131029 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
