ETN0511218
DIFFERENTIAL-R/R 3.90 RS404 41
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,049.95
$2,459.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DIFFERENTIAL, REAR 3.90 14AET,Y

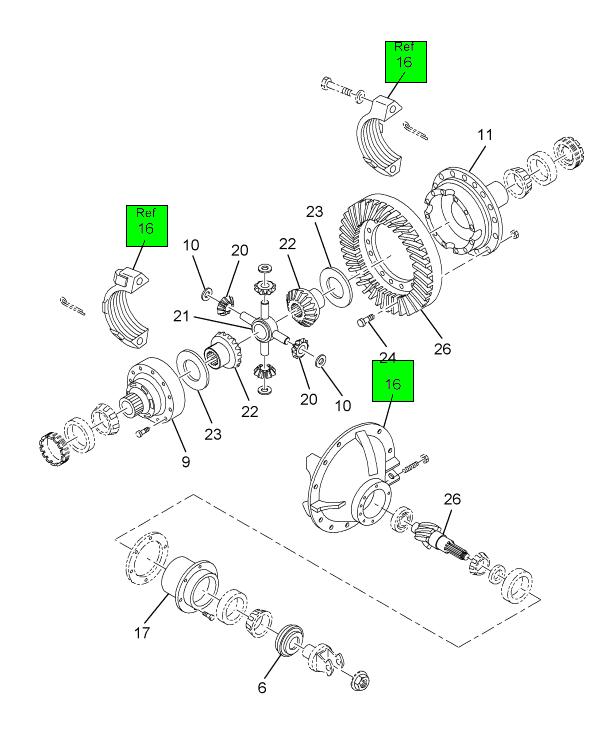

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS RS404 | 1 | ETN0216223 |
| BEARING, CONE DIFFERENTIAL | 1 | FP567 |
| BEARING, CONE DIFFERENTIAL | 1 | ETN0006082 |
| CASE, DIFFERENTIAL 3.36-3.90 RATIO | 1 | ETN0508654 |
| BOLT, DIFFERENTIAL CASE | 12 | ETN0127465 |
| GEAR, SIDE DIFFERENTIAL 41 SPLINE | 2 | ETN0127368 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 2 | ETN0127386 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | ETN0129305 |
| GEAR, PINION DIFFERENTIAL | 4 | DS133761 |
| GEAR, PINION DIFFERENTIAL | 4 | ETN0127364 |
| SPIDER, DIFFERENTIAL | 1 | ETN0127359 |
| NUT, BOLT DIFFERENTIAL CASE | 16 | ETN0126216 |
| WASHER, BOLT CARRIER BEARING CAP | 4 | ETN0210288 |
| BOLT, DIFFERENTIAL CASE | 16 | ETN0129686 |
| BEARING, ROLLER PILOT PINION | 1 | ETN0127485 |
| BEARING, CONE PINION | 1 | FP72212C |
| BEARING, CONE PINION | 1 | ETN0014218 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUP | 1 | ETN0127600 |
| CUP, BEARING PINION | 1 | FP72487 |
| CUP, BEARING PINION | 1 | ETN0014217 |
| BEARING | 1 | DS012495 |
| BEARING | 1 | ETN0012495 |
| BEARING | 1 | FP55200C |
| BEARING | 1 | ETN0012496 |
| BOLT, PINION BEARING CAGE | 6 | DS210115 |
| BOLT, PINION BEARING CAGE | 6 | ETN0210115 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 4 | ETN0210095 |
| SEAL, OIL PINION AND INNER SHAFT | 1 | DS127591 |
| SEAL, OIL PINION AND INNER SHAFT | 1 | ETN0127591 |
| NUT, MOUNTING COMPANION FLANGE M36 X 1.5-4H | 1 | ETN0127589 |
| GEAR SET, RING AND PINION REAR REAR DIFFERENTIAL 3.90:1 | 1 | ETN0211485 |
| PIN, COTTER | 2 | ETN0090873 |
| ADJUSTER DIFFERENTIAL BEARING | 1 | ETN0129130 |
| CUP, BEARING DIFFERENTIAL | 1 | FP493 |
| CUP, BEARING DIFFERENTIAL | 1 | ETN0009803 |
| BEARING, CONE DIFFERENTIAL | 1 | FP497 |
| BEARING, CONE DIFFERENTIAL | 1 | ETN0027813 |
| ADJUSTER DIFFERENTIAL BEARING LEFT OR RIGHT | 1 | ETN0129128 |
| CUP, BEARING PINION | 1 | FP55437 |
| CUP, BEARING DIFFERENTIAL | 1 | FP563 |
| CUP, BEARING DIFFERENTIAL | 1 | ETN0090943 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
