ETN0509623

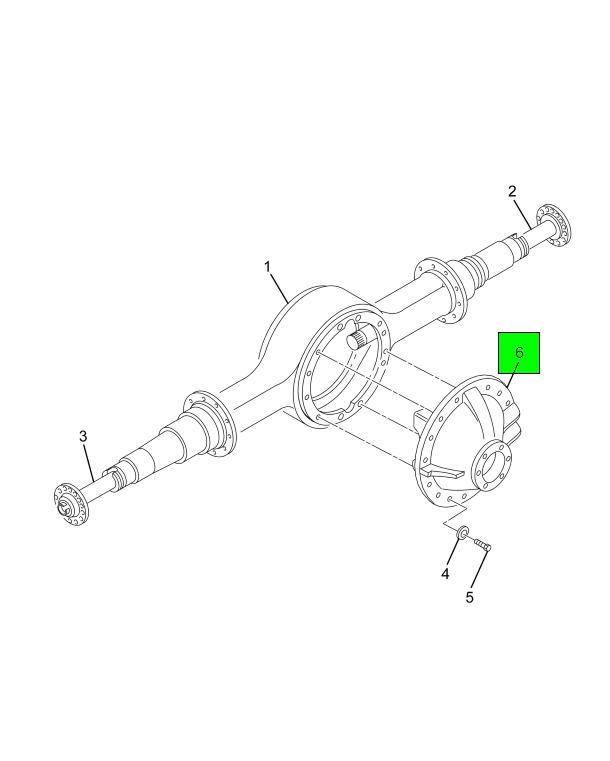

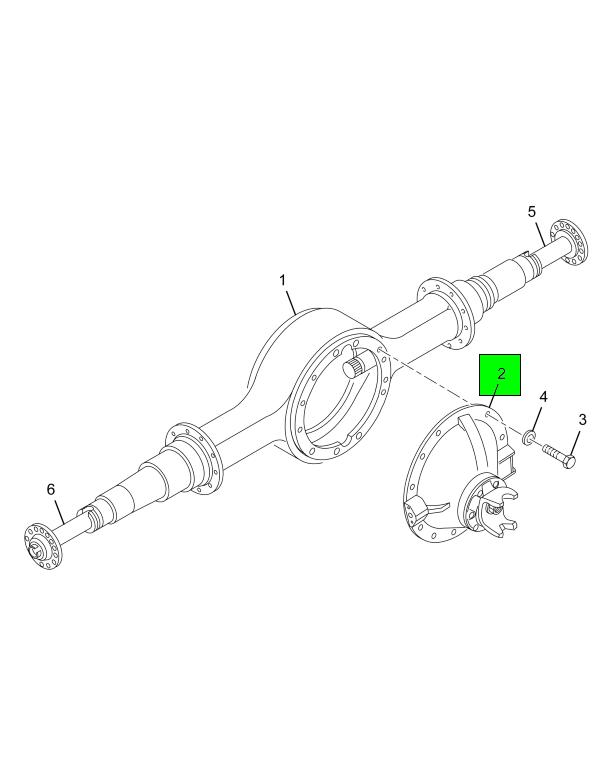

DIFFERENTIAL-RR 3.70 23105D 36
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,699.95
$6,839.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DIFFERENTIAL, REAR CT 3.70 14AEL
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| KIT- DIFFERENTIAL CARRIER W/FORK 23105D | 1 | ETN0123293 |
| WASHER, SWITCH | 1 | ETN0126618 |
| SWITCH, DIFFERENTIAL LOCK | 1 | ETN0210280 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | ETN0113885 |
| CUP | 1 | 295834R1 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | ETN0126729 |
| CUP, BEARING DIFFERENTIAL | 1 | ETN0126924 |
| WASHER- CARRIER BEARING CAP BOLT OR ST | 4 | ETN0032912 |
| BOLT | 12 | ETN0088503 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 2 | ETN0027274 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | ETN0086781 |
| NUT | 16 | ETN0084497 |
| BOLT | 16 | ETN0113888 |
| BEARING, PILOT PINION GEAR | 1 | ETN0120080 |
| BEARING, CONE PINION | 1 | ETN0126286 |
| BOLT, BEARING CAP | 2 | ETN0127180 |
| CUP, BEARING PINION | 1 | ETN0126287 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | ETN0126290 |
| BOLT | 6 | ETN0113867 |
| BEARING CUP PINION OUTER | 1 | FPHM813810 |
| BEARING CUP PINION OUTER | 1 | ETN0113869 |
| HM813841- BEARING CONE | 1 | ZBP0113868 |
| WASHER, SPACER COMPRESSION FLANGE | 1 | ETN0126940 |
| SEAL OIL PINION | 1 | DS210724 |
| SEAL OIL PINION | 1 | ETN0113866 |
| NUT- COMP FLANGE MOUNTING | 1 | 440302C1 |
| NUT- COMP FLANGE MOUNTING | 1 | ETN0095262 |
| CLUTCH, FIXED DIFFERENTIAL | 1 | ETN0127810 |
| RING, SNAP FIXED CURVIC CLUTCH | 1 | ETN0126728 |
| CLUTCH, SLIDING DIFFERENTIAL | 1 | ETN0129263 |
| SPRING, AXLE SHIFT PUSH ROD | 1 | ETN0031038 |
| GUIDE, ACTUATOR SWITCH | 1 | ETN0210279 |
| YOKE, SHIFT DIFFERENTIAL LOCK | 1 | ETN0126726 |
| PIN, ROLLER DIFFERENTIAL SHIFT FORK | 1 | ETN0210020 |
| BOLT, SHIFT FORK ADJUSTING | 1 | ETN0210191 |
| PIN- COTTER | 1 | ETN0090876 |
| ROD, PUSH SHIFT CYLINDER | 1 | ETN0210277 |
| WASHER, SHIFT CYLINDER SHOULDER | 1 | ETN0210452 |
| O-RING PISTON | 1 | ETN0210180 |
| CYLINDER, DIFFERENTIAL LK STAMP ENGLIS | 1 | ETN0126806 |
| BOLT, MOUNTING BRACKET | 2 | ETN0210182 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER | 1 | ETN0126979 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER RIGHT | 1 | ZBP0014275 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER RIGHT | 1 | ETN0014275 |
| GEAR SET, RING AND PINION DIFFERENTIAL 3.70:1 | 1 | ETN0113853 |
| FORK, SHIFT DIFFERENTIAL LOCK WITH CLUTCH | 1 | ETN0126727 |
| BOLT, ADJUSTING DRIVE GEAR THRUST | 1 | ETN0126193 |
| NUT DRIVE GEAR ADJUSTABLE SCREW | 1 | ETN0210184 |
| BEARING CONE PINION OUTER | 1 | 304661C91 |
| BEARING, CUP OUTER PINION | 1 | 152454R1 |
| BEARING, ROLLER ASSEMBLY | 1 | 58078R91 |
| BRACKET, SHIFT CYLINDER DIFFERENTIAL LOCK | 1 | ETN0118997 |
| BOLT, BEARING CAP | 2 | DS032732 |
| BOLT, BEARING CAP | 2 | ETN0032732 |
| CUP, BEARING | 1 | 564121C1 |
| PLUG- DRAIN PDV CASE | 1 | 9409949 |
| PLUG- DRAIN PDV CASE | 1 | ETN0090325 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
