ETN0509350

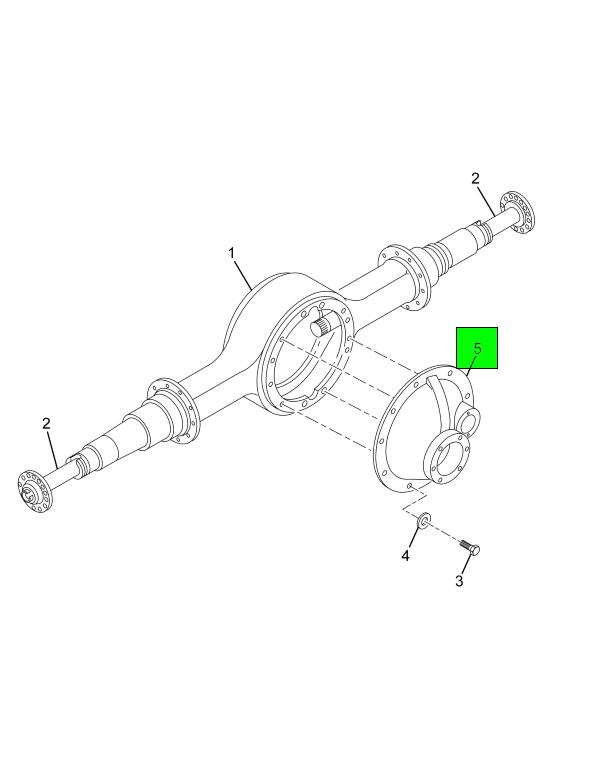

DIFFERENTIAL, REAR 3.70/5.04:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,399.95
$6,479.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
027-015-000
OEM Description
DIFFERENTIAL/R 3.70/5.04 14CDE
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | ETN0098590 |
| PLUG, EXPANSION | 1 | DS030703 |
| PLUG, EXPANSION | 1 | 77597R1 |
| PLUG, EXPANSION 15/16" | 1 | 172541 |
| SHAFT, SHIFT FORK DIFFERENTIAL | 1 | ETN0113801 |
| FORK- SHIFT AXLE | 1 | ETN0084508 |
| STUD, SHIFT CHAMBER MOUNTING OR MOTOR | 2 | ETN0119863 |
| SEAL, SHIFT MOTOR TO CARRIER | 1 | ETN0119855 |
| CYLINDER, AIR 2 SPEED TRACTION CONTROL | 1 | ETN0073507 |
| WASHER, LOCK 7/16" | 2 | ETN0119857 |
| NUT, HEXAGON 7/16" UNF | 2 | ZBP0063028 |
| NUT, HEXAGON 7/16" UNF | 2 | ETN0063028 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | ETN0021637 |
| BOLT, BEARING CAP | 4 | DS032732 |
| BOLT, BEARING CAP | 4 | ETN0032732 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | ETN0126305 |
| CUP, BEARING | 1 | FP42584 |
| CUP, BEARING | 1 | ST982 |
| CUP, BEARING | 1 | FP68712 |
| CUP, BEARING | 1 | ST983 |
| BEARING, CONE DIFFERENTIAL | 1 | FP42381 |
| BEARING, CONE DIFFERENTIAL | 1 | 58233R91 |
| BEARING, CONE | 1 | FP68462 |
| BEARING, CONE | 1 | ST2094 |
| CLUTCH, SLIDING | 1 | ETN0126255 |
| WASHER- CARRIER BEARING CAP BOLT OR ST | 4 | ETN0032912 |
| CASE, SUPPORT DIFFERENTIAL RIGHT | 1 | ETN0108138 |
| CASE- SUPPORT LEFT HAND | 1 | ETN0126301 |
| GEAR SET, RING AND PINION DIFFERENTIAL 5.04:1 | 1 | ETN0122394 |
| BOLT, RING GEAR | 8 | ETN0044358 |
| NUT, HEXAGON LOCK 9/16-18 CAD | 8 | 27293R1 |
| NUT, HEXAGON LOCK 9/16-18 CAD | 8 | 391661C1 |
| WASHER, THRUST HIGH SPEED PLATE | 1 | ETN0043271 |
| PIN, IDLER GEAR | 4 | ETN0126302 |
| GEAR, IDLER | 4 | ETN0126306 |
| PLATE, HIGH SPEED CLUTCH DIFFERENTIAL DIFFERENTIAL | 1 | ETN0126307 |
| BUSHING, DOWEL CARRIER BEARING CAP | 2 | ETN0032730 |
| BOLT | 4 | ETN0096285 |
| BOLT | 8 | ETN0096284 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 2 | ETN0083726 |
| WASHER, THRUST SIDE PINION GEAR | 4 | ETN0108145 |
| BEARING, ROLLER PINION REAR /REAR | 1 | ETN0126187 |
| BEARING, CONE PINION | 1 | FP78215 |
| BEARING, CONE PINION | 1 | 385581C91 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER RIGHT | 1 | ZBP0014275 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER RIGHT | 1 | ETN0014275 |
| BEARING, CONE PINION | 1 | FP72212C |
| BEARING, CONE PINION | 1 | 310968C91 |
| SPACER, PINION BEARING | 1 | ETN0031366 |
| PIN, COTTER 1/4" X 1-1/4" | 1 | 103419 |
| CUP, BEARING PINION | 1 | FP78551 |
| CUP, BEARING PINION | 1 | 68875R1 |
| CUP, BEARING PINION | 1 | FP72487 |
| CUP, BEARING PINION | 1 | 65071H |
| CARRIER, DIFFERENTIAL PINION DRIVE GEAR W/CUPS | 1 | ETN0210592 |
| LOCK DIFFERENTIAL BEARING ADJUSTER LEFT | 1 | ETN0078926 |
| BOLT, CAGE 5/8" X 1 3/4" UNC | 6 | ETN0130187 |
| BOLT, CAGE 5/8" X 1 3/4" UNC | 6 | ETN0113327 |
| WASHER, LOCK 5/8" | 6 | 121574 |
| WASHER, LOCK 5/8" | 6 | 103325 |
| SEAL OIL PINION | 1 | DS210724 |
| SEAL OIL PINION | 1 | ETN0113866 |
| WASHER, COMPANION FLANGE NUT | 1 | DS128049 |
| WASHER, COMPANION FLANGE NUT | 1 | ETN0210509 |
| NUT PINION | 1 | ETN0210508 |
| BUSHING, DOWEL CARRIER BEARING CAP | 2 | ETN0037746 |
| BOLT, DIFFERENTIAL BEARING LOCK ADJUSTABLE | 2 | ETN0210601 |
CROSS REFERENCES
- DANA 0509350
- DANA 0509350
- DANA 509350
- DANA 509350
- FORDPRD 6C4O 4200HA
- FORDSVC 6C4Z 4200H
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
