ETN0509058

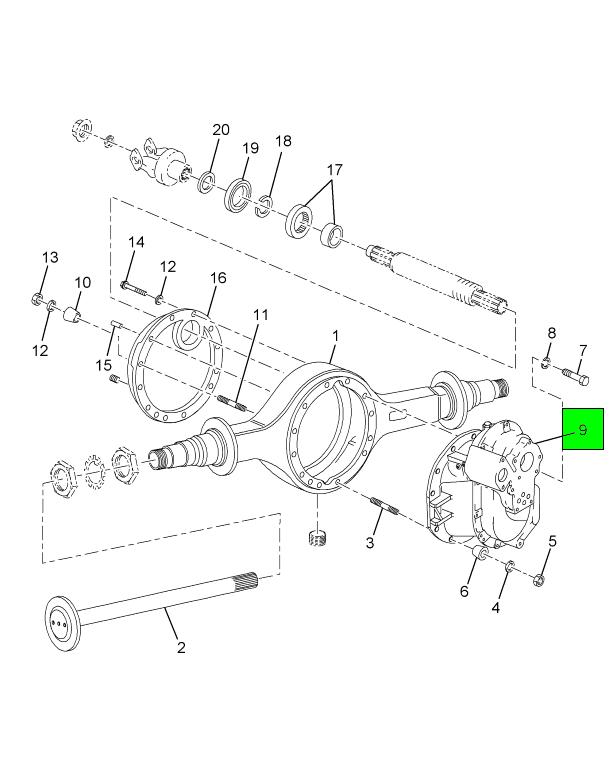

DIFFERENTIAL, FORWARD REAR 4.56:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$9,399.95
$11,279.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
027-015-000
OEM Description
DIFFERENTIAL, FORWARD REAR 4.56:1
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | ETN0509303 |
| PLUG- DRAIN PDV CASE | 1 | 9409949 |
| PIN, DOWEL CARRIER BEARING CAP | 2 | ETN0007641 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | ETN0021637 |
| ADJUSTER | 1 | ETN0039448 |
| CUP, BEARING | 1 | FP42584 |
| CUP, BEARING | 1 | DS019529 |
| CUP, BEARING | 1 | ETN0015092 |
| CUP, BEARING | 1 | ETN0019529 |
| BEARING, CONE | 1 | FP42381 |
| BEARING, CONE | 1 | DS027666 |
| BEARING, CONE | 1 | ETN0027666 |
| BEARING, CONE | 1 | ETN0027876 |
| GEAR SET, RING AND PINION FRONT REAR DIFFERENTIAL 4.56:1 | 1 | DS122337 |
| GEAR SET, RING AND PINION FRONT REAR DIFFERENTIAL 4.56:1 | 1 | ETN0122337 |
| BOLT | 16 | DS067586 |
| BOLT | 16 | ETN0067586 |
| NUT | 16 | DS060600 |
| NUT | 16 | ETN0060600 |
| BOLT, BEARING CAP | 4 | ETN0127180 |
| BOLT | 12 | ETN0088503 |
| GEAR, DIFFERENTIAL SIDE LEFT OR RIGHT | 2 | ETN0120052 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 2 | ETN0027274 |
| GEAR, SPIDER DIFFERENTIAL | 4 | ETN0086780 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | ETN0086781 |
| SPIDER, DIFFERENTIAL | 1 | ETN0086778 |
| BEARING, ROLLER PINION REAR /REAR | 1 | ETN0126187 |
| BEARING, CONE PINION | 2 | FP72212C |
| BEARING, CONE PINION | 2 | ETN0014218 |
| SPACER | 1 | ETN0078904 |
| WASHER- CARRIER BEARING CAP BOLT OR ST | 4 | ETN0032912 |
| CUP, BEARING PINION | 2 | FP72487 |
| CUP, BEARING PINION | 2 | ETN0014217 |
| CAGE, PINION DRIVE GEAR BEARING | 1 | ETN0078914 |
| BOLT | 6 | ETN0062158 |
| WASHER, STUD BEARING CAGE PINION GEAR | 6 | ETN0037207 |
| GEAR, HELICAL DRIVE | 1 | ETN0119995 |
| BEARING, BALL | 1 | ETN0078916 |
| RING, SNAP | 1 | ETN0078937 |
| NUT PINION SHAFT | 1 | ETN0126182 |
| PIN, SPRING WINDING LEVER | 1 | ETN0118807 |
| NUT PINION | 1 | DS128049 |
| NUT PINION | 1 | ETN0210508 |
| WASHER, COMPANION FLANGE NUT | 1 | ETN0210509 |
| WASHER | 1 | DS078922 |
| WASHER | 1 | ETN0078922 |
| BUSHING, DOWEL CARRIER BEARING CAP | 2 | ETN0032730 |
| SHAFT, OUTPUT W/BEARING, O-RING AND SNAP RING | 1 | ETN0122419 |
| RING-O | 2 | DS078931 |
| RING-O | 2 | ETN0078931 |
| CUP, BEARING | 1 | ETN0024328 |
| BEARING | 1 | ETN0024330 |
| GEAR, INTERMEDIATE AXLE DIFFERENTIAL FRONT, REAR | 1 | ETN0078911 |
| RING, SNAP | 1 | ETN0085994 |
| SPRING, AXLE SHIFT PUSH ROD | 1 | ETN0127095 |
| BUSHING, THRUST OUTPUT SHAFT | 1 | ETN0051228 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER RIGHT | 1 | ZBP0014275 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER RIGHT | 1 | ETN0014275 |
| BOLT | 8 | DS057636 |
| BOLT | 8 | ETN0057636 |
| NUT | 8 | 27036R1 |
| NUT | 8 | ETN0057637 |
| WASHER, THRUST PINION | 4 | ETN0126180 |
| RING, SNAP | 1 | ETN0078909 |
| GEAR, HELICAL DRIVE DIFFERENTIAL | 1 | ETN0113331 |
| BUSHING, SIDE GEAR POWER DIVIDER LOCK DIFFERENTIAL | 2 | ETN0075063 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 1 | ETN0079034 |
| LOCK | 1 | ETN0045448 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 1 | ETN0056360 |
| CLUTCH, SLIDING INTERMEDIATE AXLE DIFFERENTIAL | 1 | ETN0119948 |
| SHAFT, INPUT DIFFERENTIAL W/LOCK NUT | 1 | ETN0122418 |
| CONE | 1 | FPJM511946 |
| CONE | 1 | ETN0098387 |
| BEARING | 1 | SKFJM511910 |
| BEARING | 1 | ETN0098388 |
| CAGE- PINION DRIVE GEAR BEARING | 1 | ETN0111691 |
| BOLT, BEARING RETAINER | 5 | ETN0126243 |
| SEAL, OIL INPUT SHAFT | 1 | ETN0210736 |
| BOLT, DIFFERENTIAL BEARING LOCK ADJUSTABLE | 2 | ETN0210601 |
| WASHER, FLAT INPUT SHAFT | 1 | ETN0126242 |
| CUP, BEARING | 1 | FP653 |
| NUT INPUT SHAFT | 1 | ETN0126155 |
| BEARING, CONE DIFFERENTIAL | 1 | FP665 |
| WASHER, LOCK 9/16 INTAKE PHC | 6 | 138555 |
| SHAFT, OUTPUT WITH NUT | 1 | ETN0217893 |
| RING, "O" CLASS 5 2 1/4" X 2 5/8" | 1 | 21597R1 |
| CUP, BEARING OUTPUT SHAFT | 1 | FP33472 |
| BEARING, CONE OUTPUT SHAFT | 1 | FP33275 |
| COVER | 1 | DS510792 |
| COVER | 1 | ETN0117311 |
| CUP, BEARING | 1 | FPJM511910 |
| CARRIER, DIFFERENTIAL INPUT SHAFT W/CUP | 1 | ETN0509643 |
| CARRIER, DIFFERENTIAL INPUT SHAFT W/CUP | 1 | 588475C91 |
| PIN 1/4 X .750 PLN HDN DOWEL | 2 | 20040R1 |
| BOLT 1/2" X 2" | 4 | 25279R1 |
| BUSHING, SIDE GEAR POWER DIVIDER LOCK DIFFERENTIAL | 1 | DS048922 |
| BUSHING, SIDE GEAR POWER DIVIDER LOCK DIFFERENTIAL | 1 | ETN0048922 |
| CYLINDER, SHIFT POWER DIVIDER LOCK | 1 | ETN0508457 |
| BOLT | 1 | ETN0009309 |
| BOLT 9/16" X 1 3/4" | 8 | 25312R1 |
| SCREW | 1 | DS081855 |
| SCREW | 1 | ETN0081855 |
| BOLT | 8 | ETN0090069 |
| LOCK WASHER | 10 | ETN0090417 |
| PLUG- DRAIN PDV CASE | 1 | ETN0090325 |
| PLUG, EXPANSION 15/16" | 1 | 172541 |
| PLUG | 1 | ETN0009797 |
| SCREEN, OIL FILTER | 1 | DS102611 |
| SCREEN, OIL FILTER | 1 | ETN0102611 |
| COVER | 1 | ETN0102607 |
| GEAR, OIL PUMP | 1 | ETN0119946 |
| PIN- COTTER | 1 | ETN0090876 |
| NUT, LOCK | 1 | ETN0111451 |
| O-RING | 1 | 366581R1 |
| O-RING | 1 | ETN0102620 |
| PIN | 2 | ETN0102617 |
| CAP SCREW | 4 | ETN0102618 |
| WASHER | 4 | ETN0090419 |
CROSS REFERENCES
- DANA 0509058
- DANA 0509058
- DANA 509058
- DANA 509058
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
