ETN0507904

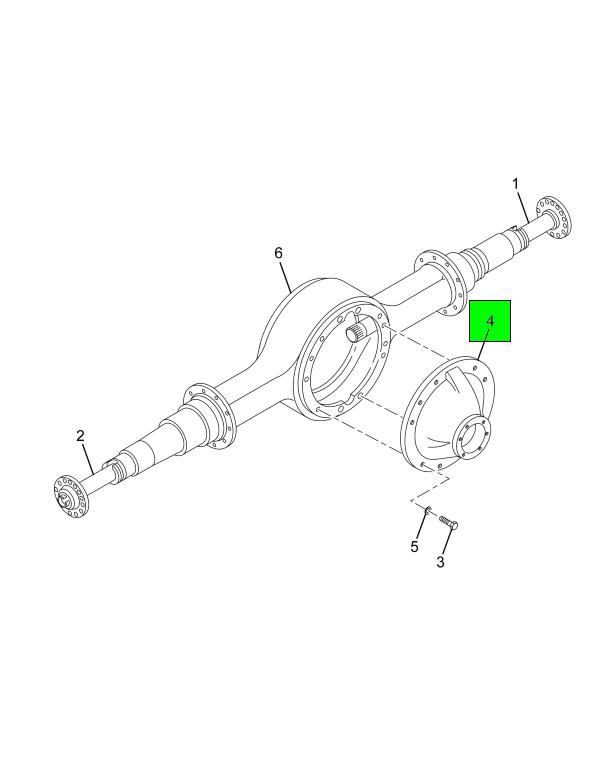

DIFFERENTIAL 23080S 3.90 NS
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$6,999.95
$8,399.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
027-015-000
OEM Description
DIFFERENTIAL 23080S 3.90 NS
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | ETN0213652 |
| CUP, BEARING DIFFERENTIAL | 1 | FP493 |
| CUP, BEARING DIFFERENTIAL | 1 | ETN0009803 |
| BEARING, CONE DIFFERENTIAL | 1 | FP497 |
| BEARING, CONE DIFFERENTIAL | 1 | ETN0027813 |
| ADJUSTER, DIFFERENTIAL BEARING LEFT | 1 | ETN0210009 |
| BEARING CUP DIFFERENTIAL LEFT | 1 | FP592A |
| BEARING CUP DIFFERENTIAL LEFT | 1 | ETN0031824 |
| BEARING, CONE DIFFERENTIAL | 1 | FP52400 |
| BEARING, CONE DIFFERENTIAL | 1 | ETN0012501 |
| SEAL, OIL PINION GEAR | 1 | ETN0210724 |
| BEARING CONE PINION OUTER | 1 | TMHM813841 |
| BEARING CONE PINION OUTER | 1 | ETN0113868 |
| BOLT, DIFFERENTIAL CASE | 12 | ETN0210513 |
| BEARING CUP PINION OUTER | 1 | FPHM813810 |
| BEARING CUP PINION OUTER | 1 | ETN0113869 |
| BOLT, PINION GEAR BEARING RETAINER | 6 | ETN0210094 |
| WASHER, BOLT CARRIER BEARING CAP | 4 | ETN0210288 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | ETN0127843 |
| CUP, BEARING PINION | 1 | ETN0126287 |
| NUT, HEXAGON DIFFERENTIAL DRIVE GEAR BOLT | 16 | ETN0126215 |
| BOLT, DIFFERENTIAL DRIVE GEAR | 16 | ETN0126221 |
| BEARING ASSEMBLY ROLLER PIN PILOT | 1 | DS129947 |
| BEARING ASSEMBLY ROLLER PIN PILOT | 1 | ETN0127826 |
| BEARING, CONE PINION | 1 | ETN0126286 |
| DIFFERENTIAL NO SPIN | 1 | 1698218C91 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 4 | ETN0210095 |
| GEAR SET, RING AND PINION DIFFERENTIAL 3.90:1 | 1 | ETN0213419 |
| PIN COTTER | 2 | DS090873 |
| PIN COTTER | 2 | ETN0126156 |
| NUT DIFFERENTIAL PINION GEAR BEARING | 1 | ETN0128049 |
| BOLT, ADJUSTING DRIVE GEAR THRUST | 1 | ETN0126193 |
| NUT DRIVE GEAR ADJUSTABLE SCREW | 1 | ETN0210184 |
| CASE, DIFFERENTIAL W/BOLTS 3.90 AND 4.33 RATIO | 1 | ETN0121788 |
| BEARING, CUP OUTER PINION | 1 | 152454R1 |
| BEARING CONE PINION OUTER | 1 | 304661C91 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | ETN0210179 |
CROSS REFERENCES
- DANA 0507904
- DANA 0507904
- DANA 507904
- DANA 507904
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
