ETN0507216
DIFFERENTIAL-FR 4.88 DD461P 36
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$7,599.95
$9,119.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description

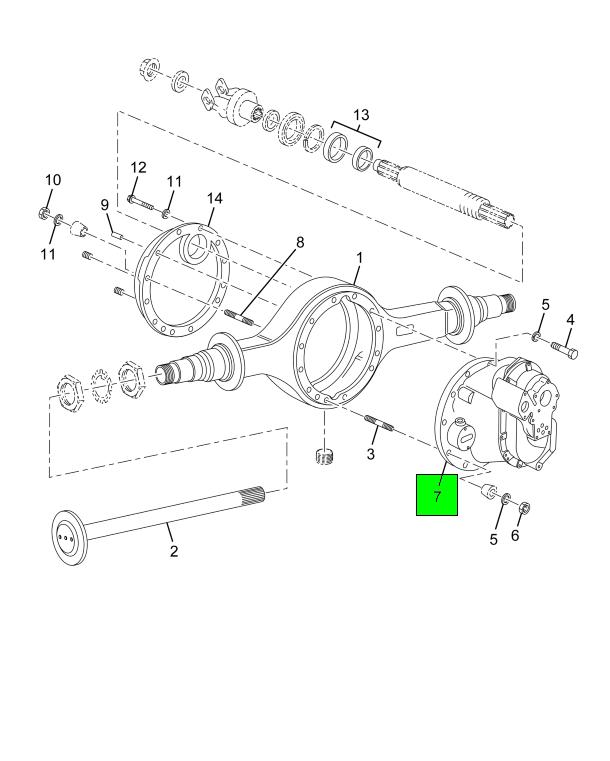

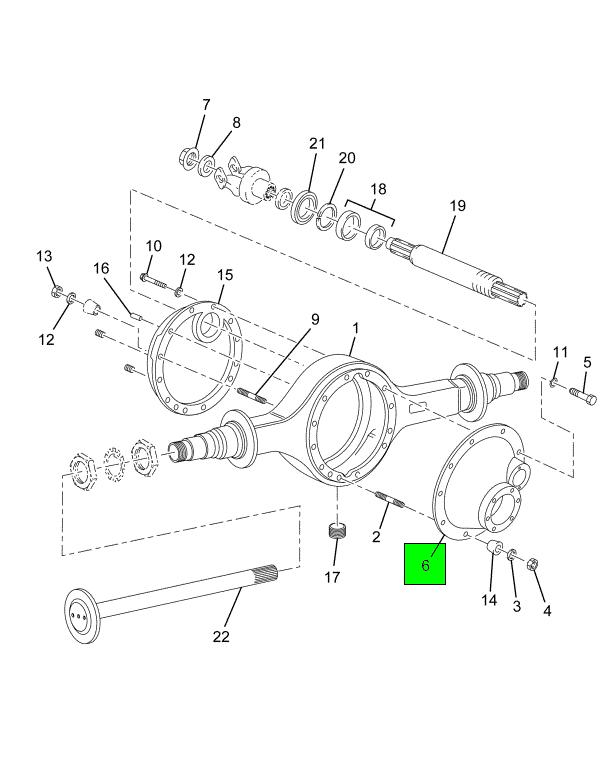

DIFFERENTIAL, FORWARD REAR 4.88:1
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | ETN0098590 |
| BUSHING, DOWEL CARRIER BEARING CAP | 2 | ETN0037746 |
| PLUG, EXPANSION SHIFT FORK UPPER | 1 | ETN0030703 |
| PLUG | 1 | ETN0009797 |
| PLUG, EXPANSION 15/16" | 1 | 172541 |
| SHAFT, SHIFT FORK DIFFERENTIAL | 1 | ETN0113801 |
| NUT, CONE LOCK DIFFERENTIAL CASE BOLT | 2 | 4066697C1 |
| NUT, CONE LOCK DIFFERENTIAL CASE BOLT | 2 | 302901C1 |
| WASHER, LOCK 7/16" | 1 | ETN0119857 |
| SEAL, SHIFT MOTOR TO CARRIER | 1 | ETN0119855 |
| STUD, SHIFT CHAMBER MOUNTING OR MOTOR | 2 | ETN0119863 |
| FORK- SHIFT AXLE | 1 | ETN0084508 |
| CYLINDER, SHIFT LOCK DIFFERENTIAL SHIFT LOCK | 1 | ETN0129038 |
| WASHER- CARRIER BEARING CAP BOLT OR ST | 4 | ETN0032912 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | ETN0021637 |
| CUP, BEARING | 1 | FP42584 |
| 42584- BEARING CUP | 1 | ZBP0015092 |
| 68462- BEARING CONE | 1 | ZBP0102660 |
| CLUTCH, SLIDING DIFFERENTIAL | 1 | ETN0935088 |
| ADJUSTER | 1 | ETN0082451 |
| CUP, BEARING REAR | 1 | FP68712 |
| BEARING, CONE DIFFERENTIAL | 1 | FP68462 |
| BEARING, CONE DIFFERENTIAL | 1 | FP42381 |
| BEARING, CONE DIFFERENTIAL | 1 | 58233R91 |
| GEAR SET, RING AND PINION DIFFERENTIAL 4.88:1 | 1 | ETN0121891 |
| BOLT, BEARING CAP | 2 | ETN0127180 |
| BOLT, BEARING CAP | 2 | DS032732 |
| BOLT, BEARING CAP | 2 | ETN0032732 |
| BOLT | 12 | ETN0088503 |
| BOLT | 16 | DS067586 |
| BOLT | 16 | ETN0067586 |
| NUT | 16 | DS060600 |
| NUT | 16 | ETN0060600 |
| GEAR, SIDE DIFFERENTIAL | 2 | ETN0093401 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 2 | ETN0027274 |
| GEAR, SPIDER DIFFERENTIAL | 4 | ETN0086780 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | ETN0086781 |
| SPIDER, DIFFERENTIAL | 1 | ETN0086778 |
| BEARING, ROLLER PINION REAR /REAR | 1 | ETN0126187 |
| BEARING, CONE PINION | 1 | FP78215 |
| BEARING, CONE PINION | 1 | 385581C91 |
| SPACER, PINION BEARING | 1 | ETN0031366 |
| CUP, BEARING PINION | 1 | FP78551 |
| BEARING, CUP PINION | 1 | FP72487 |
| CUP, BEARING PINION | 1 | 68875R1 |
| CARRIER, DIFFERENTIAL PINION DRIVE GEAR W/CUPS | 1 | ETN0210592 |
| CUP, BEARING PINION | 1 | ETN0014217 |
| BOLT, CAGE 5/8" X 1 3/4" UNC | 6 | ETN0130187 |
| BOLT, CAGE 5/8" X 1 3/4" UNC | 6 | ETN0113327 |
| BEARING, CONE PINION | 1 | FP72212C |
| BEARING, CONE PINION | 1 | ETN0014218 |
| SEAL, OIL PINION GEAR | 1 | ETN0210724 |
| WASHER, COMPANION FLANGE NUT | 1 | DS128049 |
| WASHER, COMPANION FLANGE NUT | 1 | ETN0210509 |
| BUSHING, DOWEL CARRIER BEARING CAP | 2 | ETN0032730 |
| NUT PINION | 1 | ETN0210508 |
| SWITCH, DIFFERENTIAL LOCK INDICATOR | 1 | ETN0129035 |
| HARNESS, ELECTRICAL DIFFERENTIAL LOCK | 1 | ETN0129047 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER RIGHT | 1 | ZBP0014275 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER RIGHT | 1 | ETN0014275 |
| PIN, COTTER 1/4" X 1-1/4" | 1 | 103419 |
| LOCK | 1 | ETN0045448 |
| RING | 1 | ETN0113140 |
| NUT, LOCK ENGINE SUPPORT SHAFT 7/16" UNF 7/16" NF | 2 | 273896 |
| BOLT, DIFFERENTIAL BEARING LOCK ADJUSTABLE | 2 | ETN0210601 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
