ETN0504115
KIT DIFFERENTIAL SIDE GEAR S140 AXLE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$379.95
$455.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
Kits

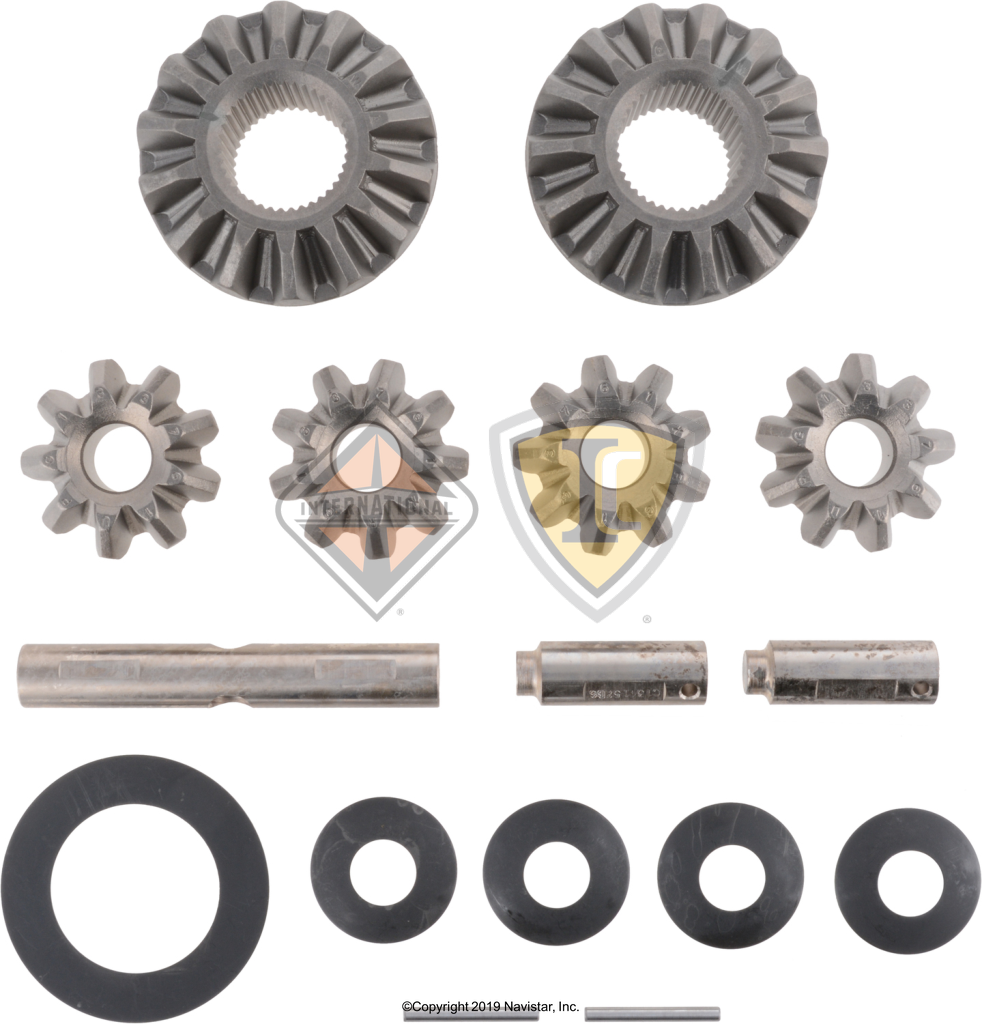

(4.00) WASHER, THRUST DIFFERENTIAL SPIDER GEAR; (4.00) " GEAR, PINION "; (1.00) WASHER, THRUST DIFFERENTIAL SIDE GEAR; (2.00) GEAR, SIDE DIFFERENTIAL 39 SPLINE; (2.00) PIN, DOWEL; (1.00) SHAFT, DIFFERENTIAL LONG PIN; (2.00) SHAFT, DIFFERENTIAL SHORT PIN;
VMRS
022-003-000
OEM Description
KIT DIFFERENTIAL SIDE GEAR S140 AXLE
Weight
17.589 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 1 | ETN0127386 |
| " GEAR, PINION " | 4 | DS133761 |
| " GEAR, PINION " | 4 | ETN0133761 |
| PIN, DOWEL | 2 | ETN0130605 |
| GEAR, SIDE DIFFERENTIAL 39 SPLINE | 2 | ETN0127367 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | ETN0129305 |
| SHAFT, DIFFERENTIAL LONG PIN | 1 | ETN0134151 |
| SHAFT, DIFFERENTIAL SHORT PIN | 2 | ETN0134152 |
CROSS REFERENCES
- DANA 0504115
- DANA 0504115
- FORDPRD 4C4O 4599JA
- FORDSVC 4C4Z 4215D
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
