ETN0214539
DIFFERENTIAL, FORWARD /REAR 7.17
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,799.95
$3,359.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
027-015-000
OEM Description
DIFFERENTIAL, FORWARD /REAR 7.17
Weight
240.5 lbs

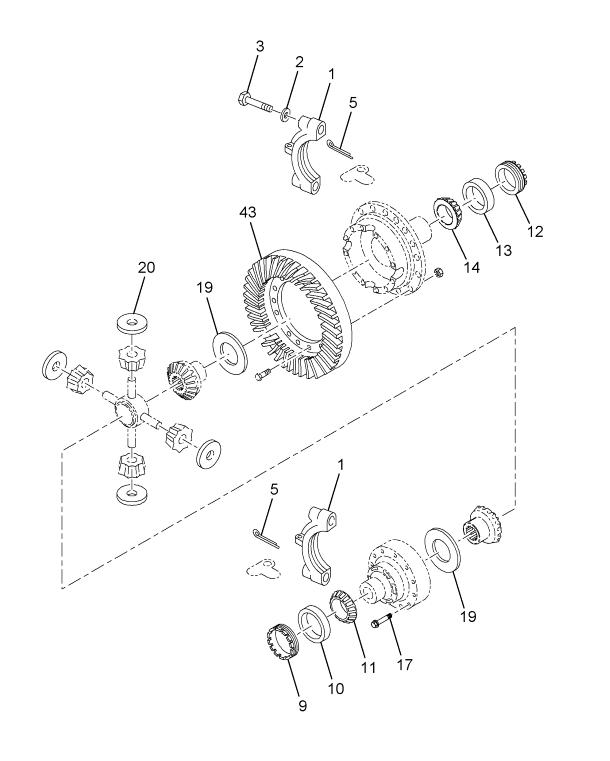

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | ETN0210650 |
| BEARING CUP | 1 | ETN0090951 |
| BEARING- CONE | 1 | ETN0040679 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | ETN0210389 |
| CUP, BEARING DIFFERENTIAL | 1 | FP493 |
| CUP, BEARING DIFFERENTIAL | 1 | ETN0009803 |
| BEARING, CONE DIFFERENTIAL | 1 | FP497 |
| BEARING, CONE DIFFERENTIAL | 1 | ETN0027813 |
| BOLT, DIFFERENTIAL CASE | 12 | ETN0210469 |
| WASHER, SPECIAL | 2 | ETN0126004 |
| WASHER, BOLT CARRIER BEARING CAP | 4 | ETN0210288 |
| WASHER | 4 | ETN0126003 |
| BEARING | 1 | ETN0210111 |
| BEARING | 1 | FP72200C |
| BEARING | 1 | ETN0045460 |
| CUP, BEARING PINION | 1 | FP72487 |
| CUP, BEARING PINION | 1 | ETN0014217 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 4 | ETN0210095 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | ETN0126694 |
| BOLT, PINION BEARING CAGE | 6 | DS210115 |
| BOLT, PINION BEARING CAGE | 6 | ETN0210115 |
| CUP, BEARING | 1 | FPHM903210 |
| CUP, BEARING | 1 | ETN0049849 |
| BEARING CONE /ROLLERS | 1 | 917218R91 |
| BEARING, CONE | 1 | FPHM903249 |
| BEARING, CONE | 1 | ETN0049848 |
| SEAL, OIL PINION GEAR | 1 | ETN0119427 |
| WASHER, COMPANION FLANGE NUT | 1 | ETN0210114 |
| NUT COMPANION FLANGE | 1 | ETN0210133 |
| GEAR SET, RING AND PINION DIFFERENTIAL 7.17:1 | 1 | ETN0121765 |
| PIN COTTER | 2 | DS090873 |
| PIN COTTER | 2 | ETN0126156 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | ETN0210108 |
CROSS REFERENCES
- DANA 0214539
- DANA 0214539
- DANA 214539
- DANA 214539
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
