573550C92
DIFFERENTIAL 4.56/6.34:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,599.95
$6,719.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
027-015-000
OEM Description
DIFFERENTIAL 4.56/6.34 14130
Weight
320.67 lbs

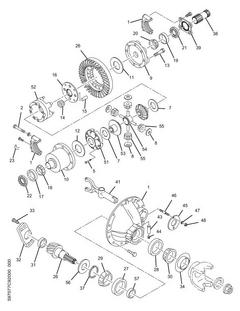

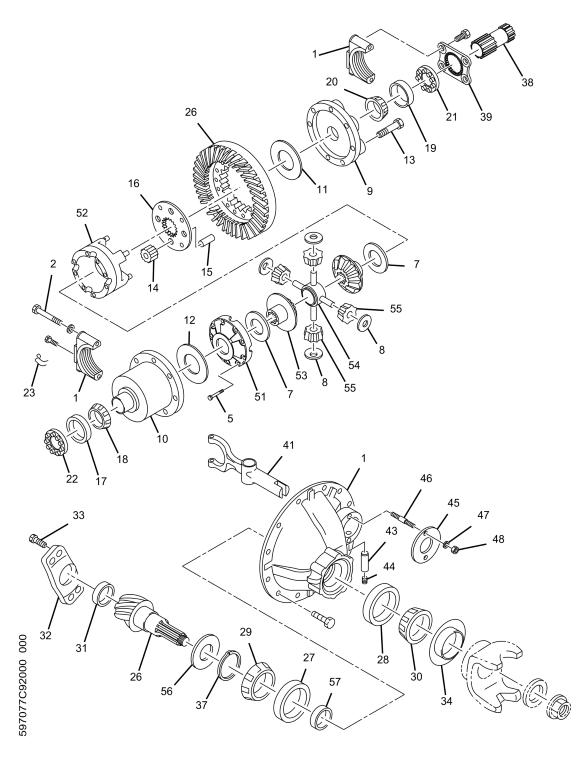

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 597153C91 |
| PIN DOWEL CARRIER BEARING CAP | 4 | 597097C1 |
| BOLT DIFFERENTIAL BEARING ADJUSTER LOCK | 2 | 597117C1 |
| NUT, MOUNTING COMPANION FLANGE | 1 | 1696471C1 |
| BOLT | 4 | 1691251C1 |
| WASHER RETAINING LOCK 3/8 FLAT | 2 | 597116C1 |
| WASHER, PINION W/NUT | 1 | 597194C1 |
| NUT, MOUNTING COMPANION FLANGE | 1 | 597145C1 |
| CASE, DRIVE GEAR SUPPORT DIFFERENTIAL RIGHT | 1 | 1699218C1 |
| WASHER, THRUST HIGH SPEED PLATE | 1 | 597164C1 |
| BOLT, DIFFERENTIAL CASE SUPPORT | 8 | 1697500C1 |
| GEAR, IDLER PINION | 4 | 597156C1 |
| PIN, IDLER PINION | 4 | 597166C1 |
| PLATE, HIGH SPEED CLUTCH | 1 | 597168C1 |
| CUP, BEARING DIFFERENTIAL | 1 | TM42584 |
| CUP, BEARING | 1 | TM493 |
| BEARING, CONE DIFFERENTIAL | 1 | TM42381 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP 5/8" | 4 | 597096C1 |
| BEARING, CONE | 1 | TM495 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | 597111C1 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | 597112C1 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER | 2 | 597115C1 |
| GEAR SET DIFFERENTIAL 4.56-6.34:1 | 1 | 573551C91 |
| CUP, BEARING PINION | 1 | TM55437 |
| CUP, BEARING | 1 | TM72487 |
| BEARING, CONE PINION | 1 | TM55200C |
| BEARING, CONE | 1 | TM72225C |
| BEARING, ROLLER PILOT PINION | 1 | 73511HA |
| RETAINER, PINION BEARING REAR | 1 | 597149C1 |
| BOLT, REAR RETAINER | 4 | 597190C1 |
| SEAL, BEARING CAGE PINION GEAR | 1 | 1691141C2 |
| SEAL, OIL PINION GEAR W/SLINGER INNER | 1 | 597148C1 |
| GEAR, SUN DIFFERENTIAL | 1 | 597170C1 |
| RETAINER, SUN GEAR | 1 | 597172C1 |
| PIN, ROLLER SHIFT FORK DIFFERENTIAL | 2 | 597174C1 |
| YOKE, SHIFT DIFFERENTIAL | 1 | 597179C91 |
| SHAFT, SHIFT SLIDING CLUTCH DIFFERENTIAL | 1 | 597175C1 |
| SCREW, SET SHIFT FORK | 1 | 597176C1 |
| SEAL, ASSEMBLY W/SPRING SHIFT MOTOR | 1 | DS119855 |
| SEAL, ASSEMBLY W/SPRING SHIFT MOTOR | 1 | 597152C1 |
| STUD, SHIFT MOTOR | 2 | 597151C1 |
| WASHER FLAT SHIFT MOTOR | 2 | ETN0119857 |
| WASHER FLAT SHIFT MOTOR | 2 | 597187C1 |
| NUT LOCK ELECTRICAL SHIFT MOTOR | 2 | 4066697C1 |
| NUT LOCK ELECTRICAL SHIFT MOTOR | 2 | 597181C1 |
| BOLT, DIFFERENTIAL CASE | 8 | 597158C1 |
| WASHER, THRUST SIDE GEAR | 1 | 597107C1 |
| WASHER, THRUST PINION GEAR | 4 | 597109C1 |
| CASE, SUPPORT DIFFERENTIAL LEFT | 1 | 597160C1 |
CROSS REFERENCES
- DANA GGACA128 3
- DANA GGACA128 3
- DANA GGACA128 31X
- DANA GGACA128 31X
- DANA GGACA128-31X
- DANA GGACA128-31X
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
