571932C91
DIFFERENTIAL, REAR 6.14:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,799.95
$6,959.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
027-015-000
OEM Description
DIFFERENTIAL-RR 6.14 14036-44
Weight
323.68 lbs

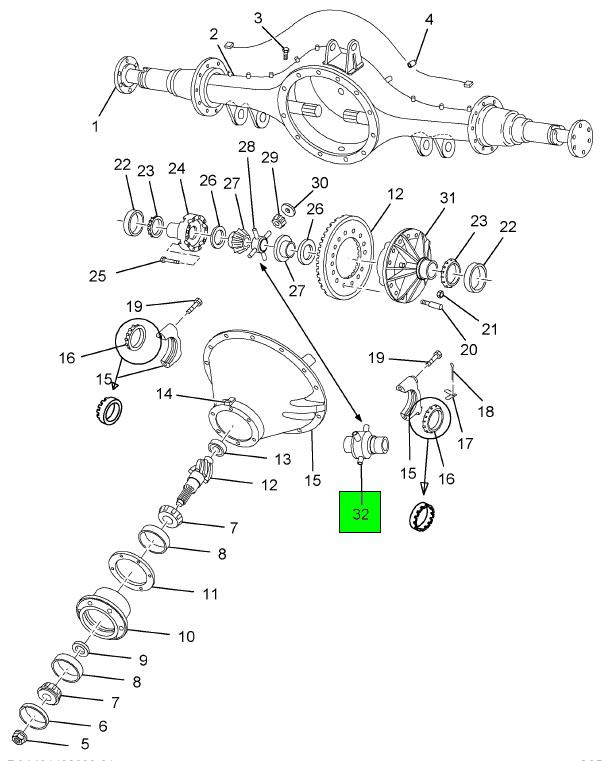

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 161019R93 |
| GEAR SET DIFFERENTIAL 6.14:1 | 1 | 597243C91 |
| RIVET DIFFERENTIAL DRIVE GEAR | 12 | 157490R1 |
| BEARING, ROLLER PINION REAR /REAR | 1 | FPMU1307TM |
| BEARING, ROLLER | 1 | VMU1307TM |
| BEARING, ROLLER | 1 | 91082R91 |
| NUT HEXAGON LK COMP FLANGE | 1 | 578881C1 |
| NUT, FLANGE HEXAGON 1 3/4" UN 2B | 1 | 501146C1 |
| BEARING, CONE | 2 | FP47890 |
| BEARING, CONE | 2 | ST2162 |
| CUP, BEARING | 2 | FP47820 |
| CUP, BEARING | 2 | ST2161 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 2 | 69208R1 |
| BOLT 3/4" X 4 1/2" | 4 | 24895R1 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER | 2 | 157491R2 |
| PIN, COTTER 3/16" X 1" | 2 | 103407 |
| SEAL, OIL PINION | 1 | 2503294C1 |
| CARRIER, DIFFERENTIAL PINION DRIVE GEAR | 1 | 454719C91 |
| BEARING, CUP | 2 | FP72487 |
| BEARING, CUP | 2 | 356162C1 |
| BEARING, CONE /ROLLERS | 2 | FP72225C |
| BEARING, CONE /ROLLERS | 2 | 356161C91 |
| WASHER THRUST DIFFERENTIAL SIDE GEAR | 2 | 157494R1 |
| PLUG PATCH THREAD 3/4-14 NPTF, SQ SOCKET | 1 | 586045C1 |
| CASE, FLANGE HALF DIFFERENTIAL 4.78-7.17 RATIO | 1 | 505757C1 |
| CASE, PLAIN HALF DIFFERENTIAL | 1 | 864358R2 |
| BOLT DIFFERENTIAL CASE | 8 | 1691256C1 |
| BOLT DIFFERENTIAL CASE | 8 | 157493R1 |
| HOSE | 1 | 390862R1 |
| WASHER, FLAT | 4 | 25712R1 |
| NUT, LOCK 9/16" UNF | 8 | 27293R1 |
CROSS REFERENCES
- DANA R44CA103 7
- DANA R44CA103 7
- DANA R44CA103 7X
- DANA R44CA103 7X
- DANA R44CA103-7X
- DANA R44CA103-7X
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
