2613510C91
KIT DIFFERENTIAL 2.10-41 SPLINE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$249.95
$299.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
KIT DIFFERENTIAL 2.10-41 SPLINE
Weight
19.04 lbs

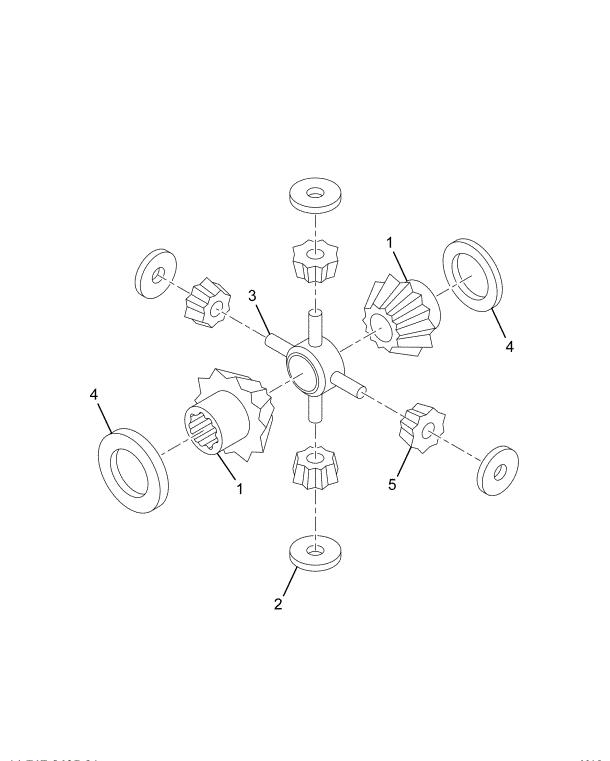

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| GEAR,SIDE | 2 | 2613512C1 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | 72335R1 |
| SPIDER | 1 | 3278Y1117F |
| WASHER,THRUST SIDE GEAR | 2 | 2613377C1 |
| WASHER,THRUST SIDE GEAR | 2 | 2613511C1 |
| DIFFERENTIAL PINION | 4 | 2233X1116 |
CROSS REFERENCES
- MERITOR KIT 4809
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
