2613501C91
KIT DIFFERENTIAL LOCK FORWARD REAR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$299.95
$359.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
KIT DIFFERENTIAL LOCK FORWARD REAR
Weight
6.1358 lbs

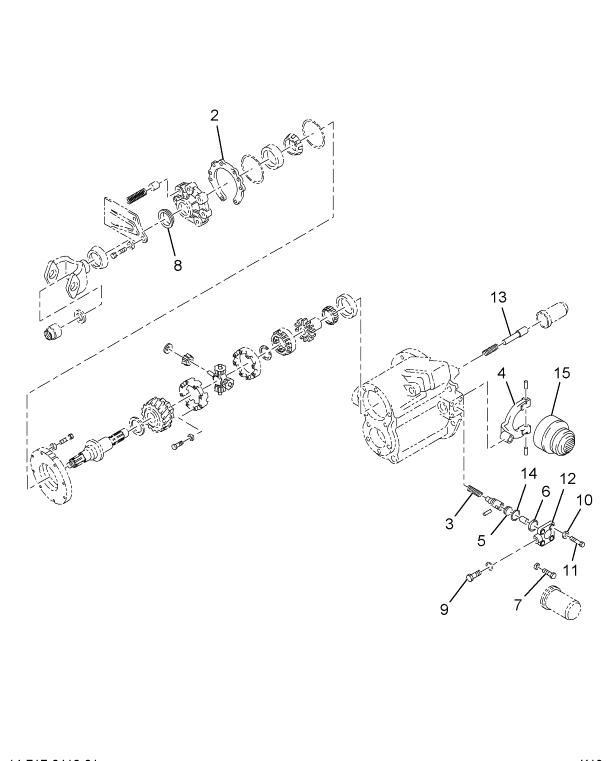

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| WASHER, FLAT METRIC | 4 | 1696027C1 |
| SCREW DIFFERENTIAL LOCK COVER | 4 | 2613506C1 |
| COVER DIFFERENTIAL LOCK FORWARD REAR | 1 | 2613507C1 |
| ROD PUSH DIFFERENTIAL LOCK FORWARD REAR | 1 | 2613508C1 |
| O-RING AIR CYLINDER | 1 | 1653983C1 |
| COLLAR CLUTCH DIFFERENTIAL LOCK FORWARD REAR | 1 | 2613509C1 |
| SHIM DIFFERENTIAL LOCK | 3 | 2613502C1 |
| SPRING, SHIFT FORK | 1 | 1696233C1 |
| FORK SHIFT DIFFERENTIAL LOCK FORWARD REAR | 1 | 2613503C1 |
| PISTON DIFFERENTIAL LOCK FORWARD REAR | 1 | 2613504C1 |
| GASKET | 1 | 2208Q1005 |
| PLUG, CAP SCREW CYLINDER COVER | 1 | 2613505C1 |
| SEAL, SHIFT MOTOR TO CARRIER | 1 | 1696235C1 |
| BOLT, SHIFT CYLINDER | 1 | 1696236C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
