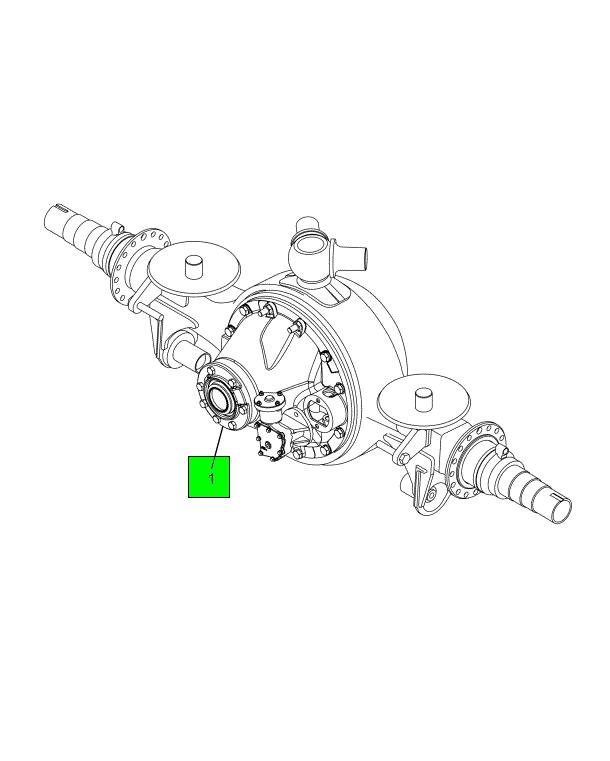

2603170C91
DIFFERENTIAL REAR 4.30 14ASA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,099.95
$6,119.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
DIFFERENTIAL REAR 4.30 14ASA
Weight
467.98 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| NUT, HEXAGON LOCK PINION | 1 | 1685173C1 |
| GASKET COVER AIR CYLINDER | 1 | 2208H944 |
| PISTON | 1 | 2230N170 |
| O-RING | 1 | 5X1153 |
| BOLT, COVER | 4 | 2504310C91 |
| COVER DIFFERENTIAL LK CYLINDER | 1 | 3266F1020 |
| WASHER, SPECIAL REAR AXLE | 4 | MWA506 |
| BOLT, SPECIAL M10 X 50 | 1 | 41X1333 |
| GASKET PLUG | 1 | 2208L1000 |
| CAP SCREW | 1 | MS2100161 |
| BEARING CONE INNER (DRIVE) | 1 | 2603149C1 |
| SHIMPIN. | 1 | 2203A8815 |
| SHIM, PIN BEARING CAGE .200MM | 1 | 2203B8816 |
| SHIMPIN500MM | 1 | 2203C8817 |
| GEAR SET DIFFERENTIAL R&P 4.30 | 1 | A406341 |
| DIFFERENTIAL ASSEMBLY /NEST | 1 | A13235U2335 |
| WASHER, BOLT CARRIER TO HOUSING | 1 | 226846R1 |
| CARRIER, DIFFERENTIAL W/CAPS | 1 | A23200J1752 |
| WASHER FLAT METRIC 12MM | 8 | MWA512 |
| BOLT 12 MM X 45 MM | 8 | 1697666C1 |
| ADJUSTER, DIFFERENTIAL LEFT | 1 | 2214W1011 |
| BEARING-DIFFERENTIAL | 1 | ATI1228Z598 |
| BEARING, ROLLER ASSEMBLY | 1 | 1228S1267 |
| PIN ,SPIROL ADJUSTER LEFT AND RIGHT | 2 | 43X1015 |
| SCREW DRIVE GEAR ADJUSTER | 1 | 15X1167 |
| ADJUSTER, DIFFERENTIAL RIGHT | 1 | 2214X1012 |
| PLUG DIFFERENTIAL SPECIAL | 3 | 2611435C1 |
| NUT DR GEAR ADJUSTER SCREW | 1 | 1227D472 |
| CONE-TAPER-BEARING | 1 | JHM720249 |
| RING SNAP | 1 | 1229L1624 |
| FORK, SHIFT DIFFERENTIAL LOCK | 1 | 3296A1197 |
| CUP-TAPER-BEARING | 1 | 64700 |
| WASHER, FLAT PINION SHAFT WITH NUT 3" O.D. X 1.78" I.D. X .19" THICK | 1 | 264663C1 |
| BEARING CUP DIFFERENTIAL LEFT | 1 | JHM720210 |
| SEAL, OIL PINION | 1 | 2590713C1 |
| PINIONCAGE | 1 | A3226V1010 |
| PIN ROLL SPRING RETAINING | 1 | 43X1006 |
| SHAFT SHIFT FORK DIFFERENTIAL LOCK | 1 | 2244Z52 |
| COLLAR, SHIFT CLUTCH 35T O.D. | 1 | 3107A1041 |
| TUBE-AIR CYLINDER | 1 | 3196F32 |
| SET, BEARING SPACER DIFFERENTIAL PINION GEAR | 1 | 1694579C91 |
| SPRING SHIFT SHAFT | 1 | 2258L714 |
CROSS REFERENCES
- MERITOR A3200J1752430
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
