2593362C91

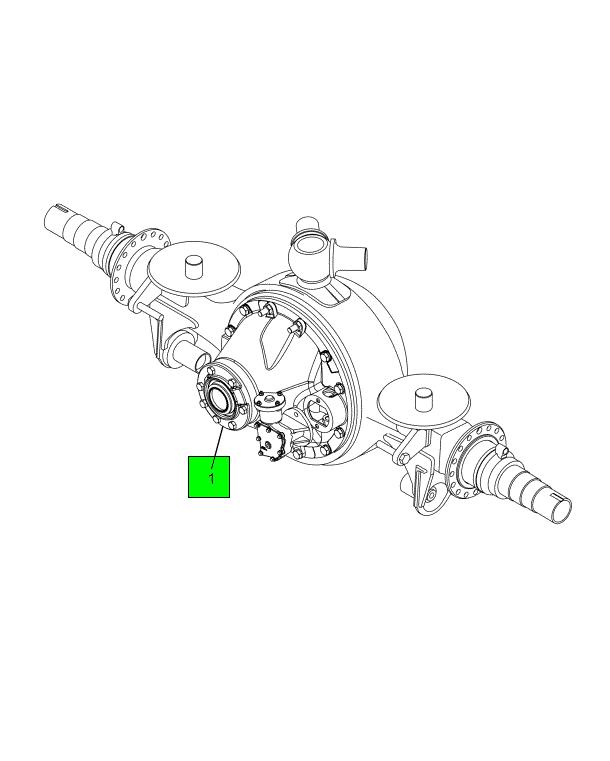

DIFFERENTIAL, SINGLE REDUCTION 5.86:1 RATIO 14ASA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$6,699.95
$8,039.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
DIFFERENTIAL, SINGLE REDUCTION 5.86:1 RATIO 14ASA
Weight
477 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BEARING, CONE PINION | 1 | FP9278 |
| WASHER, FLAT | 8 | 2500348C1 |
| WASHER, FLAT METRIC 12 MM | 8 | 1696019C1 |
| BOLT M6 | 1 | 30192R1 |
| BOLT 12 MM X 45 MM | 8 | 1697666C1 |
| BEARING, ROLLER ASSEMBLY | 1 | 1691630C91 |
| RING, SNAP | 1 | 184110H1 |
| CUP, BEARING OUTER PINION | 1 | TMH715311 |
| BEARING, CONE PINION | 1 | FPH715334 |
| BOLT M10 X 50 MM | 1 | 1696584C1 |
| NUT, ADJUSTER SCREW | 1 | 680053R1 |
| GEAR SET, RING AND PINION DIFFERENTIAL 5.86:1 | 1 | 1696263C91 |
| WASHER, FLAT PINION SHAFT WITH NUT 3" O.D. X 1.78" I.D. X .19" THICK | 1 | 264663C1 |
| NUT, HEXAGON LOCK PINION | 1 | 1685173C1 |
| NUT, HEXAGON LOCK METRIC | 16 | 1691622C1 |
| BOLT, DRIVE GEAR TO CASE | 16 | 1691629C1 |
| WASHER, BOLT CARRIER TO HOUSING | 16 | 226846R1 |
| CASE, DIFFERENTIAL 4.56 AND 7.40 RATIO | 1 | 2504332C91 |
| SPIDER, DIFFERENTIAL | 1 | 1653981C91 |
| GEAR SET, SIDE AND PINION DIFFERENTIAL | 1 | 1653986C91 |
| GEAR, PINION DIFFERENTIAL | 4 | 1653974C1 |
| WASHER, THRUST PINION GEAR | 4 | 1653953C1 |
| GEAR, DIFFERENTIAL SIDE | 2 | 2234H1438 |
| GEAR, DIFFERENTIAL SIDE | 2 | 1653975C1 |
| WASHER, THRUST SIDE GEAR | 2 | 1653954C1 |
| BOLT, METRIC M16 X 110 MM | 12 | 1670306C1 |
| WASHER, FLAT | 12 | 1696250C1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUP | 1 | 2504321C91 |
| CUP, BEARING DIFFERENTIAL | 1 | FP64700 |
| BEARING, CONE DIFFERENTIAL | 1 | FP64450 |
| CUP, BEARING | 1 | FPJHM720210 |
| BEARING, CONE | 1 | FPJHM720249 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | 2504322C1 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | 2504323C1 |
| SEAL, OIL PINION | 1 | 2502764C1 |
| PIN, SPIROL ADJUSTER LEFT, RIGHT | 2 | 2504324C1 |
| YOKE, SHIFT DIFFERENTIAL LOCK | 1 | 2504326C1 |
| COLLAR, SHIFT CLUTCH | 1 | 2504327C1 |
| SHAFT, SHIFT FORK DIFFERENTIAL LOCK | 1 | 2504328C1 |
| SPRING, SHIFT SHAFT | 1 | 1653977C1 |
| PIN, ROLL SPRING RETAINER | 1 | 1696582C1 |
| O-RING AIR CYLINDER | 1 | 1653983C1 |
| GASKET AIR CYLINDER COVER | 1 | 1671816C1 |
| BOLT, SHIFT CYLINDER | 1 | 1696236C1 |
| BOLT, COVER | 4 | 2504310C91 |
| HARNESS, DIFFERENTIAL LOCK * SWITCH, WARNING LIGHT (ROCKWELL) | 1 | 2606013C91 |
| HARNESS, DIFFERENTIAL LOCK * SWITCH, WARNING LIGHT (ROCKWELL) | 1 | 2026065C91 |
| WASHER, FLAT METRIC | 4 | 1696027C1 |
| GASKET PLUG | 1 | 1671817C1 |
| CUP, BEARING PINION | 1 | FP9220 |
| CYLINDER DIFFERENTIAL SHIFT LOCK | 1 | 2504325C91 |
CROSS REFERENCES
- MERITOR A3200J1752586
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
