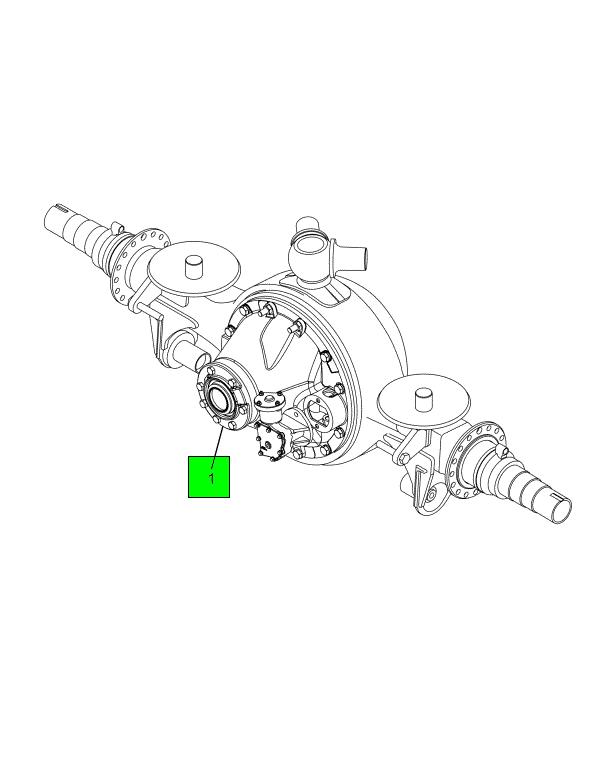

2589302C91
DIFFERENTIAL, REAR 6.14:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$9,399.95
$11,279.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
DIFFERENTIAL RR 6.14 14ASA
Weight
469.98 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS REAR /REAR | 1 | 2504320C91 |
| GASKET PLUG | 1 | 1671817C1 |
| BOLT M10 X 20 | 1 | 30019R1 |
| BOLT M10 X 50 MM | 1 | 1696584C1 |
| HARNESS, DIFFERENTIAL LOCK * SWITCH, WARNING LIGHT (ROCKWELL) | 1 | 2606013C91 |
| HARNESS, DIFFERENTIAL LOCK * SWITCH, WARNING LIGHT (ROCKWELL) | 1 | 2026065C91 |
| WASHER CARRIER TO HOUSING BOLT | 2 | 449671R1 |
| COLLAR, SHIFT CLUTCH | 1 | 2504327C1 |
| SHAFT, SHIFT FORK DIFFERENTIAL LOCK | 1 | 2504328C1 |
| PIN, ROLL SPRING RETAINER | 1 | 1696582C1 |
| SPRING, SHIFT SHAFT | 1 | 1653977C1 |
| O-RING AIR CYLINDER | 1 | 1653983C1 |
| GASKET AIR CYLINDER COVER | 1 | 1671816C1 |
| WASHER, FLAT METRIC | 4 | 1696027C1 |
| BOLT, COVER | 4 | 2504310C91 |
CROSS REFERENCES
- MERITOR A3200J1752614
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
