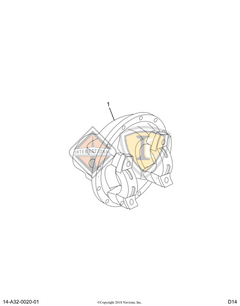

2517410C91
DIFFERENTIAL MERITOR 4.56 RATIO
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,799.95
$6,959.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
023-003-000
OEM Description
DIFFERENTIAL MERITOR 4.56 RATIO
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| GEAR, SIDE DIFFERENTIAL | 1 | 1694570C1 |
| BOLT DIFFERENTIAL BEARING LOCK ADJUSTING | 2 | 2586505C1 |
| WASHER, PINION THRUST HELICAL | 1 | 2594597C1 |
| GEAR DIFFERENTIAL HEL DRIVE RT46160 | 1 | 2610622C1 |
| IAD CASE | 1 | ZDRA3235A2393 |
| RING, SNAP | 1 | 1670296C1 |
| CAGE ASSY | 1 | A23226H1126 |
| CONE, BEARING | 1 | 2516431C91 |
| RING, O | 2 | 2599737C1 |
| SLEEVE, INPUT | 1 | ETN0100290 |
| SLEEVE, INPUT | 1 | 2516435C91 |
| WASHER, BOLT BEARING CAP | 6 | 483361C1 |
| BEARING, CONE REAR /REAR | 1 | FPJLM714149 |
| VALVE, RELIEF | 1 | 1685730C1 |
| SPRING, INPUT SHAFT THRUST | 1 | 1670524C1 |
| COLLAR, SHIFT CLUTCH | 1 | 2506149C1 |
| FORK, AXLE SHIFT | 1 | 3296B1328 |
| SPRING, PUSH ROD BRAKE CHAMBER | 1 | 2258U411 |
| NUT, SHIFTER SHAFT POWER DIVIDER LOCK | 1 | 1696227C1 |
| BOLT | 1 | 1670304C1 |
| ADAPTER LUBE FILTER | 1 | 1670526C1 |
| WASHER, FLAT | 7 | 2500348C1 |
| SPACER, PINION BEARING | 1 | 1670273C1 |
| COVER, BEARING CAGE DRIVE PIN GEAR | 1 | 1670299C1 |
| WASHER NEOPREME LUBERFINER | 5 | 1229K1597 |
| SCREEN, OIL FILTER | 1 | 1670482C1 |
| SHAFT INPUT PD | 1 | 2602454C91 |
| GEAR DIFFERENTIAL HELICAL DRIVEN | 1 | 2607893C1 |
| BOLT/CAPSCREW | 6 | MS208045 2 |
| BOLT HH M10 X 45MM PIN CAGE | 5 | MS2100201 |
| BOLT | 7 | MS2120452 |
| CUP, BEARING | 1 | 2516432C91 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | 1685506C1 |
| ADJUSTER DIFFERENTIAL BEARING LEFT /RIGHT 14051 | 1 | 1681827C1 |
| CONE, BEARING | 1 | 2516434C91 |
| BEARING, CONE PINION | 1 | FPH715343 |
| CONE BEARING MAIN DIFFERENTIAL | 1 | 2613525C1 |
| CONE-BEARING | 1 | A1228Y2053 |
| GEAR SET, DIFFERENTIAL 4.56 | 1 | 2592706C91 |
| NUT, MOUNTING COMPANION FLANGE | 1 | 1670303C1 |
| WASHER, BEARING DIFFERENTIAL PINION GEAR | 1 | 1670271C1 |
| DIFF PART | 1 | A63235E2111 |
| GEAR SET, SIDE AND PINION DIFFERENTIAL | 1 | 1653986C91 |
| BOLT, METRIC M6 X 12 | 1 | 1696022C1 |
| PLUG DIFF CARRIER | 1 | 1250U1217 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 2589354C1 |
| WASHER, BOLT CARRIER TO HOUSING | 1 | 226846R1 |
| CUP, BEARING | 1 | 2516430C91 |
| CUP BEARING MAIN DIFFERENTIAL | 1 | 2613365C1 |
| CUP, BEARING FRONT AND REAR | 1 | FPJLM714110 |
| CUP, BEARING OUTER PINION | 1 | TMH715311 |
| PUMP, DIFFERENTIAL OIL | 1 | 1691772C1 |
CROSS REFERENCES
- MERITOR A103200K2117S456
- MERITOR A103200K2117S456
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
