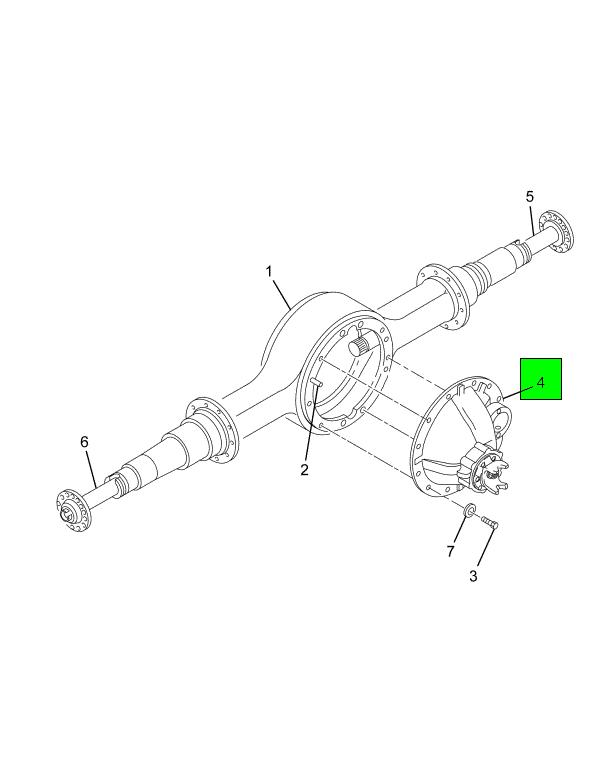

2509426C91
DIFFERENTIAL 4.56/6.36:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,899.95
$7,079.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
012-001-000
OEM Description
DIFFERENTIAL 4.56/6.36 14CVA
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BOLTS | 1 | 2502723C91 |
| STUD, AIR SHIFT CYLINDER | 2 | 3241830R1 |
| WASHER, LOCK 7/16" | 2 | 103322 |
| NUT, HEXAGON SHIFT CONTROL TO CARRIER | 2 | 2502758C1 |
| PLUG, PIN HOLE SHIFT FORK | 2 | 1676176C1 |
| PIN, DOWEL | 1 | 1695352C1 |
| YOKE, SHIFT AXLE | 1 | 1695341C91 |
| NUT, HEXAGON STUD M14 X 1.5 MM | 4 | 2509434C1 |
| NUT, MOUNTING COMPANION FLANGE | 1 | 1692951C1 |
| PLATE, HIGH SPEED CLUTCH DIFFERENTIAL | 1 | 2502750C1 |
| GEAR HELICAL DRIVE | 1 | 1676178C1 |
| WASHER, FLAT | 4 | 1696250C1 |
| CUP, BEARING DIFFERENTIAL | 1 | TM42584 |
| BEARING, CONE DIFFERENTIAL | 1 | TM42381 |
| CUP, BEARING DIFFERENTIAL CASE | 1 | TMJM714110 |
| BEARING, CONE DIFFERENTIAL CASE | 1 | TMJM714149 |
| BOLT M14 X 1.5" X 40 MM | 8 | 2502749C1 |
| CASE, SUPPORT DRIVE GEAR LEFT | 1 | 2509436C1 |
| CASE, SUPPORT DRIVE GEAR 2 SPEED | 1 | 2509439C1 |
| WASHER, THRUST PINION GEAR | 1 | 1694553C1 |
| WASHER PLANET GEAR THRUST | 2 | 2502747C1 |
| SHAFT, PINION PLANET | 4 | 2502741C1 |
| WASHER, THRUST PLANET PINION | 8 | 2502744C1 |
| BOLT, BEARING CAP M16 X 2" X 110 MM | 4 | 2502724C1 |
| PIN, ROLL PLANET PINION | 4 | 2502746C1 |
| GEAR, PLANET PINION | 4 | 2502745C1 |
| BEARING, NEEDLE PILOT PINION SHAFT | 200 | 2502743C1 |
| SPACER, PINION BEARING | 4 | 2502742C1 |
| CASE, DIFFERENTIAL W/BOLTS | 1 | 2502752C91 |
| BOLT, DIFFERENTIAL CASE | 12 | 1695358C1 |
| SPIDER, DIFFERENTIAL | 1 | 127057H1 |
| GEAR, SPIDER DIFFERENTIAL | 4 | 1694557C1 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | 77126R1 |
| GEAR, SIDE DIFFERENTIAL | 1 | 1694569C1 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | 2502754C1 |
| GEAR, SIDE DIFFERENTIAL | 1 | 1694568C1 |
| GEAR SET, RING AND PINION DIFFERENTIAL 4.56:1 | 1 | 1694465C91 |
| BEARING ROLLER SINGLE | 1 | 3208200R91 |
| RING, SNAP PINION GEAR BEARING | 1 | 91081R2 |
| SEAL, OIL | 1 | 573716C91 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 2509443C91 |
| BOLT M12 X 1.75" X 40 MM | 8 | 2502739C1 |
| PIN, ROLL LOCK CONTROL PLATE LEFT | 1 | 2502756C1 |
| WASHER, FLAT METRIC 12 MM | 8 | 1696019C1 |
| CUP, BEARING PINION | 1 | TMM804010 |
| BEARING CONE | 1 | TMM804049 |
| CUP, BEARING PINION | 1 | TM55437 |
| BEARING, CONE PINION | 1 | TM55200C |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | 2502753C1 |
| PIN, COTTER DIFFERENTIAL BEARING ADJUSTER LOCK | 1 | 683774R1 |
| CYLINDER, AIR 2 SPEED TRACTION CONTROL | 1 | ETN0073507 |
| BOOT W/SPRING AIR SHIFT CYLINDER | 1 | DS119855 |
| BOOT W/SPRING AIR SHIFT CYLINDER | 1 | 2502757C1 |
CROSS REFERENCES
- MERITOR A64-3200D1616(4.56-6.36)
- MERITOR A64-3200D1616(4.56-6.36)
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
