2508565C91
DIFFERENTIAL 5.38/7.50:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$4,899.95
$5,879.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
012-001-000
OEM Description
DIFFERENTIAL,5.38/7.50 14CVB

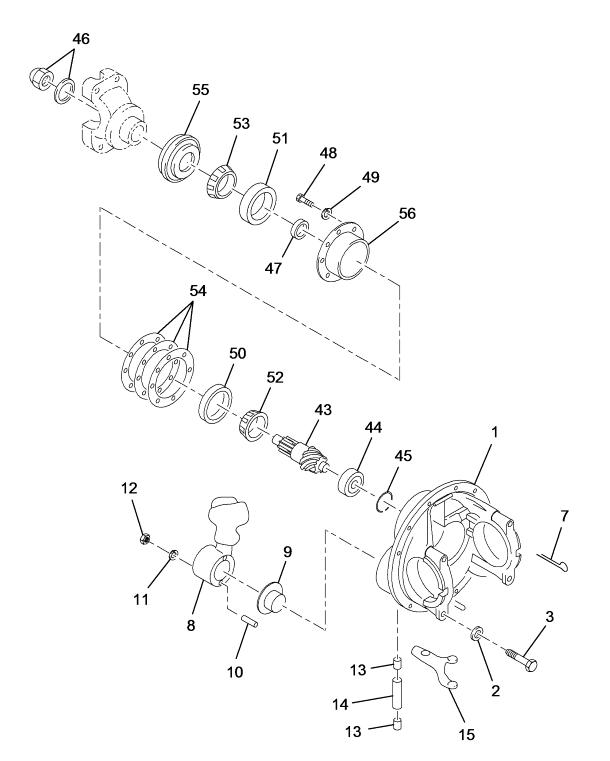

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 2509333C91 |
| STUD, AIR SHIFT CYLINDER | 2 | 3241830R1 |
| WASHER, LOCK 7/16" | 2 | 103322 |
| NUT, HEXAGON SHIFT CONTROL TO CARRIER | 2 | 2502758C1 |
| PLUG, PIN HOLE SHIFT FORK | 2 | 1676176C1 |
| PIN, DOWEL | 1 | 1695352C1 |
| YOKE, SHIFT | 1 | 2509335C91 |
| NUT, HEXAGON M14 X 1.5 MM | 4 | 2503806C1 |
| WASHER, FLAT 14 MM | 4 | 2503805C1 |
| BUSHING, DOWEL CLUTCH PLATE | 4 | 2503804C1 |
| STUD M14 X 1.5 MM | 4 | 2503803C1 |
| WASHER, FLAT | 4 | 1696250C1 |
| PLATE DIFFERENTIAL HIGH SPEED CLUTCH | 1 | 3280H8328 |
| GEAR, SUN DIFFERENTIAL | 1 | 1676586C1 |
| CUP, BEARING | 1 | TM52618 |
| BEARING, CONE | 1 | TM52400 |
| CUP, BEARING DIFFERENTIAL | 1 | TMJM716610 |
| BEARING, CONE DIFFERENTIAL | 1 | TMJM716649 |
| BOLT, DIFFERENTIAL CASE | 8 | 1695359C1 |
| CASE, SUPPORT DRIVE GEAR 2 SPEED LEFT | 1 | 1676600C1 |
| CASE, SUPPORT DRIVE GEAR TWO SPEED RIGHT | 1 | 1695349C1 |
| SHAFT, PLANET PINION | 4 | 2509336C1 |
| BOLT M16 X 130 MM | 4 | 2509334C1 |
| WASHER, THRUST PLANET PINION | 8 | 2502744C1 |
| GEAR, PLANET PINION | 4 | 2509337C1 |
| BEARING, NEEDLE PILOT PINION SHAFT | 200 | 2502743C1 |
| SPACER, NEEDLE BEARING | 4 | 2509338C1 |
| BOLT, DIFFERENTIAL CASE | 12 | 1695358C1 |
| SPIDER, DIFFERENTIAL | 1 | 72347R1 |
| GEAR, HELICAL PINION SHAFT | 4 | 1676580C1 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | 72335R1 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | 1695354C1 |
| GEAR, SIDE DIFFERENTIAL | 1 | 1694563C1 |
| GEAR, SIDE DIFFERENTIAL | 1 | 1694565C1 |
| WASHER, THRUST SIDE GEAR /SUPPORT CASE | 2 | 2509339C1 |
| GEAR SET, RING AND PINION DIFFERENTIAL | 1 | 1681567C91 |
| BEARING, ROLLER | 1 | 1693894C91 |
| RING, SNAP PINION GEAR BEARING | 1 | 91081R2 |
| NUT, MOUNTING COMPANION FLANGE | 1 | 1692951C1 |
| BOLT M12 X 1.75" X 40 MM | 8 | 2502739C1 |
| WASHER, FLAT METRIC 12 MM | 8 | 1696019C1 |
| PIN, ROLL PLANET PINION | 1 | 2502746C1 |
| CUP, BEARING PINION | 1 | TM55437 |
| CUP, BEARING PINION | 1 | TMHM804810 |
| BEARING, CONE PINION | 1 | TM55200C |
| BEARING, CONE PINION | 1 | TMHM804846 |
| SEAL, OIL | 1 | 573716C91 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 2509342C91 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | 1695353C1 |
| PIN, COTTER DIFFERENTIAL BEARING ADJUSTER LOCK | 1 | 683774R1 |
| CYLINDER, AIR 2 SPEED TRACTION CONTROL | 1 | ETN0073507 |
| BOOT W/SPRING AIR SHIFT CYLINDER | 1 | DS119855 |
| BOOT W/SPRING AIR SHIFT CYLINDER | 1 | 2502757C1 |
CROSS REFERENCES
- MERITOR A78-3200D1564(5.38-7.50)
- MERITOR A78-3200D1564(5.38-7.50)
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
