2508339C91

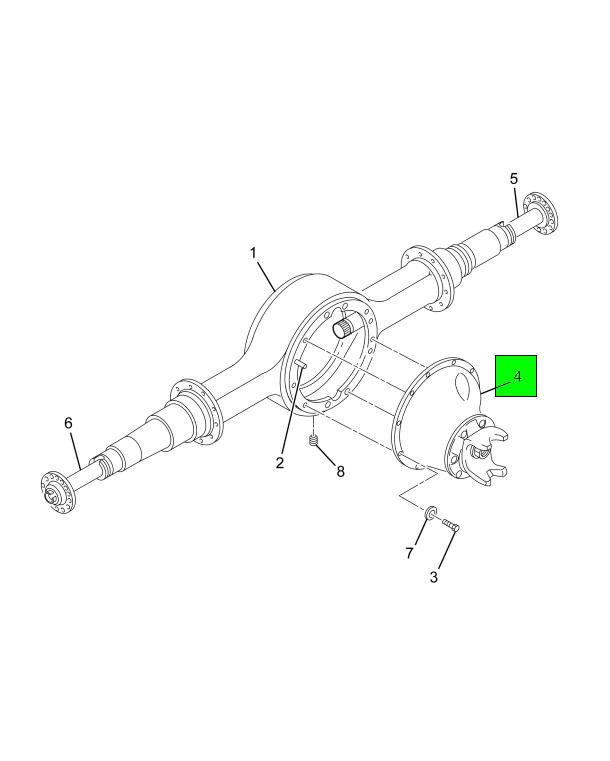

DIFFERENTIAL, REAR REAR 3.36:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$3,299.95
$3,959.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
012-001-000
OEM Description
DIFFERENTIAL, REAR REAR 3.36:1

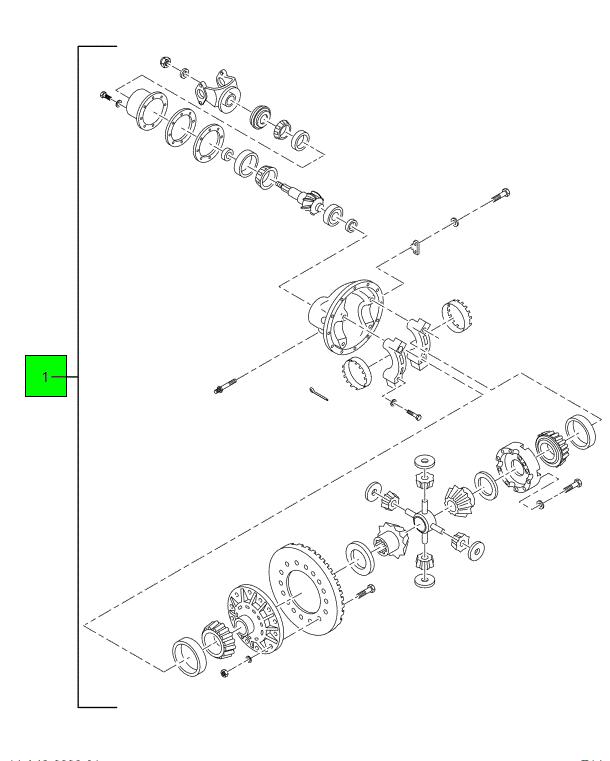

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL | 1 | 2508426C91 |
| WASHER, FLAT BEARING CAP | 4 | 1670535C1 |
| CUP, BEARING OUTER PINION | 1 | TMH715311 |
| CUP, BEARING | 1 | TM72487 |
| CASE, DIFFERENTIAL 3.42-4.11 RATIO | 1 | 1670487C91 |
| BOLT, DRIVE GEAR | 12 | 1670534C1 |
| WASHER CARRIER TO HOUSING BOLT | 12 | 449671R1 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 4 | 1696376C1 |
| NUT, HEXAGON LOCK METRIC | 12 | 1691622C1 |
| GEAR SET, RING AND PINION DIFFERENTIAL 3.36:1 | 1 | 2508418C91 |
| WASHER, PINION SHAFT 2.38" O.D. X 1.53" I.D. X .12" THICK | 1 | 452436C1 |
| NUT, LOCK INPUT /OUTPUT SHAFT | 1 | 2000231C1 |
| WASHER, THRUST SIDE GEAR | 2 | 1696379C1 |
| GEAR, DIFFERENTIAL SIDE | 2 | 2500559C91 |
| GEAR, DIFFERENTIAL SIDE | 2 | 1692755C1 |
| SPIDER, DIFFERENTIAL | 1 | 72347R1 |
| GEAR, HELICAL PINION SHAFT | 4 | 1676580C1 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | 72335R1 |
| BEARING, CUP DIFFERENTIAL SIDE | 2 | 2504871C1 |
| BEARING, CONE DIFFERENTIAL SIDE | 2 | 2504870C91 |
| ADJUSTER DIFFERENTIAL BEARING LEFT AND RIGHT | 2 | 1670522C1 |
| SEAL, OIL PINION | 1 | 2502763C1 |
| WASHER THRUST SCREW NUT | 1 | 1696804C1 |
| SCREW, THRUST DRIVE GEAR | 1 | 2508423C1 |
| BLOCK, THRUST DRIVE GEAR | 1 | 2508424C1 |
| WASHER, FLAT CARRIER TO HOUSING | 16 | 213524R1 |
| BOLT | 16 | 1685290C1 |
| BEARING, CONE | 1 | TMH715334 |
| BEARING, CONE | 1 | TM72225C |
| PIN, COTTER DIFFERENTIAL BEARING ADJUSTER LOCK | 2 | 683774R1 |
| FITTING, SOCKET HEAD PLUG 3/4" NPT | 1 | 9409949 |
CROSS REFERENCES
- MERITOR A3200W2051(3.36)
- MERITOR A3200W2051(3.36)
- MERITOR A3200W2051336
- MERITOR A3200W2051336
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
