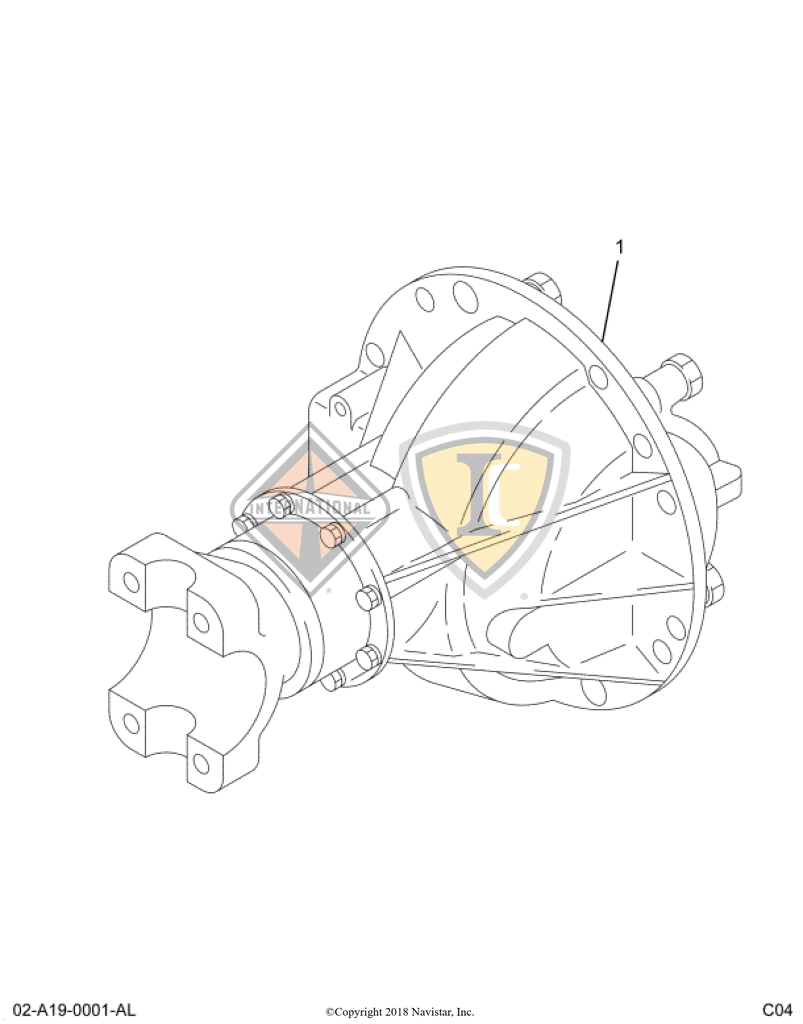

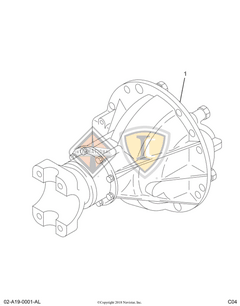

2507922C91
DIFFERENTIAL 7.17:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,999.95
$7,199.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
012-001-000
OEM Description
DIFFERENTIAL FD 7.17 02ESA B C
Weight
198.41 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| WASHER, FLAT 2.19" O.D. X 1.28" I.D. X .219" THICK | 1 | 3239318R1 |
| PIN, COTTER DIFFERENTIAL BEARING ADJUSTER LOCK | 1 | 683774R1 |
| CUP, BEARING | 1 | TMJM511910 |
| BEARING, CONE | 1 | TM3994 |
| CASE, DIFFERENTIAL W/BOLTS 4.30 RATIO | 1 | 2508074C91 |
| CASE, DIFFERENTIAL W/BOLTS 4.56 UP | 1 | 2508075C91 |
| BOLT, DRIVE GEAR TO CASE | 12 | 2508071C1 |
| NUT, HEXAGON LOCK DRIVE GEAR BOLT | 12 | 2508072C1 |
| WASHER, FLAT CARRIER TO HOUSING | 12 | 213524R1 |
| WASHER, THRUST SIDE GEAR | 2 | 2508078C1 |
| GEAR, SIDE DIFFERENTIAL 1 61/64" X 38 SPLINES | 2 | 2508079C1 |
| WASHER, THRUST PINION GEAR | 4 | 2508082C1 |
| SEAL, OIL | 1 | 573716C91 |
| GEAR, PINION DIFFERENTIAL | 4 | 2508081C1 |
| SPIDER, DIFFERENTIAL | 1 | 2508080C1 |
| BEARING, CONE | 1 | TM34306 |
| CUP, BEARING | 1 | TM34478 |
| BOLT, DIFFERENTIAL CASE | 12 | 1670496C1 |
| BOLT, DIFFERENTIAL CASE | 12 | 2508076C1 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | 2508067C1 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER | 1 | 1653951C1 |
| BOLT M8 X 1.25" X 20MM | 2 | 2508069C1 |
| WASHER, FLAT AXLE REAR | 2 | 1696020C1 |
| BEARING, CONE PINION | 1 | TMHM804846 |
| SCREW, THRUST DIFFERENTIAL | 1 | 2508068C1 |
| WASHER THRUST SCREW NUT | 1 | 1696804C1 |
| CUP, BEARING PINION | 1 | TMHM804810 |
| BOLT M12 X 1.75" X 40 MM | 8 | 2502739C1 |
| WASHER, FLAT METRIC 12 MM | 8 | 1696019C1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 2508070C91 |
| NUT, "U" JOINT | 1 | 1689588C1 |
| CUP, BEARING PINION | 1 | TM55437 |
| BEARING, CONE PINION | 1 | TM55200C |
| GEAR SET, RING AND PINION DIFFERENTIAL 7.17:1 | 1 | 1694448C91 |
| BEARING, ASSEMBLY REAR PINION | 1 | 2508123C91 |
| RING, SNAP | 1 | 1662650C1 |
| CARRIER, DIFFERENTIAL W/CAPS | 1 | 2508060C91 |
| BOLT M90 X 2" X 90 MM | 4 | 2508061C1 |
| WASHER CARRIER TO HOUSING BOLT | 4 | 449671R1 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | 2508066C1 |
CROSS REFERENCES
- MERITOR A19-3200G1749(7.17)
- MERITOR A19-3200G1749(7.17)
- MERITOR A193200G1749717
- MERITOR A193200G1749717
