2507170C91

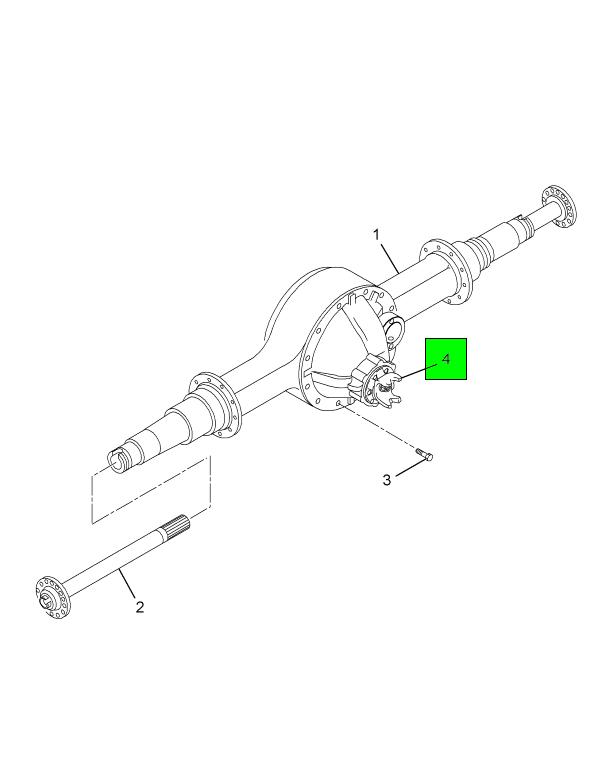

DIFFERENTIAL, REAR 3.07:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,049.95
$2,459.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
027-015-000
OEM Description
DIFFERENTIAL-RR PB 3.07 14ADN
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 2507168C91 |
| RIVET DIFFERENTIAL DRIVE GEAR | 12 | 113271R1 |
| NUT, MOUNTING COMPANION FLANGE | 1 | 1696471C1 |
| SEAL, OIL PINION AND INNER SHAFT | 1 | DS127591 |
| SEAL, OIL PINION AND INNER SHAFT | 1 | ETN0127591 |
| CUP, BEARING | 2 | FP3984 |
| CUP, BEARING | 2 | FP3920 |
| ADJUSTER DIFFERENTIAL BEARING LEFT /RIGHT 14ADP | 2 | 1697161C1 |
| LOCK, DIFFERENTIAL BEARING ADJUSTER LEFT, RIGHT | 2 | 1697162C1 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 4 | 1697137C1 |
| BOLT 3/8" X 1" | 2 | 26310R1 |
| BEARING, CONE PINION | 1 | FP72225C |
| BEARING, CONE | 2 | ST2007A |
| BEARING, CUP PINION | 1 | FP72487 |
| CUP, BEARING PINION | 1 | FP55437 |
| BEARING, CONE PINION | 1 | TM55175C |
| BEARING, CONE PINION | 1 | 288321C91 |
| BEARING, CONE | 1 | FP55175C |
| WASHER, LOCK 19/32" X 1-3/16" X 1/8" | 4 | 25879R1 |
| SPACER, PINION BEARING .307" | 1 | 1697995C1 |
| BOLT, DIFFERENTIAL CASE 1/2" X 3 1/2" UNC | 8 | 1697143C1 |
| WASHER, THRUST DIFFERENTIAL | 4 | 463413C1 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 2 | 86233H |
| CUP, BEARING | 1 | 381926C91 |
| GEAR SET, RING AND PINION DIFFERENTIAL 3.07:1 | 1 | 1697148C91 |
CROSS REFERENCES
- DANA 360CA107-1X
- DANA 360CA107-1X
- FORDPRD 4C4O 4026FPA
- FORDPRD 4C4O 4200AZA
- FORDSVC 4C4Z 4200Y
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
