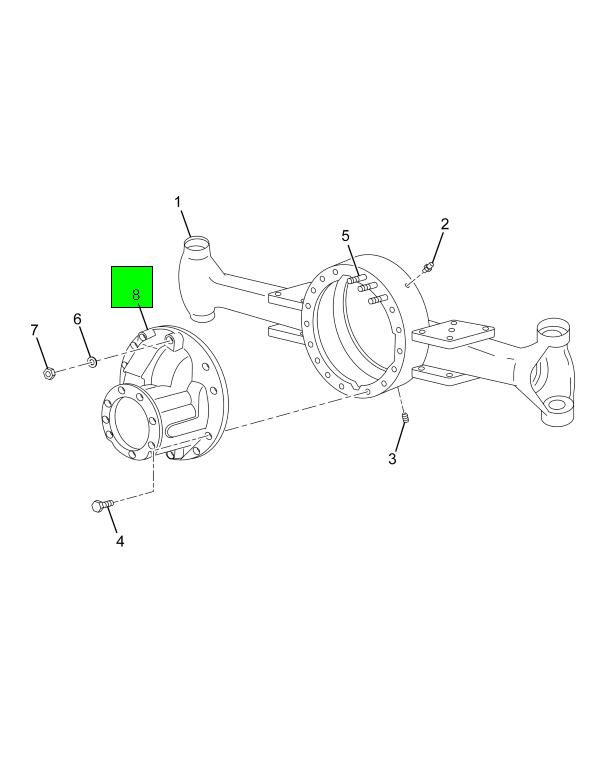

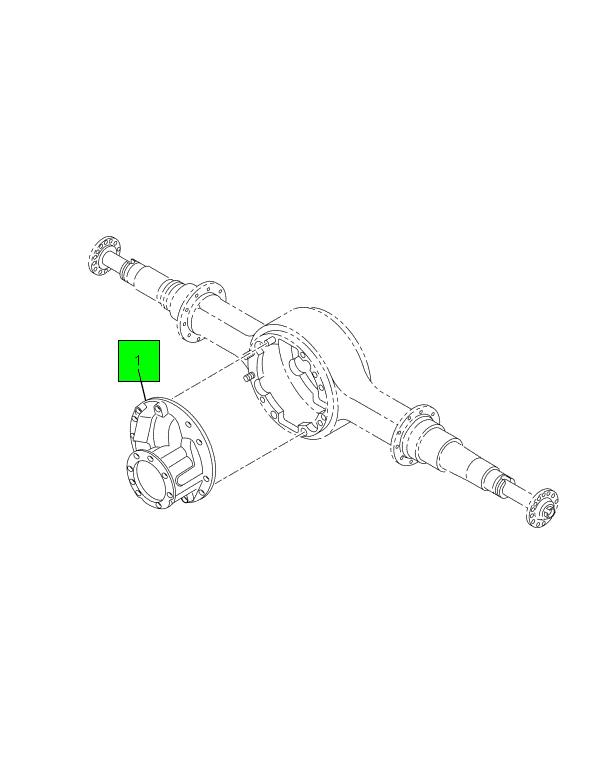

2506804C91
DIFFERENTIAL, REAR 5.13:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$4,999.95
$5,999.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
012-001-000
OEM Description
DIFFERENTIAL RR 5.13 14ARX Z
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| NUT, HEXAGON LOCK PINION | 1 | 1685173C1 |
| BEARING, CONE | 1 | TM9278 |
| GEAR SET SINGLE REDUCTION DIFFERENTIAL 5.13:1 | 1 | 1699143C91 |
| BEARING, ROLLER ASSEMBLY | 1 | 1691630C91 |
| BOLT, ADJUSTING DRIVE GEAR | 1 | 285543C2 |
| NUT, ADJUSTER SCREW | 1 | 680053R1 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 2508099C91 |
| WASHER, FLAT CAP BOLT CARRIER BEARING | 4 | 1653989C1 |
| BOLT, ADJUSTING LOCK M8 X 20 | 4 | 1691633C1 |
| WASHER, FLAT PINION SHAFT WITH NUT 3" O.D. X 1.78" I.D. X .19" THICK | 1 | 264663C1 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | 2504323C1 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | 2504322C1 |
| PIN, SPIROL ADJUSTER LEFT, RIGHT | 2 | 2504324C1 |
| CUP, BEARING | 1 | TM64700 |
| BEARING, CONE | 1 | TM64450 |
| COVER, SHIFT HOLE OPENING | 1 | 1653980C1 |
| WASHER, FLAT METRIC | 4 | 1696027C1 |
| BOLT, AXLE REAR | 4 | 1695997C1 |
| BOLT, METRIC M6 X 12 | 1 | 1696022C1 |
| SEAL, OIL PINION | 1 | 2502764C1 |
| WASHER, FLAT | 1 | 1696250C1 |
| CUP, BEARING | 1 | FPJHM720210 |
| BEARING, CONE | 1 | TMJHM720249 |
| NUT, HEXAGON LOCK METRIC | 16 | 1691622C1 |
| WASHER, BOLT CARRIER TO HOUSING | 16 | 226846R1 |
| BOLT, DRIVE GEAR TO CASE | 16 | 1691629C1 |
| CASE, DIFFERENTIAL 4.56 AND 7.40 RATIO | 1 | 2504332C91 |
| WASHER, THRUST SIDE GEAR | 2 | 1653954C1 |
| GEAR, DIFFERENTIAL SIDE | 2 | 2234H1438 |
| GEAR, DIFFERENTIAL SIDE | 2 | 1653975C1 |
| WASHER, THRUST PINION GEAR | 4 | 1653953C1 |
| BEARING, CONE PINION | 1 | FPH715334 |
| GEAR DIFFERENTIAL SPIDER RS23160 | 4 | 1694556C1 |
| SPIDER, DIFFERENTIAL | 1 | 1653981C91 |
| BOLT, METRIC M16 X 110 MM | 12 | 1670306C1 |
| BOLT 12 MM X 45 MM | 8 | 1697666C1 |
| WASHER, FLAT METRIC 12 MM | 8 | 1696019C1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUP | 1 | 2504321C91 |
| S PIN, DOWEL BEARING CAP | 2 | 73311R1 |
CROSS REFERENCES
- MERITOR A13200J1752513
- MERITOR A13200J1752513
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
