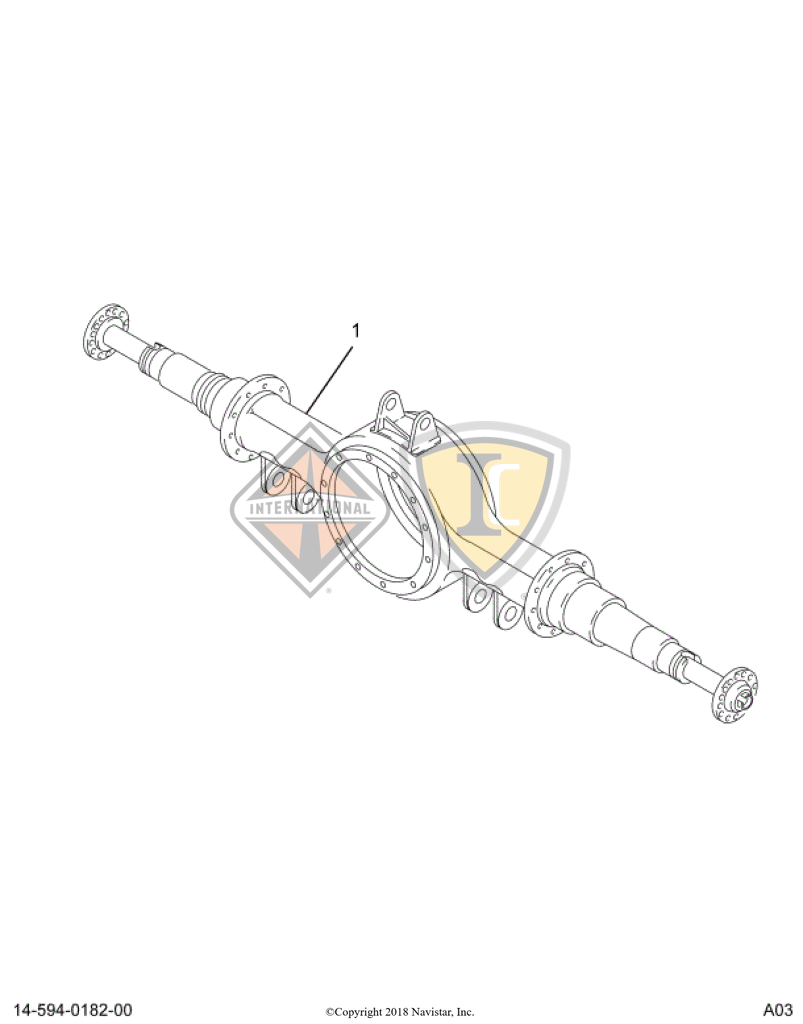

2506737C91
DIFFERENTIAL, SINGLE RED 6.17:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$16,999.95
$20,399.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
012-001-000
OEM Description
DIFFERENTIAL, SINGLE RED 6.17:1
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| NUT, FLANGE LOCK 1 1/2"-12UNF-2B | 1 | 493840C1 |
| WASHER, FLAT CARRIER TO HOUSING | 8 | 213524R1 |
| BEARING, CONE PINION | 1 | FPH715343 |
| BEARING, ROLLER PINION | 1 | FPMU1308TM |
| BEARING, ROLLER PINION | 1 | 76620R91 |
| GEAR SET, RING AND PINION DIFFERENTIAL 6.17:1 | 1 | 2506844C91 |
| RETAINER, PINION GEAR INNER BEARING | 1 | 104208R1 |
| RING, SNAP ALL GIVE DESCRIPTION SNAP | 1 | 454331R1 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 596564C91 |
| WASHER, PINION SHAFT 2.38" O.D. X 1.53" I.D. X .12" THICK | 1 | 452436C1 |
| FITTING, SOCKET HEAD PLUG 3/4" NPT | 1 | 9409949 |
| ADJUSTER DIFFERENTIAL BEARING | 2 | 192278R1 |
| PIN, COTTER ADJUSTING RING LOCK | 2 | 306186C1 |
| CAP, DIFFERENTIAL CARRIER BEARING | 2 | 69196R1 |
| WASHER CARRIER BEARING CAP | 4 | 232359R1 |
| BOLT 7/8" X 5 1/2" | 4 | 25516R1 |
| NUT, HEXAGON | 1 | 1662661C1 |
| BOLT, ADJUSTING DRIVE GEAR | 1 | 881046C1 |
| BEARING, TAPERED ROLLER | 2 | TM47820 |
| BEARING, TAPERED ROLLER | 2 | TM47890 |
| CASE, DIFFERENTIAL 4.89 AND 7.40 RATIO | 1 | 596565C91 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 2 | 56030R1 |
| GEAR, DIFFERENTIAL SIDE | 2 | 594113C1 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | 56028R1 |
| GEAR, SPIDER DIFFERENTIAL | 4 | 56027R3 |
| SPIDER, MAIN DIFFERENTIAL | 1 | 56026R1 |
| SEAL, OIL PINION | 1 | 2506802C1 |
| BOLT 5/8" X 2 1/2" UNC | 12 | 484696C1 |
| WASHER CARRIER TO HOUSING BOLT | 12 | 449671R1 |
| BOLT 5/8" X 3 1/2" | 8 | 24880R1 |
| BOLT 5/8" X 2 1/2" | 4 | 24877R1 |
| NUT, LOCK 5/8" UNF | 12 | 9411658 |
| WASHER DIFFERENTIAL PINION GEAR BEARING OUTER | 1 | 69414R1 |
| BEARING CONE&ROLLERS | 1 | FPH715334 |
| BEARING CONE&ROLLERS | 1 | 879767R91 |
| CUP, BEARING OUTER PINION | 1 | TMH715311 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 573718C91 |
| NUT, SPINDLE REAR, INNER | 2 | 236841R1 |
| FITTING, SOCKET HEAD PLUG 1/2" NPT | 1 | 445751 |
| NUT, OUTER REAR WHEEL SPINDLE | 2 | 68535R1 |
| WASHER WHEEL SPINDLE NUT | 2 | 1699227C91 |
| WASHER WHEEL SPINDLE NUT | 2 | 2500909C1 |
| BEAM, I FRONT AXLE FF961 | 2 | 2506602C1 |
| BOLT 1/2" X 1 3/4" | 8 | 24863R1 |
CROSS REFERENCES
- MERITOR D3200C1433617
- MERITOR D3200C1433617
- MERITOR D513200C1433617
- MERITOR D513200C1433617
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
