2506562C91
DIFFERENTIAL NO SPIN 2.93:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$4,899.95
$5,879.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
012-001-000
OEM Description
DIFFERENTIAL NS 2.93 RS17145

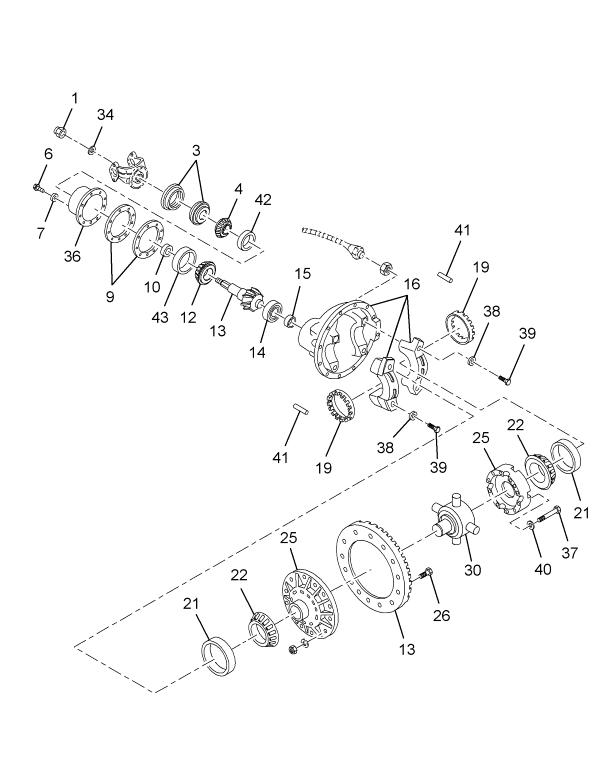

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| NUT, LOCK INPUT /OUTPUT SHAFT | 1 | 2000231C1 |
| BEARING, CONE PINION | 1 | FP72212C |
| GEAR SET, RING AND PINION DIFFERENTIAL 2.93:1 | 1 | 1694045C91 |
| BEARING PINION | 1 | 1111341C91 |
| RING, SNAP PINION GEAR BEARING | 1 | 91081R2 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 1670359C91 |
| ADJUSTER DIFFERENTIAL BEARING LEFT AND RIGHT | 2 | 1670522C1 |
| CUP, BEARING | 2 | TMJM716610 |
| CUP, BEARING | 2 | FPJM716610 |
| BEARING, CONE | 2 | FPJM716649 |
| CASE, DIFFERENTIAL 2.64-2.93 RATIO | 1 | 1694277C91 |
| BOLT, HEXAGON HEAD M16 X 60 | 12 | 934738R1 |
| SEAL OIL PINION | 1 | 2590277C1 |
| SEAL OIL PINION | 1 | 596600C91 |
| DIFFERENTIAL NO SPIN | 1 | 1685926C91 |
| WASHER, PINION SHAFT 2.38" O.D. X 1.53" I.D. X .12" THICK | 1 | 452436C1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 1670483C91 |
| BOLT | 16 | 1685290C1 |
| WASHER, FLAT BEARING CAP | 4 | 1670535C1 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 4 | 1696376C1 |
| BEARING, CONE PINION | 1 | FP55206C |
| PIN, COTTER DIFFERENTIAL BEARING ADJUSTER LOCK | 2 | 683774R1 |
| BEARING, CUP PINION | 1 | FP72487 |
| CUP, BEARING PINION | 1 | FP55437 |
| BOLT, CARRIER 12MM X 45MM L | 8 | MS2120452 |
| BOLT, CARRIER 12MM X 45MM L | 8 | 1696018C1 |
| WASHER, FLAT CARRIER TO HOUSING | 8 | 213524R1 |
| WASHER CARRIER TO HOUSING BOLT | 1 | 449671R1 |
| NUT, HEXAGON LOCK METRIC | 1 | 1691622C1 |
CROSS REFERENCES
- FORDPRD BC4O 4200ACA
- FORDSVC BC4Z 4200AD
- MERITOR B93200L1676293
- MERITOR B93200L1676293
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
