2504451C91
DIFFERENTIAL, REAR REAR 4.33:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,599.95
$3,119.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
027-015-000
OEM Description
DIFFERENTIAL, REAR REAR 4.33:1

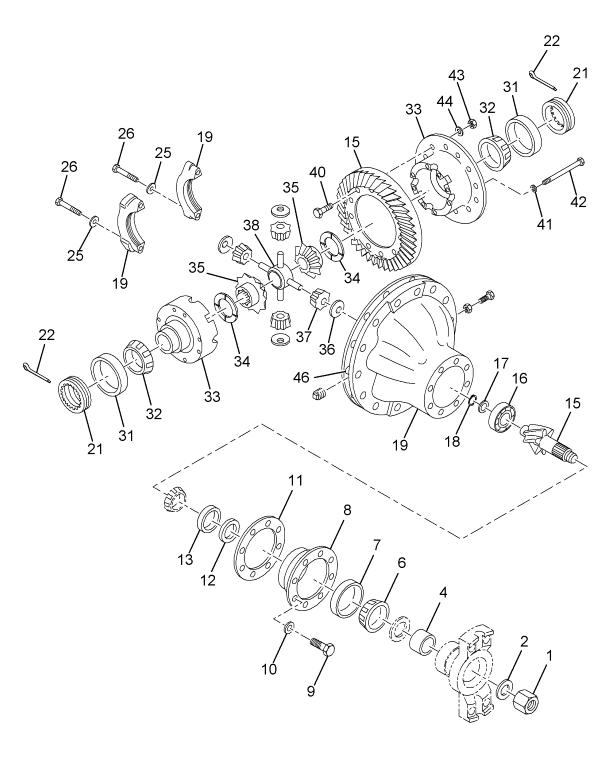

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| NUT, FLANGE LOCK 1 1/2"-12UNF-2B | 1 | 493840C1 |
| BEARING, CONE | 1 | FPH715343 |
| BEARING, CONE | 1 | 860954R91 |
| GEAR SET, DIFFERENTIAL REAR REAR | 1 | 1671870C91 |
| GEAR SET, DIFFERENTIAL REAR REAR | 1 | 496166C91 |
| BEARING, ROLLER PINION | 1 | FPMU1308TM |
| BEARING, ROLLER PINION | 1 | 76620R91 |
| RETAINER, PINION GEAR INNER BEARING | 1 | 104208R1 |
| RING, SNAP ALL GIVE DESCRIPTION SNAP | 1 | 454331R1 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 596564C91 |
| WASHER, PINION SHAFT 2.38" O.D. X 1.53" I.D. X .12" THICK | 1 | 452436C1 |
| ADJUSTER DIFFERENTIAL BEARING | 2 | 192278R1 |
| PIN, COTTER ADJUSTING RING LOCK | 2 | 306186C1 |
| WASHER CARRIER BEARING CAP | 4 | 232359R1 |
| BOLT 7/8" X 5 1/2" | 4 | 25516R1 |
| CUP TAPERED ROLLER | 2 | 47820 |
| CONE AND ROLLERS TA | 2 | 47890 |
| CASE, DIFFERENTIAL 3.73 AND 4.63 RATIO | 1 | 596566C91 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 2 | 56030R1 |
| GEAR, DIFFERENTIAL SIDE | 2 | 594113C1 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | 56028R1 |
| GEAR, SPIDER DIFFERENTIAL | 4 | 56027R3 |
| SPIDER, MAIN DIFFERENTIAL | 1 | 56026R1 |
| SEAL, OIL PINION | 1 | 2506802C1 |
| BOLT 5/8" X 2 1/2" UNC | 12 | 484696C1 |
| WASHER CARRIER TO HOUSING BOLT | 12 | 449671R1 |
| BOLT 5/8" X 2 1/2" | 4 | 24877R1 |
| BOLT 5/8" X 3 1/2" | 8 | 24880R1 |
| NUT, LOCK 5/8" UNF | 12 | 9411658 |
| S PIN, DOWEL BEARING CAP | 2 | 73311R1 |
| BEARING CONE&ROLLERS | 1 | FPH715334 |
| BEARING CONE&ROLLERS | 1 | 879767R91 |
| CUP, BEARING | 2 | FPH715311 |
| CUP, BEARING | 2 | 107580R1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 573718C91 |
| BOLT 1/2" X 1 3/4" | 8 | 24863R1 |
CROSS REFERENCES
- MERITOR D3200C1433433
- MERITOR D3200C1433433
- MERITOR D473200C1433433
- MERITOR D473200C1433433
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
