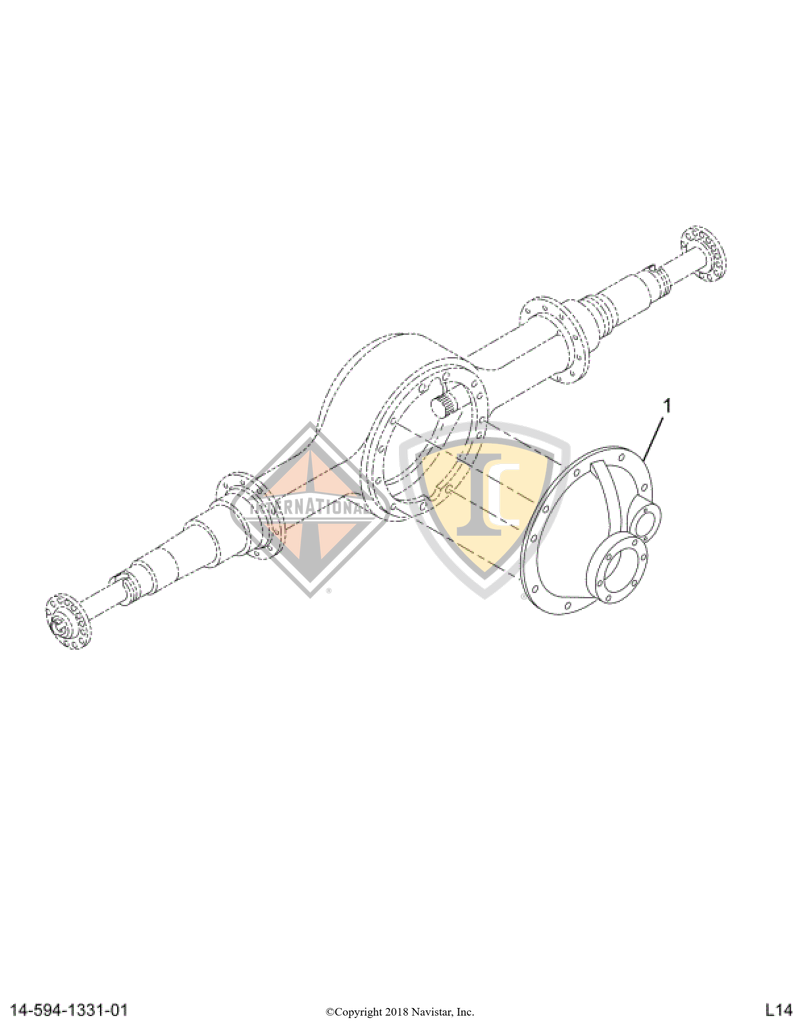

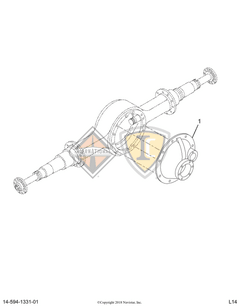

2504431C91
DIFFERENTIAL 5.38/7.33:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$6,599.95
$7,919.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DIFFERENTIAL 5.38/7.33 14CEN
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 2503787C91 |
| S PIN, DOWEL BEARING CAP | 4 | 73311R1 |
| WASHER, THRUST SIDE GEAR | 4 | 1694550C1 |
| SPIDER, DIFFERENTIAL | 1 | 1694575C1 |
| GEAR, SIDE DIFFERENTIAL | 1 | 1694572C1 |
| GEAR, SIDE DIFFERENTIAL | 1 | 1694571C1 |
| WASHER, THRUST PINION GEAR | 2 | 1694551C1 |
| BOLT, DIFFERENTIAL CASE | 12 | 1695358C1 |
| SHAFT, PLANET PINION GEAR | 4 | 2503792C1 |
| SPACER, PINION PLANET | 4 | 2503793C1 |
| BEARING, NEEDLE NEEDLE PINION SHAFT | 4 | 2503794C1 |
| WASHER, THRUST PLANET PINION | 8 | 2503795C1 |
| GEAR, PLANET PINION | 4 | 2503796C1 |
| PIN, ROLL PLANET PINION | 4 | 2502746C1 |
| CASE, SUPPORT DIFFERENTIAL RIGHT | 1 | 2503797C1 |
| CASE, SUPPORT DIFFERENTIAL LEFT | 1 | 2503798C1 |
| BOLT M14 X 1.5" X 95" | 12 | 2503799C1 |
| BEARING, CONE | 1 | FPJM716649 |
| BEARING, CONE DIFFERENTIAL | 1 | FPJP12049 |
| CUP, BEARING | 1 | TMJM716610 |
| CUP, BEARING | 1 | FPJM716610 |
| BOLT, BEARING CAP M20 X 2.5" X 130 MM | 4 | 2503788C1 |
| CUP, BEARING DIFFERENTIAL | 1 | FPJP12010 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | 1695353C1 |
| ADJUSTER DIFFERENTIAL BEARING LEFT | 1 | 2503801C1 |
| PIN, COTTER DIFFERENTIAL BEARING ADJUSTER PIN, COTTER | 1 | 2502755C1 |
| GEAR, SUN DIFFERENTIAL | 1 | 2503800C1 |
| PLATE, CLUTCH LOW SPEED | 1 | 2503802C1 |
| STUD M14 X 1.5 MM | 4 | 2503803C1 |
| BUSHING, DOWEL CLUTCH PLATE | 4 | 2503804C1 |
| WASHER, LOCK, 1/4" REG STEEL /ZNC 1/4" | 4 | 120380 |
| WASHER, FLAT 14 MM | 4 | 2503805C1 |
| WASHER, FLAT BEARING CAP | 4 | 1670535C1 |
| NUT, HEXAGON M14 X 1.5 MM | 4 | 2503806C1 |
| YOKE, SHIFT | 1 | 2503807C91 |
| PIN, SHIFT FORK | 2 | 1695352C1 |
| PIN, SHIFT FORK | 2 | 2503808C1 |
| PLUG, PIN HOLE SHIFT FORK | 2 | 1676176C1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUP | 1 | 2503812C91 |
| CUP, BEARING PINION | 1 | FP55437 |
| CUP, BEARING PINION | 1 | FP78551 |
| GEAR SET, RING AND PINION DIFFERENTIAL 5.38:1 | 1 | 1694490C91 |
| BEARING, CONE PINION | 1 | FP55206C |
| BEARING, CONE PINION | 1 | FP78225C |
| NUT, HEXAGON PINION M39 | 1 | 2503789C1 |
| SEAL, OIL PINION | 1 | 2502763C1 |
| BEARING, ROLLER | 1 | 1693894C91 |
| RING, SNAP PINION GEAR BEARING | 1 | 91081R2 |
| BOLT M12 X 1.75" X 40 MM | 8 | 2502739C1 |
| WASHER, FLAT METRIC 12 MM | 8 | 1696019C1 |
| SCREW, THRUST DRIVE GEAR | 1 | 2503824C1 |
| CASE, DIFFERENTIAL W/BOLTS | 1 | 2503790C91 |
| NUT, HEXAGON JAM THRUST SCREW | 1 | 2503825C1 |
| STUD, AIR SHIFT CYLINDER | 2 | 3241830R1 |
| WASHER, LOCK 7/16" | 2 | 103322 |
| NUT, HEXAGON SHIFT CONTROL TO CARRIER | 2 | 2502758C1 |
| CYLINDER, AIR TWO SPEED SHIFT | 1 | 2503826C91 |
| SHAFT, SLIDING CLUTCH SHIFT DIFFERENTIAL | 1 | 2503828C1 |
| SPRING, SHIFT SHAFT | 1 | 1653977C1 |
| RING, "O" STOP ARM LEVER PISTON | 1 | 2503829C1 |
| RING FELT PISTON | 1 | 2503830C1 |
| GASKET SHIFT CYLINDER COVER | 1 | 2503831C1 |
| RING, SHIFT CYLINDER HIGH SPEED | 1 | 2503827C1 |
| WASHER.FLAT 12MM | 8 | 42X1085 |
| BOLT M6 X 1 MM X 6 MM | 4 | 2503832C1 |
| GEAR, SPIDER DIFFERENTIAL | 4 | 1694558C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
