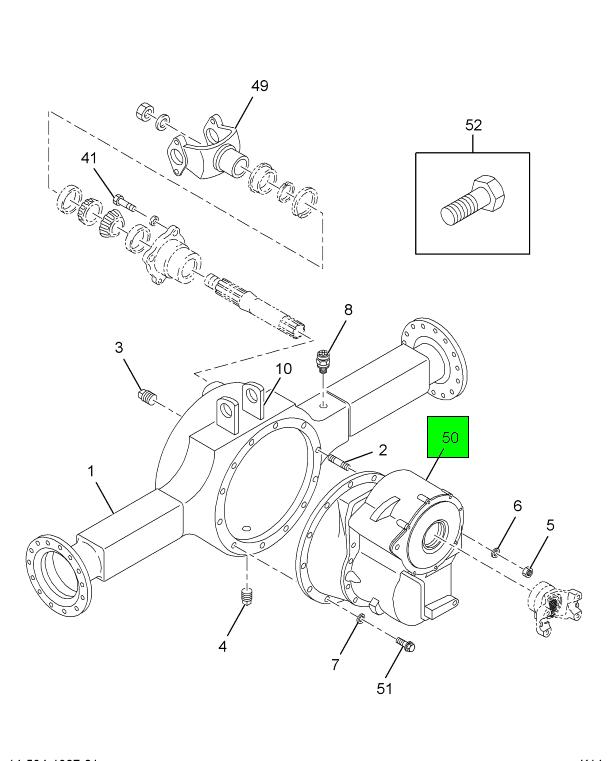

2504369C91
DIFFERENTIAL, REAR REAR 2.63:1
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$22,499.95
$26,999.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
022-003-000
OEM Description
DIFFERENTIAL, REAR REAR 2.63:1
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 452375C91 |
| CUP, BEARING | 2 | TMJM716610 |
| CUP, BEARING | 2 | FPJM716610 |
| BEARING, CUP | 1 | FPJLM710910 |
| ADJUSTER DIFFERENTIAL BEARING | 2 | 452381C1 |
| BOLT, ADJUSTING DRIVE GEAR | 1 | 881046C1 |
| NUT, HEXAGON | 1 | 1662661C1 |
| FITTING, SOCKET HEAD PLUG 3/4" NPT | 1 | 9409949 |
| CAGE, PINION FORWARD BEARING | 1 | 452397C91 |
| BEARING, CUP PINION | 2 | FP72487 |
| WASHER FLAT (DIFFERENTIAL) | 4 | 13611VA |
| WASHER, FLAT PINION SHAFT WITH NUT 3" O.D. X 1.78" I.D. X .19" THICK | 1 | 264663C1 |
| GEAR, HELICAL DRIVE DIFFERENTIAL | 1 | 2504359C1 |
| BEARING, CONE PINION | 2 | FP72212C |
| GEAR SET FRONT REAR DIFFERENTIAL 3.55:1 | 1 | 452382C91 |
| BEARING PINION | 1 | 1111341C91 |
| NUT, HEXAGON LOCK COMPANION FLANGE | 1 | 440302C1 |
| CASE, DIFFERENTIAL W/BOLTS | 1 | 493051C91 |
| BOLT, 3/4 X 4-3/4 PHC TYPE 8 | 4 | 25964R1 |
| BOLT 1/2" X 3 1/4" | 16 | 25285R1 |
| WASHER, FLAT CARRIER TO HOUSING | 16 | 213524R1 |
| SPIDER, DIFFERENTIAL | 1 | 72347R1 |
| GEAR, SIDE PINION INTERAXLE DIFFERENTIAL | 4 | 921249C1 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | 72335R1 |
| GEAR, SIDE DIFFERENTIAL 41 SPLINE 2 3/32" | 2 | 594110C1 |
| WASHER THRUST DIFFERENTIAL SIDE GEAR | 2 | 72346R1 |
| BEARING, CONE | 2 | FPJM716649 |
| PIN, DOWEL | 2 | 452405C1 |
| BOLT | 12 | 1111067C1 |
| NUT, LOCK 5/8" UNF | 12 | 9411658 |
| WASHER CARRIER TO HOUSING BOLT | 12 | 449671R1 |
| SHAFT, INPUT | 1 | 2504372C91 |
| KEY DRIVE GEAR | 1 | 2504373C1 |
| GEAR, HELICAL DRIVE | 1 | 2504374C1 |
| COVER HELICAL GEAR | 1 | 1676296C1 |
| GASKET | 1 | PTX51817 |
| GASKET | 1 | 549917C1 |
| COVER, PUMP HOLE | 1 | 2500790C1 |
| BOLT 5/16" X 3/4" | 4 | 25228R1 |
| WASHER, BOLT BEARING CAP | 4 | 483361C1 |
| COVER, OIL FILTER HOLE | 1 | 2500791C91 |
| BOLT 5/16" X 1 1/2" | 2 | 25654R1 |
| COVER, SHIFT HOLE | 1 | 2500792C1 |
| WASHER, SPECIAL | 4 | 1692843C1 |
| BOLT 1/4" X 1 1/4" | 4 | 25485R1 |
| BEARING, CONE | 1 | TMJLM710949C |
| BEARING, CONE | 1 | FPJLM710949 |
| BOLT, DRIVE GEAR BEARING COVER | 12 | 77013R1 |
| CUP, BEARING | 1 | FPJM511946 |
| CUP, BEARING | 1 | FPJM511910 |
| CARRIER, DIFFERENTIAL INPUT | 1 | 2504361C91 |
| SEAL, OIL OUTPUT SHAFT | 1 | 2502762C1 |
| BOLT, CAGE OUTPUT BEARING | 6 | 870325R1 |
| S PIN, DOWEL BEARING CAP | 4 | 73311R1 |
| RING, SNAP PINION GEAR BEARING | 1 | 91081R2 |
| BOLT 1/2" X 2 1/4" | 1 | 24865R1 |
| PIN, COTTER DIFFERENTIAL BEARING ADJUSTER LOCK | 2 | 683774R1 |
| WASHER, BOLT CARRIER TO HOUSING | 6 | 213319R1 |
| GASKET, RELIEF VALVE COVER | 1 | 452415C1 |
| WASHER, PINION SHAFT 2.38" O.D. X 1.53" I.D. X .12" THICK | 1 | 452436C1 |
| NUT, LOCK | 1 | 452403C1 |
| FLANGE, TRUNNION | 1 | 583095C91 |
CROSS REFERENCES
- MERITOR J363200R1032263
- MERITOR J363200R1032263
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
