2503455C91
DIFFERENTIAL ,F/R 5.86 14GRU SIDE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DIFFERENTIAL ,F/R 5.86 14GRU SD

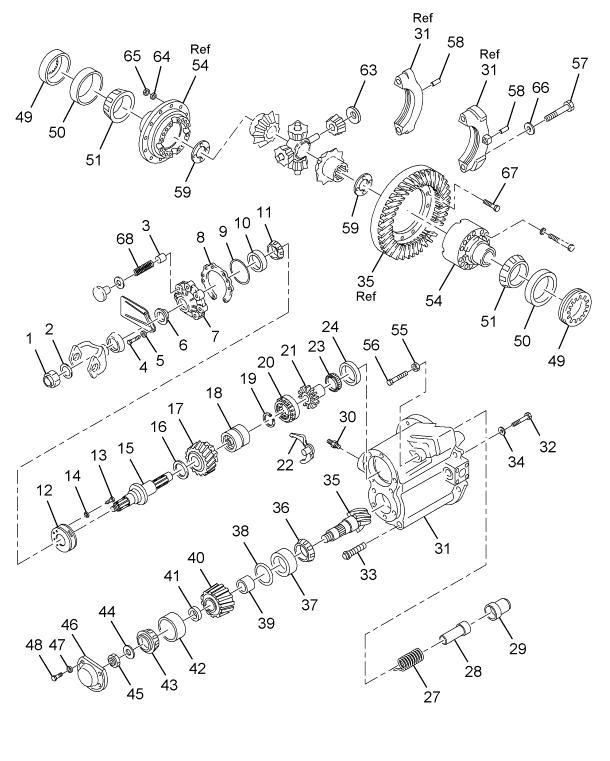

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| NUT, HEXAGON LOCK PINION | 1 | 1685173C1 |
| CUP, BEARING | 1 | FP3920 |
| BEARING, CONE INPUT SHAFT | 1 | TMJM511945 |
| BEARING, CONE INPUT SHAFT | 1 | FPJM511945 |
| PUMP, DIFFERENTIAL OIL | 1 | 1691772C1 |
| BOLT, CARRIAGE | 6 | 1670495C1 |
| WASHER, BOLT BEARING CAP | 6 | 483361C1 |
| SHAFT, INPUT INTERMEDIATE AXLE DIFFERENTIAL WITH NUT | 1 | 1696420C91 |
| WASHER HELICAL GEAR TO PIN GEA | 1 | 2594597C1 |
| WASHER HELICAL GEAR TO PIN GEA | 1 | 1670272C1 |
| GEAR, HELICAL DRIVE AND FORWARD SIDE | 1 | 1670532C1 |
| CASE, DIFFERENTIAL W/PINION GEARS BOLTED | 1 | 2503466C91 |
| CASE, DIFFERENTIAL W/GEAR SET BOLTED | 1 | 2503467C91 |
| RING, SNAP | 1 | 1670527C1 |
| WASHER, COMPANION FLANGE NUT | 1 | 1696377C1 |
| COLLAR, CLUTCH INTERMEDIATE AXLE DIFFERENTIAL | 1 | 2503468C1 |
| GEAR, SIDE INTERMEDIATE AXLE DIFFERENTIAL FRONT | 1 | 1670523C1 |
| YOKE, SHIFT INNER AXLE DIFFERENT | 1 | 1670490C91 |
| BEARING, CONE | 1 | TMJLM710949C |
| BEARING, CONE | 1 | FPJLM710949 |
| BEARING, CUP | 1 | FPJLM710910 |
| SPRING, AXLE SHIFT PUSH ROD | 1 | 867718R1 |
| SHAFT, SHIFT FORK LOCK | 1 | KIT2825 |
| SHAFT, SHIFT FORK LOCK | 1 | 1670295C1 |
| CYLINDER, SHIFT DIFFERENTIAL SHIFT | 1 | 1696962C91 |
| VALVE, RELIEF | 1 | 1685730C1 |
| ADAPTER LUBE FILTER | 1 | 1670526C1 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 2503474C91 |
| BOLT, INTERAXLE DIFFERENTIAL M10 X 45 MM | 8 | 1696237C1 |
| SCREW, THRUST DRIVE GEAR ADJUSTER | 1 | 1696803C1 |
| WASHER THRUST SCREW NUT | 1 | 1696804C1 |
| BOLT | 16 | 1685290C1 |
| SCREEN, OIL FILTER | 1 | 1670482C1 |
| GEAR SET, RING AND PINION DIFFERENTIAL 5.86:1 | 1 | 1670371C91 |
| BEARING, CONE PINION | 1 | FPH715334 |
| CUP, BEARING PINION | 1 | FPH715311 |
| SPACER, HELICAL GEAR BEARING | 1 | 1670502C1 |
| BOLT, CARRIER 12MM X 45MM L | 7 | MS2120452 |
| BOLT, CARRIER 12MM X 45MM L | 7 | 1696018C1 |
| GEAR, HELICAL DRIVE | 1 | 1670531C1 |
| BEARING, CUP PINION | 1 | FP72487 |
| BEARING, CONE PINION | 1 | FP72212C |
| WASHER, FLAT PINION SHAFT WITH NUT 3" O.D. X 1.78" I.D. X .19" THICK | 1 | 264663C1 |
| COVER, BEARING CAGE DRIVE PIN GEAR | 1 | 1670299C1 |
| WASHER, FLAT M10 | 5 | 1658423C1 |
| BOLT, PINION BEARING CAGE M10 X 45MM | 5 | 1696229C1 |
| ADJUSTER DIFFERENTIAL BEARING LEFT AND RIGHT | 2 | 1670522C1 |
| WASHER, FLAT | 16 | 2500348C1 |
| CUP, BEARING | 2 | TMJM716610 |
| CUP, BEARING | 2 | FPJM716610 |
| BEARING, CONE | 2 | FPJM716649 |
| CASE, DIFFERENTIAL 4.33 AND 7.17 RATIO | 1 | 1696808C91 |
| NUT, SHIFTER SHAFT POWER DIVIDER LOCK | 1 | 1696227C1 |
| BOLT | 1 | 1670304C1 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 4 | 1696376C1 |
| PIN, COTTER DIFFERENTIAL BEARING ADJUSTER LOCK | 2 | 683774R1 |
| WASHER, THRUST SIDE GEAR | 2 | 1696379C1 |
| SEAL, OIL INPUT SHAFT | 1 | 2502761C1 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | 72335R1 |
| WASHER CARRIER TO HOUSING BOLT | 12 | 449671R1 |
| NUT, HEXAGON LOCK METRIC | 12 | 1691622C1 |
| WASHER, FLAT BEARING CAP | 4 | 1670535C1 |
| BOLT, DRIVE GEAR | 12 | 1670534C1 |
| SPRING, INPUT SHAFT THRUST | 1 | 1670524C1 |
| CARRIER, DIFFERENTIAL INPUT SHAFT W/CUP | 1 | 1696421C91 |
| O-RING | 2 | 1670307C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
