$38.95
$46.74
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description

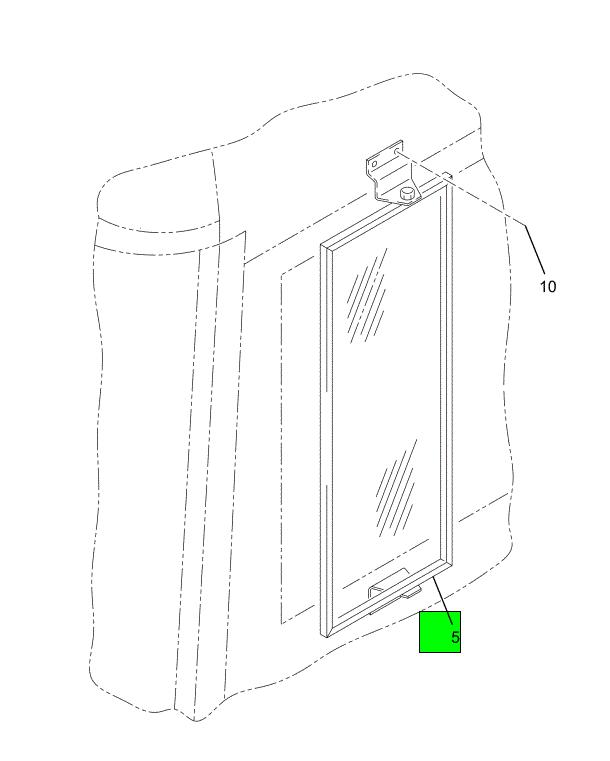

WINDOW, DRVR ASSY VENT

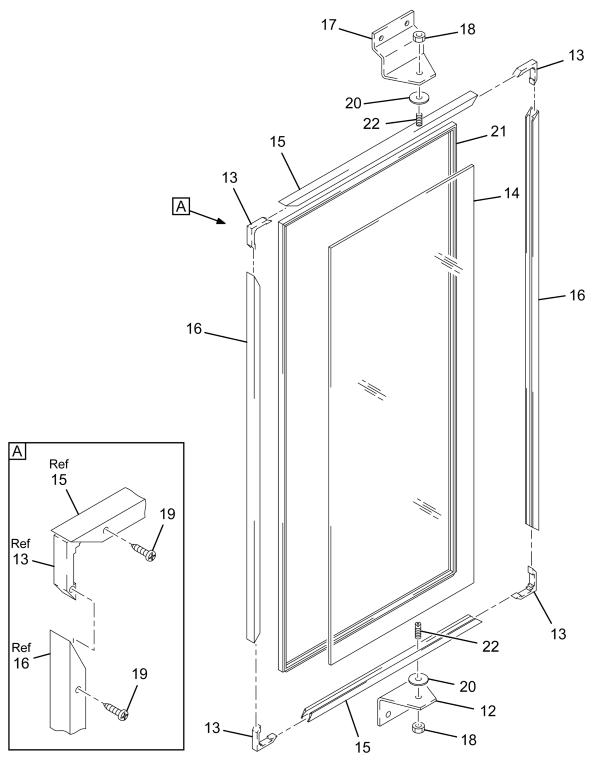

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BRACKET, MOUNTING BOTTOM DRIVER VENT WINDOW | 1 | 1529100 |
| LOCK, VENT WINDOW CORNER | 4 | 417919001 |
| GLASS, CLEAR DRIVERS VENT WINDOW | 1 | 437646001 |
| RAIL, HORIZONTAL DRIVERS VENT WINDOW FR | 2 | 439092001 |
| RAIL, LOOSE 30 3/4" | 2 | 4854011 |
| BRACKET, MOUNTING UPPER DRIVER VENT WINDOW | 1 | 6408100 |
| NUT, LOCK FIBER PLATED 1/4" UNC | 2 | 24468R1 |
| NUT, LOCK FIBER PLATED 1/4" UNC | 2 | 90900500 |
| SCREW, PAN HEAD TYPE AB #6 X 3/8" | 8 | 91300200 |
| WASHER, FIBER RED 1/4" X 7/8" | 2 | 91400600 |
| SEAL, GLASS "U" CHANNEL | 65 | 90200700 |
| BOLT DRIVERS WIND WING PIVOT | 2 | 1528000 |
