2233880C92

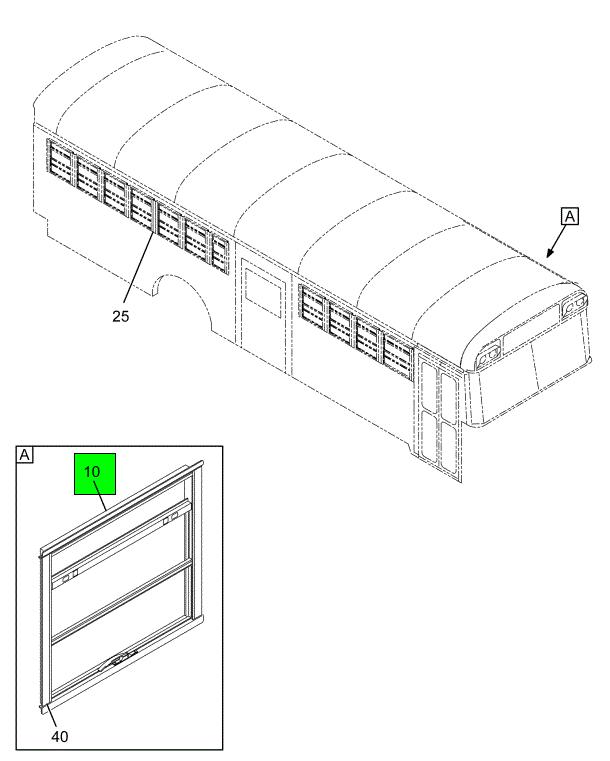

WINDOW, STORM ASSEMBLY 27IN W/12IN OPN ALUMINUM TEMPERATURE CLEAR
IC Bus
BACK ORDERED
Please contact us for information on lead time
$919.95
$1,103.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
WINDOW, STORM ASSEMBLY 27IN W/12IN OPN ALUMINUM TEMPERATURE CLEAR
Weight
23.001 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, WINDOW BOTTOM FIXED EXTRUDED ALUMINUM | 1 | 2205204C5 |
| FR, WINDOW HORIZONTAL EXTRUDED ALUMINUM | 4 | 2205083C3 |
| FR, WINDOW VERTICAL EXTRUDED ALUMINUM | 4 | 2205087C3 |
| SCREW 1" | 12 | 2209431C1 |
| CHANNEL, STORM GLAZING WINDOW 27" | 2 | 2219800C1 |
| LOCK, CORNER STORM WINDOW | 8 | 2205162C2 |
| SCREW TYPE AB QUADREX | 8 | 436161001 |
| EXTRUSION, ALUMINUM WINDOW FIXED FR SIDE L ALUMINUM | 1 | 2234060C1 |
| EXTRUSION, ALUMINUM WINDOW FIXED FR SIDE R ALUMINUM | 1 | 2234061C1 |
| FR, WINDOW MIDDLE FIXED EXTRUDED ALUMINUM | 1 | 2205220C3 |
| FR, WINDOW TOP FIXED EXTRUDED ALUMINUM | 1 | 2205212C3 |
| EXTRUSION, ALUMINUM WINDOW SLIDING FR TOP AL STANDARD | 1 | 2234044C1 |
| FR, WINDOW SLIDING WINDOW SIDE | 2 | 2205452C2 |
| FR, WINDOW BOTTOM SLIDING EXTRUDED ALUMINUM | 1 | 2205228C3 |
| GLASS, CLEAR TEMPERED STORM WINDOW | 2 | 2205070C3 |
