3741537C91
SEAT, LEFT HAND, 35 FAMILY 4LEG W/USR BELTS 42 PREVAIL GY
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,799.95
$2,159.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, LEFT HAND, 35 FAMILY 4LEG W/USR BELTS 42 PREVAIL GY

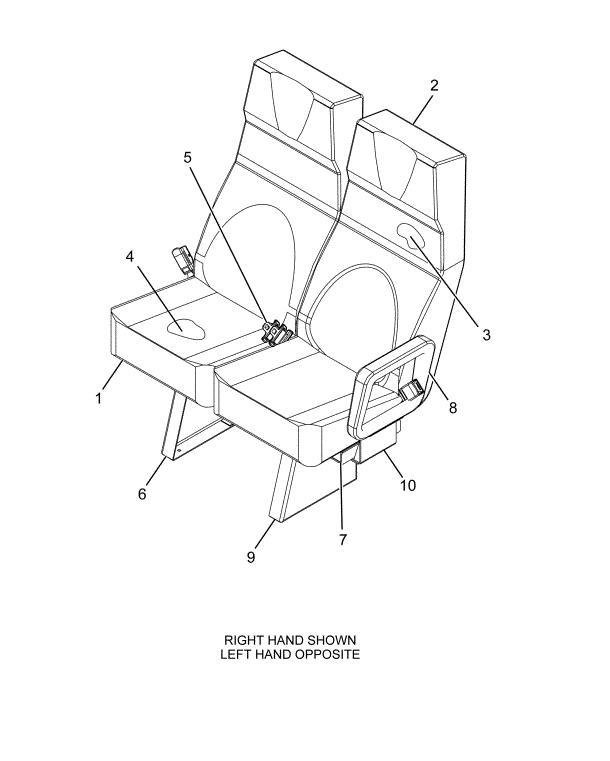

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERY, CUSHION, 42OZ GRAY | 1 | 2511980C91 |
| BRACKET, ARMREST | 1 | 2511985C1 |
| UPHOLSTRY, SEAT BACK, 42OZ GRAY | 1 | 2511981C91 |
| FOAM SEAT BACK | 1 | 2606146C1 |
| FOAM SEAT CUSHION | 1 | 2606147C1 |
| BELT ASSEMBLY SEAT W/HDW | 1 | 2511984C91 |
| LEG, SEAT CURB SIDE | 1 | 2585221C1 |
| FR ASSEMBLY SEAT 2- LEG | 1 | 2586511C1 |
| ARM DOHENY | 1 | 2589346C1 |
| LEG, SEAT | 1 | 2585217C1 |
