3725767C91

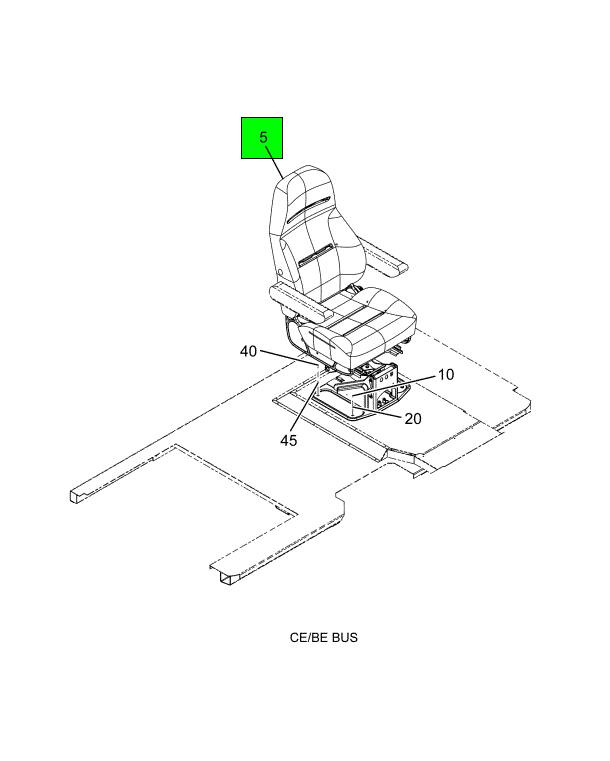

SEAT DRIVER 52OZ BLUE VINYL 2SHOCK W/INSERT
IC Bus
BACK ORDERED
Please contact us for information on lead time
$539.95
$647.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
016-003-000
OEM Description
SEAT DRIVER 52OZ BLUE VINYL 2SHOCK W/INSERT

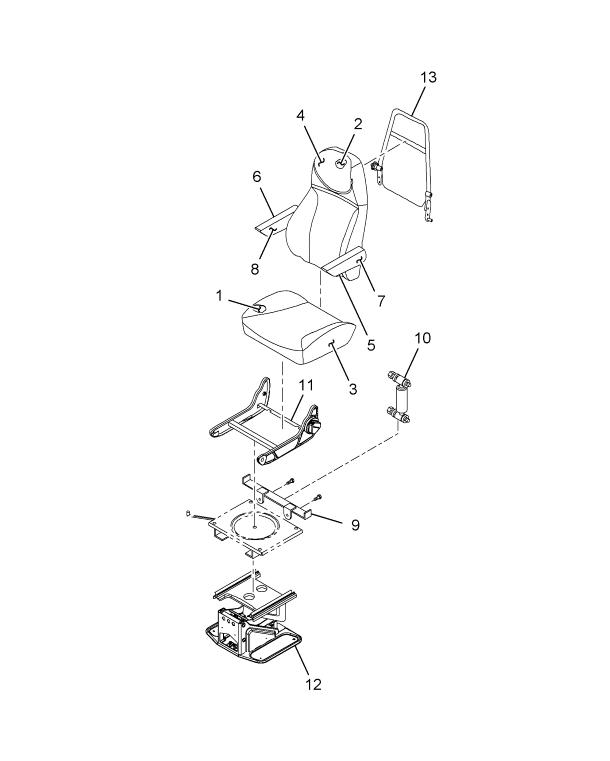

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR LOWER CUSHION | 1 | 2588531C1 |
| BASE, DRIVERS SEAT | 1 | 2587141C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2505877C1 |
| ARMREST DRIVER NATIONAL BLUE LEFT HAND 52OZ | 1 | 2608170C91 |
| ARMREST DRIVER NATIONAL BLUE LEFT HAND 52OZ | 1 | 2205404C1 |
| ARMREST DRIVER NATIONAL BLUE RIGHT HAND 52OZ | 1 | 2608171C91 |
| ARMREST DRIVER NATIONAL BLUE RIGHT HAND 52OZ | 1 | 2205429C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
CROSS REFERENCES
- NATL ST 50401.70A003
- NATL ST 50401.70A003
