3618230C91
SEAT DRVR 42OZ BLUE VINYL 2SH
IC Bus
BACK ORDERED
Please contact us for information on lead time
$539.95
$647.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT,, DRVR 42OZ BLUE VINYL 2S

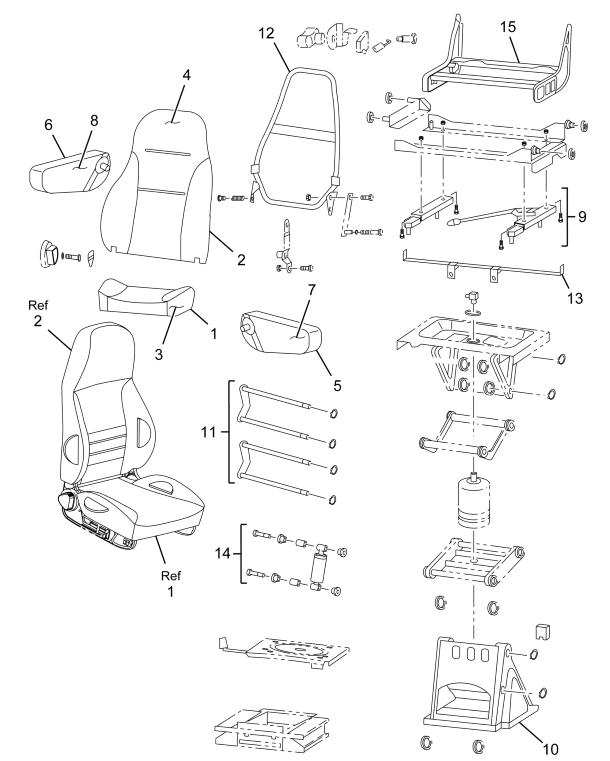

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT W/UPHOLSTERY | 1 | 2587058C91 |
| BASE, DRIVERS SEAT | 1 | 2587141C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2505877C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR LOWER CUSHION | 1 | 2588531C1 |
| CUSHION, SEAT BACK W/UPHOLSTERY | 1 | 2587140C91 |
| UPHOLSTERY DRIVERS SEAT CUSHION | 1 | 2587060C1 |
| UPHOLSTERY DRIVERS SEAT BACK | 1 | 2587061C1 |
| ARMREST DRIVER NATIONAL BLUE LEFT HAND 42OZ | 1 | 2205399C1 |
| ARMREST DRIVER NATIONALIONAL RIGHT HAND 42OZ | 1 | 2205424C1 |
| UPHOLSTERY LEFT HAND ARMREST | 1 | 2587062C1 |
| UPHOLSTERY RIGHT HAND ARMREST | 1 | 2587063C1 |
| KIT, REPAIR SEAT CUSHION FRONT | 1 | 2595024C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
