3598652C1
SEAT NATNL AIR 42OZ BURGVINYL
IC Bus
BACK ORDERED
Please contact us for information on lead time
$369.95
$443.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT BURGANDY VINYL (NATIONAL)

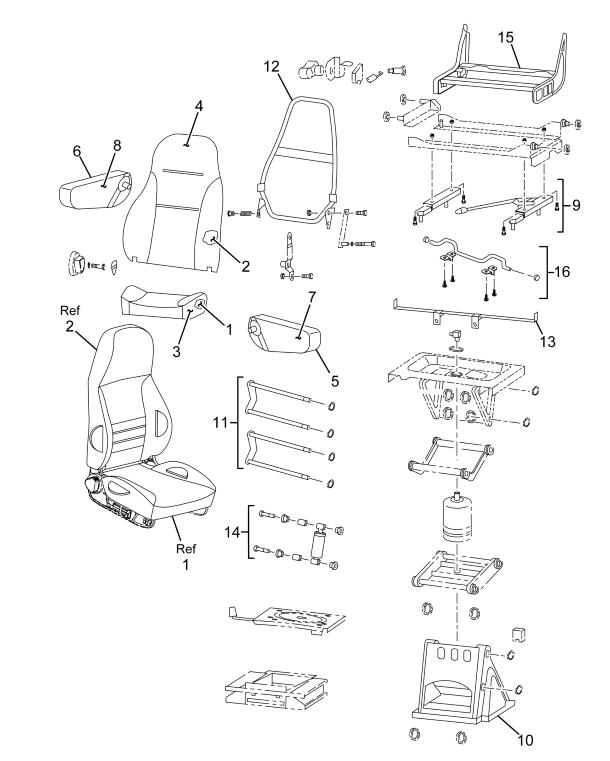

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PEDESTAL, SEAT | 1 | 2505907C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2505877C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR LOWER CUSHION | 1 | 2588531C1 |
| ARMREST DRIVER LEFT HAND W/UPHOLESTRY | 1 | 2588656C1 |
| ARMREST DRIVER NATIONALIONAL RIGHT HAND 42OZ | 1 | 2210416C1 |
| SUPPORT, FLEX-O-LATOR | 1 | 1660400C1 |
