2241472C92
SEAT, BUS BODY, DRIVER NATL HTD PREM BLACK CLOTH W/R AR
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,749.95
$2,099.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, BUS BODY, DRIVER NATL HTD PREM BLACK CLOTH W/R AR
Weight
96.8 lbs

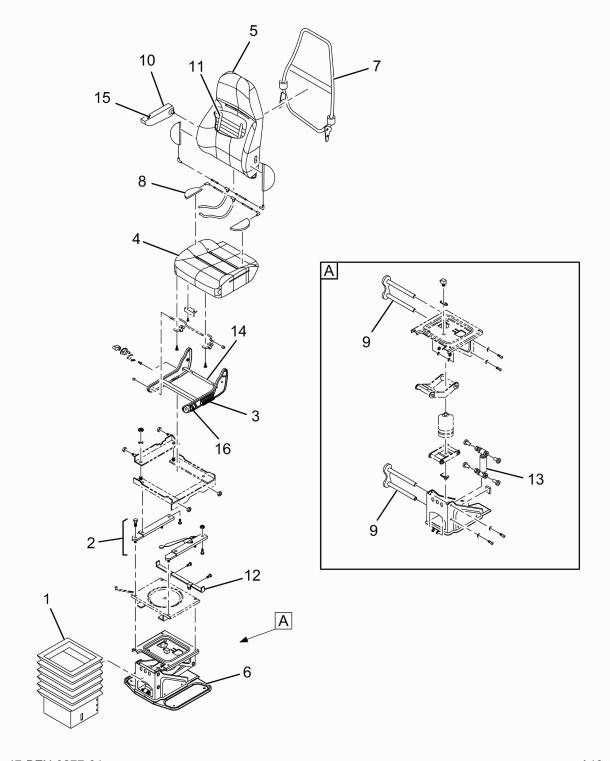

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| COVER, ARMREST, BLACK MORDURA, RIGHT HAND | 1 | 2519176C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FRAME, LOWER CUSHION | 1 | 2515064C1 |
| UPHOLSTERED ARMREST RIGHT HAND ASSEMBLY BLACK MORDURA | 1 | 2607101C1 |
| UPHOLSTERED ARMREST RIGHT HAND ASSEMBLY BLACK MORDURA | 1 | 2519168C91 |
| KIT, SEAT HEATER | 1 | 2590764C91 |
| MANIFOLD, SEAT SIX BUTTON | 1 | 2505474C1 |
| CUSHION, ASM, DRIVERS SEAT, BL | 1 | 2515059C91 |
| UPHOLSTERY SEAT CUSHION DRIVE | 1 | 2604951C1 |
| BACK, ASM, DRIVERS SEAT, BLACK | 1 | 2515062C91 |
| UPHOLSTERY SEAT BACK DRIVER* | 1 | 2604953C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| FR, BACK FR | 1 | 2515948C1 |
| KIT, AIR LUMBAR SEAT | 1 | 2509416C91 |
