2241472C91
W/R Seat Driver Natl Heated Prem Black Cloth As Required
Navistar International®
DISCONTINUED
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT DRIVER NATL HTD PREM BLACK CLOTH W/R AR

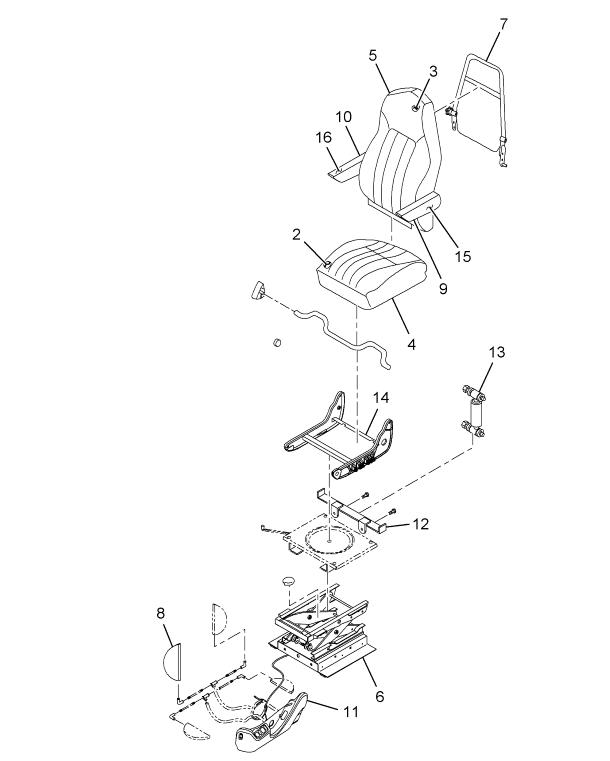

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| REST ARM RIGHT HAND | 1 | 2607101C1 |
| MANIFOLD, SEAT SIX BUTTON | 1 | 2505474C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FRAME, LOWER CUSHION | 1 | 2515064C1 |
| COVER ARMREST | 1 | 2607103C1 |
| COVER, ARMREST RIGHT HAND | 1 | 2607104C1 |
| FOAM, SEAT CUSHION | 1 | 2515056C1 |
| FOAM, SEAT BACK | 1 | 2515057C1 |
| CUSHION, ASM, DRIVERS SEAT, BL | 1 | 2515059C91 |
| UPHOLSTERY SEAT CUSHION DRIVE | 1 | 2604951C1 |
| UPHOLSTERY SEAT BACK DRIVER* | 1 | 2604953C1 |
| BACK, ASM, DRIVERS SEAT, BLACK | 1 | 2515062C91 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| SEAT BACK | 1 | NS23619023 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| REST ARM | 1 | 2607100C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
