2241174C91
SEAT DRIVER NATL PREM BLUE CLOTH N/R ARMREST
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,049.95
$1,259.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT DRIVER NATL PREM BLUE CLOTH N/R ARMREST

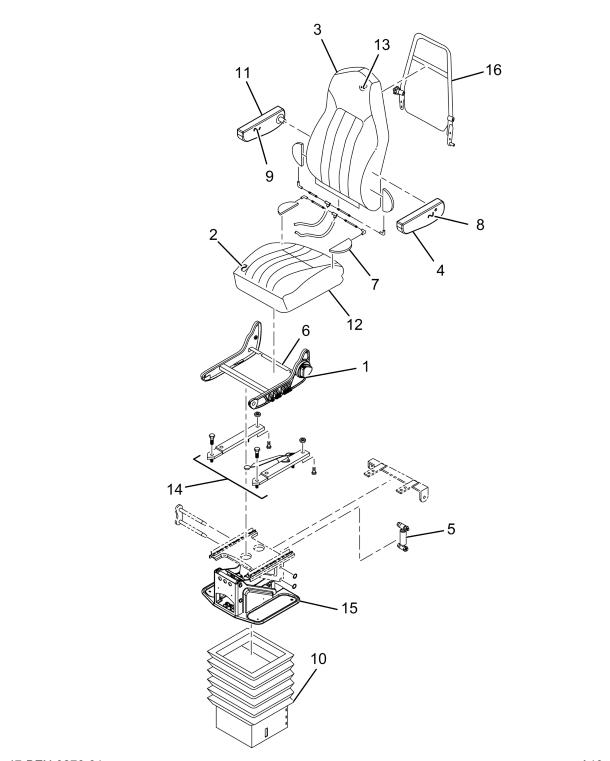

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| MANIFOLD, SEAT SIX BUTTON | 1 | 2505474C1 |
| KIT, VALVE | 1 | 2596539C1 |
| KIT, SEAT RISER BELLOWS | 1 | 2505472C91 |
| REST, ARM ASM, RH BLUE | 1 | 2515066C1 |
| CUSHION, ASM, DRIVERS SEAT, BL | 1 | 2515058C91 |
| FOAM, SEAT BACK | 1 | 2515057C1 |
| BACK, ASM, DRIVERS SEAT, BLUE | 1 | 2515061C91 |
| KIT, SEAT ADJUSTER TRACK | 1 | 2501703C91 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| SEAT BACK | 1 | NS23619023 |
| FOAM, SEAT CUSHION | 1 | 2515056C1 |
| UPHOLSTERY, DRIVERS SEAT CUSHI | 1 | 2515067C1 |
| UPHOLSTERY, DRIVERS SEAT BACK, | 1 | 2515068C1 |
| REST, ARM ASM, LH BLUE | 1 | 2515065C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, CUSHION LOWER | 1 | 2596538C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| UPHOLSTERY, DRIVERS ARM REST L | 1 | 2515069C1 |
| PLATE, END VACUUM PUMP REAR | 1 | 250588C91 |
| UPHOLSTERY, DRIVERS ARM REST R | 1 | 2515070C1 |
