2241033C92

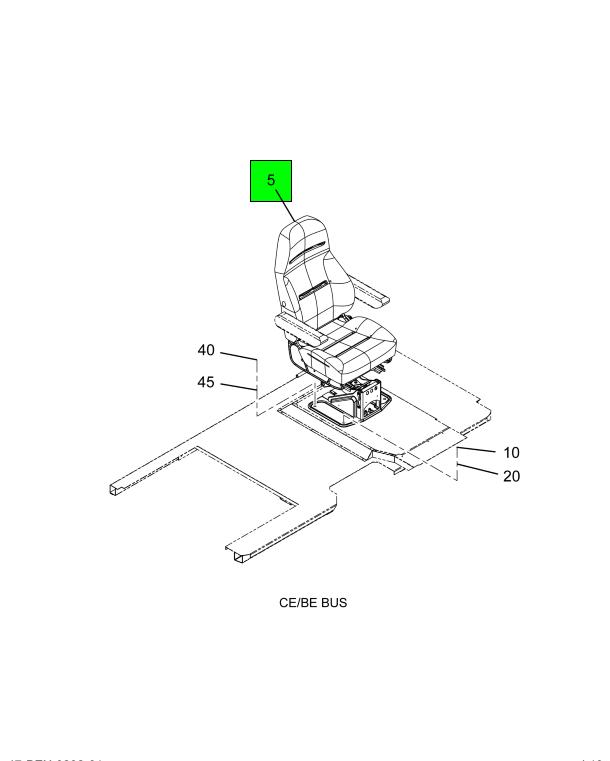

SEAT, BUS BODY, DRIVER NATL HTD PREM GRAY CLOTH N/R AR
IC Bus
BACK ORDERED
Please contact us for information on lead time
$1,249.95
$1,499.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, BUS BODY, DRIVER NATL HTD PREM GRAY CLOTH N/R AR

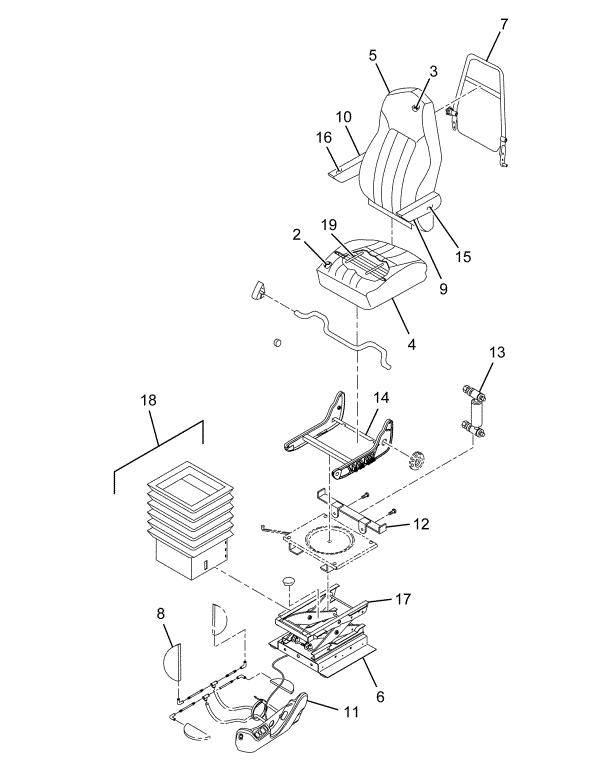

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| REST ARM RIGHT HAND | 1 | 2606875C1 |
| MANIFOLD, SEAT SIX BUTTON | 1 | 2505474C1 |
| KIT, VALVE | 1 | 2596539C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FRAME, LOWER CUSHION | 1 | 2515064C1 |
| COVER, ARMREST LH | 1 | 2606876C1 |
| COVER ARMREST RIGHT HAND | 1 | 2606877C1 |
| KIT, SEAT ADJUSTER TRACK | 1 | 2501703C91 |
| KIT, SEAT RISER BELLOWS | 1 | 2505472C91 |
| HEATER, SEAT | 1 | 2518223C91 |
| FOAM, SEAT CUSHION | 1 | 2515056C1 |
| FOAM, SEAT BACK | 1 | 2515057C1 |
| CUSHION, ASM, DRIVERS SEAT, GR | 1 | 2515060C91 |
| UPHOLSTERY SEAT CUSHION DRIVER | 1 | 2596534C1 |
| UPHOLSTERY SEAT BACK DRIVER | 1 | 2596536C1 |
| BACK, ASM, DRIVERS SEAT, GRAY | 1 | 2515063C91 |
| KIT, SHAFT SEAT WITH BUSHING | 1 | 1660393C91 |
| SEAT BACK | 1 | NS23619023 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| REST, ARM LH | 1 | 2607773C1 |
| REST, ARM LH | 1 | 2606874C1 |
