2240464C91
SEAT, LEFT HAND, 39 GEN4 LAP 42VNL BL 6LG TRUCK ICS N/LATCH
IC Bus
BACK ORDERED
Please contact us for information on lead time
$819.95
$983.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, LEFT HAND, 39 GEN4 LAP 42VNL BL 6LG TRUCK ICS N/LATCH

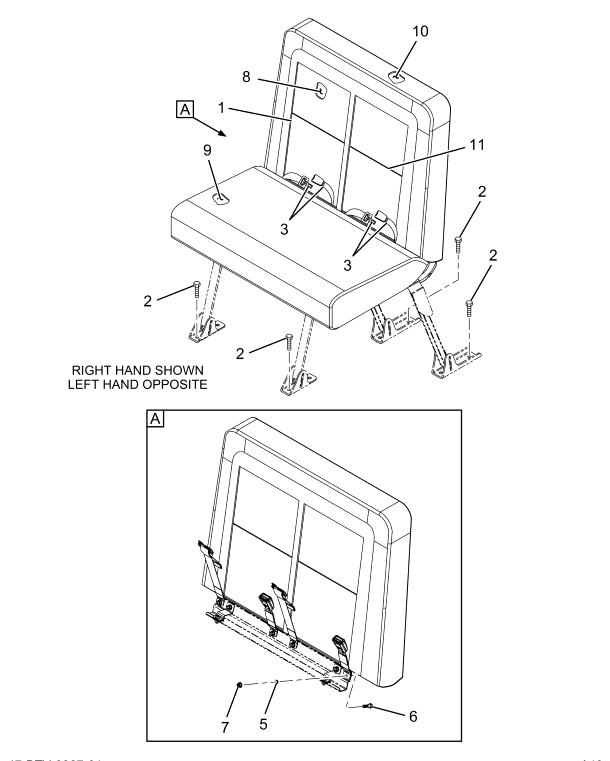

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| IMMI 36-39IN GEN 4 INNER SEAT PANEL W/J-HOOK W/CHILD SEAT, NO LATCH OR 3PT PREVAIL BLUE | 1 | ZBIM726390060FTCNLN3PT |
| IMMI 39IN GEN 4 X-CHANGE SEAT OUTER BACK PREVAIL BLUE FITS 210 SEAT | 1 | ZBIM720390060BK |
| IMMI 39 GEN 4 X-CHANGE SEAT CUSHION PREVAIL BLUE | 1 | ZBIM620390060 |
| FOAM, SEAT BACK, OUTER, 39IN | 1 | 2510316C1 |
| PAD, ICS POCKET ASM, BLUE | 2 | 2515756C91 |
| BOLT, 7/16-20 2.75, HEX | 6 | 2515760C1 |
| BELT, LAP, BTI, TAN | 1 | 2511009C1 |
| BELT, LAP, BTI, RED | 1 | 2511008C1 |
| WASHER, TOOTH LOCK | 6 | 2515759C1 |
| BOLT, 7/16-20, HEX | 6 | 2515758C1 |
| NUT, 7/16-20, HEX | 6 | 2515757C1 |
| FOAM, SEAT BACK, INNER, 39IN | 1 | 2515094C1 |
| FOAM, SEAT CUSHION | 1 | 2511577C1 |
